4035A7-0409-E1 - Briggs & Stratton Vertical Engine Camshaft, Crankshaft, Cylinder, Gasket Set - Engine, Piston, Rings, Connecting Rod Parts Diagram

Vertical Engine

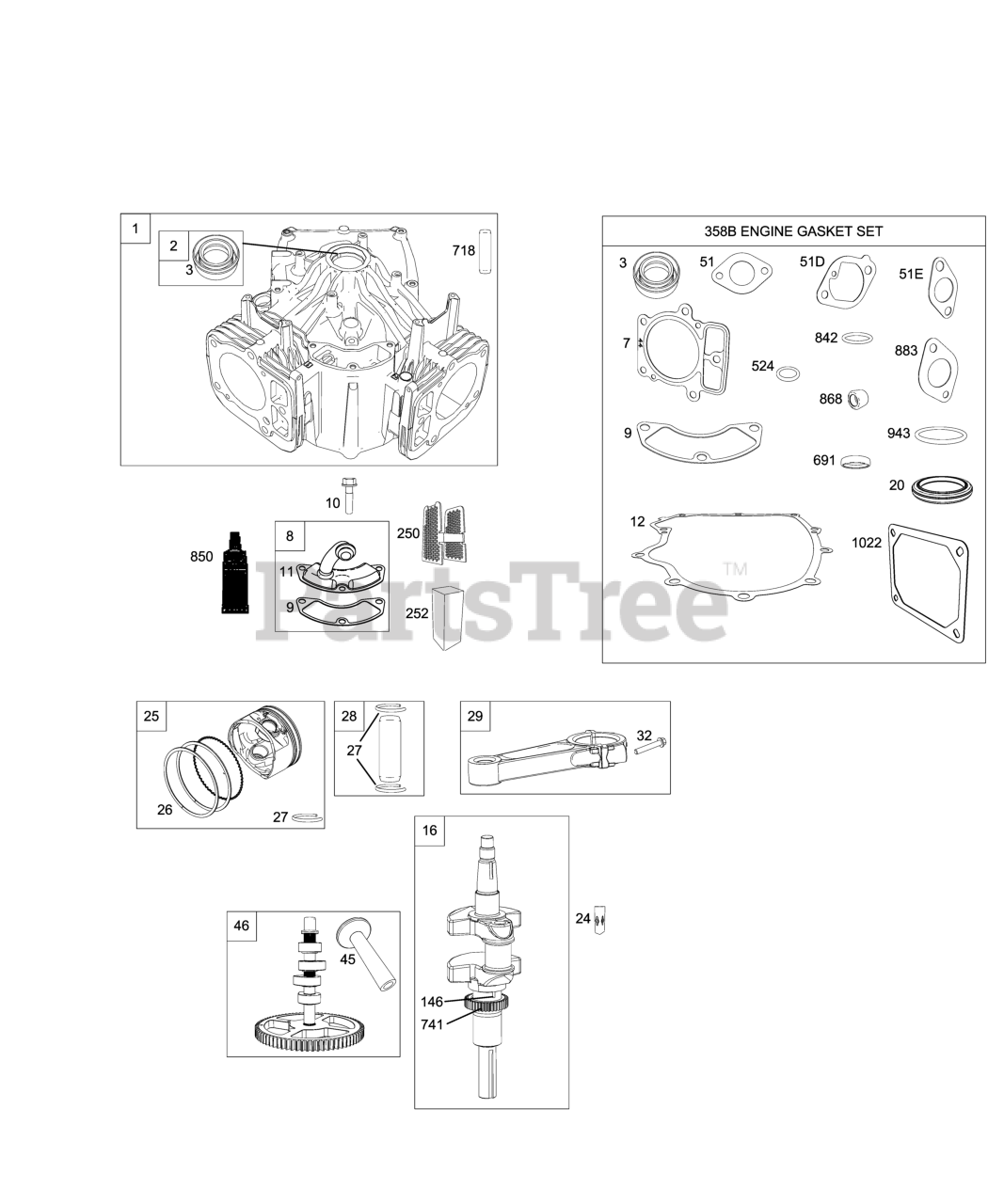

Camshaft, Crankshaft, Cylinder, Gasket Set - Engine, Piston, Rings, Connecting Rod Parts Diagram

  • Title

1

Briggs & Stratton 699751

Cylinder Assembly
(Superseded to 594969)

Note: Used Before Code Date 07071000

$418.99

$

In Stock, only 1 left!

0

1

Briggs & Stratton 795118

Cylinder Assembly
(Superseded to 594969)

Note: Used After Code Date 07070900

$418.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 499585

Kit-Bushing/Seal
(Superseded to 797673)

Note: (Magneto Side)

$19.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 19

0

4A

Briggs & Stratton 699752

Sump-Engine

$

$

Not available

8

Briggs & Stratton 792185

Breather Assembly

$

$

Not available

9

Briggs & Stratton 690937

Gasket-Breather

$8.99

$

In Stock, Qty 7

0

10

Briggs & Stratton 691108

SCREW

Note: (Breather Assembly)

$3.49

$

In Stock, Qty 10

0

11

Briggs & Stratton 792184

Tube-Breather

$14.99

$

In Stock, Qty 7

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

$39.99

$

Usually ships in 2-12 days

0

15A

Briggs & Stratton 690946

PLUG, Oil Drain

$6.49

$

In Stock, only 4 left!

0

16

Briggs & Stratton 699700

Crankshaft
(Superseded to 595707)

$

$

Not available

20

Briggs & Stratton 791892

Seal-Oil
(Superseded to 795387)

Note: (PTO Side)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 694966

SCREW

Note: (Crankcase Cover/Sump)

$5.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 793648

PISTON ASSEMBLY

Note: (.020 Oversize) Used After Code Date 06082300

$175.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 793647

PISTON ASSEMBLY

Note: (Standard) Used After Code Date 06082300

$150.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 499588

Piston Assembly
(Superseded to 793647)

Note: (Standard) Used Before Code Date 06082400

$150.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 791792

SET, Ring

Note: (.020 Oversize) Used After Code Date 06082300

$50.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499604

Ring Set

Note: (Standard) Used Before Code Date 06082400

$63.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499606

Ring Set

Note: (.020 Oversize) Used Before Code Date 06082400

$

$

Not available

26

Briggs & Stratton 791787

SET, Ring

Note: (Standard) Used After Code Date 06082300

$42.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 690975

LOCK, Piston Pin

$4.49

$

In Stock, Qty 18

0

28

Briggs & Stratton 690229

Pin-Piston

Note: (Standard)

$19.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 699699

Rod-Connecting
(Superseded to 796209)

Note: (Standard)

$20.99

$

In Stock, Qty 8

0

32

Briggs & Stratton 690976

SCREW

Note: (Connecting Rod)

$4.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690977

TAPPET, Valve

$8.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 790562

CAMSHAFT
(Superseded to 797242)

$134.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, only 2 left!

0

250

Briggs & Stratton 690957

Retainer-Breather

$7.99

$

In Stock, Qty 13

0

252

Briggs & Stratton 794389

Collector-Oil

$

$

Not available

287

Briggs & Stratton 691108

SCREW

Note: (Dipstick Tube)

$3.49

$

In Stock, Qty 10

0

415

Briggs & Stratton 690283

Plug
(Superseded to 794903)

$5.99

$

In Stock, Qty 8

0

523

Briggs & Stratton 691036

Dipstick
(Superseded to 594528)

$20.99

$

In Stock, only 2 left!

0

524

Briggs & Stratton 691032

SEAL, O-Ring

$5.99

$

In Stock, Qty 10

0

525

Briggs & Stratton 691037

TUBE, Dipstick
(Superseded to 597129)

$23.99

$

In Stock, only 2 left!

0

552

Briggs & Stratton 690552

Bushing-Governor Crank

$8.99

$

In Stock, Qty 6

0

691

Briggs & Stratton 790574

SEAL, Governor Shaft

$6.49

$

In Stock, Qty 7

0

710

Briggs & Stratton 697474

Cover-Oil Filter

$

$

Not available

718

Briggs & Stratton 690959

PIN, Locating

$7.49

$

In Stock, only 2 left!

0

741

Briggs & Stratton 690980

GEAR, Timing

$16.99

$

In Stock, only 2 left!

0

750

Briggs & Stratton 696999

Screw

Note: (Oil Pump Cover)

$31.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.99

$

In Stock, only 1 left!

0

847

Briggs & Stratton 499602

Dipstick/Tube Assembly
(Superseded to 594609)

$52.99

$

In Stock, only 2 left!

0

943

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Oil Pump Cover)

$9.49

$

In Stock, Qty 9

0

965

Briggs & Stratton 499613

COVER, Oil Pump

$14.99

$

In Stock, only 2 left!

0

1017

Briggs & Stratton 690770

Screen-Oil Pump

$

$

Not available

1024

Briggs & Stratton 499054

Pump-Oil
(Superseded to 794644)

$38.99

$

In Stock, only 2 left!

0

1035

Briggs & Stratton 691042

Shaft-Pump
(Superseded to 794644)

$38.99

$

In Stock, only 2 left!

0

1058

Briggs & Stratton 276245

Operator's Manual
(Superseded to 276352)

$

$

Not available

1280

Briggs & Stratton 697475

Seal-O Ring

Note: (Oil Filter Cover)

$7.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 273521

Repair Manual

$

$

Not available
