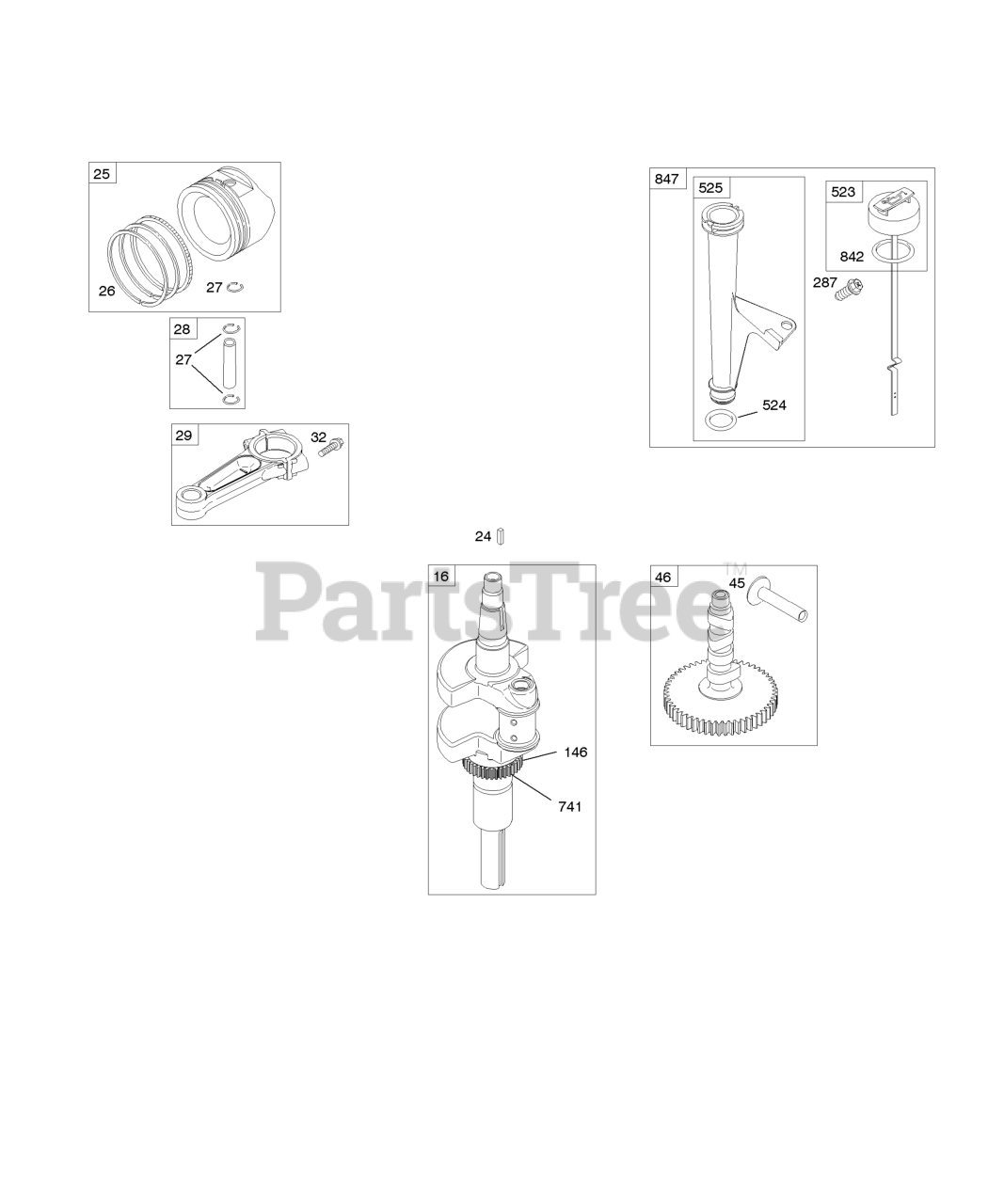

403677-0343-E1 - Briggs & Stratton Vertical Engine > Parts Diagrams (8) > Camshaft, Crankshaft, Lubrication, Piston, Rings, Connecting Rod

  • Title
699700

16

Crankshaft

Part# 699700 (Superseded to 796237)

OEM Warranty Repair Part for Briggs & Stratton

Not available

222698S

24

KEY, Flywheel

Part# 222698S

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.24

499588

25

Piston Assembly

Part# 499588 (Superseded to 793647)

Note: (Standard)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $109.14

499590

25

Piston Assembly

Part# 499590 (Superseded to 793648)

Note: (.020" Oversize)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $105.41

499604

26

Ring Set

Part# 499604

Note: (Standard)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $49.58

499606

26

Ring Set

Part# 499606

Note: (.020" Oversize)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $49.58

690975

27

LOCK, Piston Pin

Part# 690975

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.09

690229

28

Pin-Piston

Part# 690229

Note: (Standard)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $12.43

699699

29

Rod-Connecting

Part# 699699 (Superseded to 796209)

Note: (Standard)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $49.58

690976

32

SCREW

Part# 690976

Note: (Connecting Rod)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.15

690977

45

TAPPET, Valve

Part# 690977

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $6.60

790562

46

CAMSHAFT

Part# 790562

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $93.04

690979

146

KEY, Woodruff

Part# 690979

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.46

691108

287

SCREW

Part# 691108

Note: (Dipstick Tube)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.40

691036

523

Dipstick

Part# 691036 (Superseded to 594528)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $15.28

691032

524

SEAL, O-Ring

Part# 691032

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.73

691037

525

TUBE, Dipstick

Part# 691037

OEM Warranty Repair Part for Briggs & Stratton

Not available

690980

741

GEAR, Timing

Part# 690980

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $11.55

691031

842

SEAL, O-Ring

Part# 691031

Note: (Dipstick Tube)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.47

499602

847

Dipstick/Tube Assembly

Part# 499602 (Superseded to 594609)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $37.22
