40373x68A - Murray 40" Lawn Tractor (2001) Drive Assembly Parts Diagram

40" Lawn Tractor

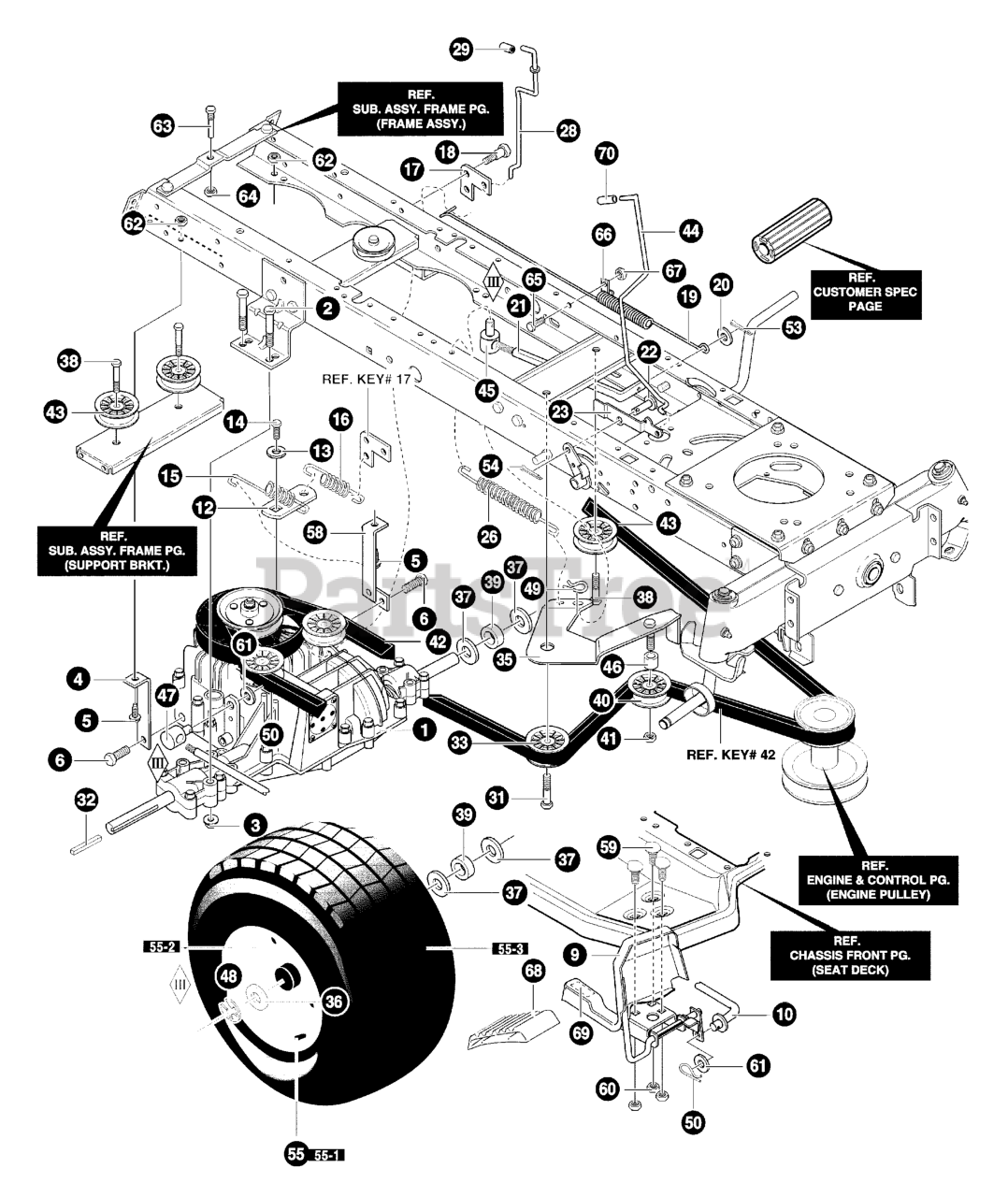

Drive Assembly Parts Diagram

  • Title

1

Transaxle, Peerless Hydro **

Note: (MST206-512A)

$

$

Not available

2

Murray 711669

SCREW, 5/16-18 x 2.50

$1.99

$

Usually ships in 2-12 days

0

3

Murray 711634MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

4

Murray 94224-853

STABILIZER BRACKET

$

$

Currently unavailable

5

Murray 711893

SCREW, 5/16-18 x 1.00

$

$

Currently unavailable

6

Murray 710268

SCREW, 5/16-18 x 0.75

$12.99

$

In Stock, Qty 5

0

9

Murray 690134-853

PEDAL ASSY. HYDRO

$

$

Currently unavailable

10

Murray 690018

ROD, FOOT CONTROL

$22.99

$

Usually ships in 2-12 days

0

12

Murray 323212

BRKT, SHIFT

$2.99

$

Usually ships in 2-12 days

0

13

Murray 711895

WASHER, TRANSAXLE

$

$

Currently unavailable

14

Murray 01X145MA

SCREW, 1/4-28X.750

$4.49

$

Usually ships in 2-12 days

0

15

Murray 94622MA

SPRING - TRANSAXLE

$4.49

$

Usually ships in 2-12 days

0

16

Murray 326780MA

SPRING

$3.99

$

Usually ships in 2-12 days

0

17

Murray 94621-853

BRACKET, DISCONNECT LEVER

$

$

Currently unavailable

18

Murray 711896

BOLT, HHSH 5/16-18

$

$

Currently unavailable

19

Murray 95424

SPRING, BRAKE

$4.99

$

Usually ships in 2-12 days

0

20

Murray 711921

WASHER, FLAT

$

$

Currently unavailable

21

Murray 690016

ROD, CLUTCH

$78.99

$

Usually ships in 2-12 days

0

22

Murray 711903

PIN, CLEVIS

$

$

Currently unavailable

23

Murray 95290

ZINC LATCH, PARK BRAKE

$3.99

$

Usually ships in 2-12 days

0

26

Murray 711522

SPRING, TENSION

$26.99

$

Usually ships in 2-12 days

0

28

Murray 690015

ROD, DISCONNECT CONTROL

$33.99

$

Usually ships in 2-12 days

0

29

Murray 690032

GRIP, HYDRO DISCONNECT
(Superseded to 695157)

$18.99

$

In Stock, Qty 10

0

31

Murray 711905MA

SCREW, 3/8-16 x 1.25

$3.99

$

Usually ships in 2-12 days

0

32

Murray 52928MA

KEY, SQUARE

$1.99

$

Usually ships in 2-12 days

0

33

Murray 1001065MA

PULLEY, IDLER V4L

$31.99

$

Usually ships in 2-12 days

0

35

Murray 94238-848

ASSY., IDLER ARM TRACTION

$

$

Currently unavailable

36

Murray 711758

WASHER, FLAT

$26.99

$

In Stock, only 1 left!

0

37

Murray 711904

WASHER, FLAT .755ID

$

$

Currently unavailable

38

Murray 711905MA

SCREW, 3/8-16 x 1.25

$3.99

$

Usually ships in 2-12 days

0

39

Murray 95274MA

SPACER .87X1.78

$46.99

$

Usually ships in 2-12 days

0

40

Murray 690409MA

PULLEY, IDLER 2.75 DIA

$19.99

$

In Stock, only 3 left!

0

41

Murray 711920MA

NUT, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

42

Murray 94609MA

BELT, V4L 112.75

$39.99

$

Usually ships in 2-12 days

0

43

Murray 1001065MA

PULLEY, IDLER

$31.99

$

Usually ships in 2-12 days

0

44

Murray 690047

PARK BRAKE CONTROL ROD
(Superseded to 699672)

$199.99

$

Usually ships in 2-12 days

0

45

Murray 690369MA

SPACER 1/2 TO 17MM

$5.99

$

In Stock, only 4 left!

0

46

Murray 690027

ROD, SHIFT

$10.99

$

Usually ships in 2-12 days

0

47

Murray 711594

ADJUST NUT 1/2-13

$2.99

$

Usually ships in 2-12 days

0

48

Murray 0011X3MA

E-RING

$5.49

$

In Stock, Qty 17

0

49

Murray 711659

PIN, HAIR

$1.99

$

Usually ships in 2-12 days

0

50

Murray 711676

PIN, HAIR

$

$

Currently unavailable

53

Murray 071081

COTTER PIN

$3.49

$

Usually ships in 2-12 days

0

54

Murray 071081

COTTER PIN

$3.49

$

Usually ships in 2-12 days

0

55

Murray 692290

TIRE & RIM ASSY

$

$

Currently unavailable

55-1

Murray 338512

VALVE STEM

$

$

Not available

55-2

Murray 338524

RIM

$

$

Currently unavailable

55-3

Murray 338526

TIRE 20X8X8

$

$

Currently unavailable

58

Murray 94225-853

ASM., BRACKET STABILIZER

$

$

Currently unavailable

59

Murray 711688MA

BOLT, 5/16-18X.75 CARR.

$3.49

$

Usually ships in 2-12 days

0

60

Murray 710026

NUT, 5/16-18 HEX

$

$

Not available

61

Murray 711894

WASHER, FLAT

$

$

Currently unavailable

62

Murray 710026

NUT, 5/16-18X.75

$

$

Not available

63

Murray 711745

SCREW GUIDE

$

$

Currently unavailable

64

Murray 710026

NUT, 5/16-18

$

$

Not available

65

Murray 313686MA

SCREW, 1/4-20X.50

$3.99

$

In Stock, only 2 left!

0

66

Murray 711742

WIRE RETAINER

$18.99

$

Usually ships in 2-12 days

0

67

Murray 780285MA

NUT, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

68

Murray 093248

PEDAL, PAD SANDPAPER

$

$

Currently unavailable

69

Murray 093249

PAD, TOE SANDPAPER

$3.49

$

Usually ships in 2-12 days

0

70

Murray 335980

CAP, DUMP VALVE ROD

$

$

Currently unavailable
