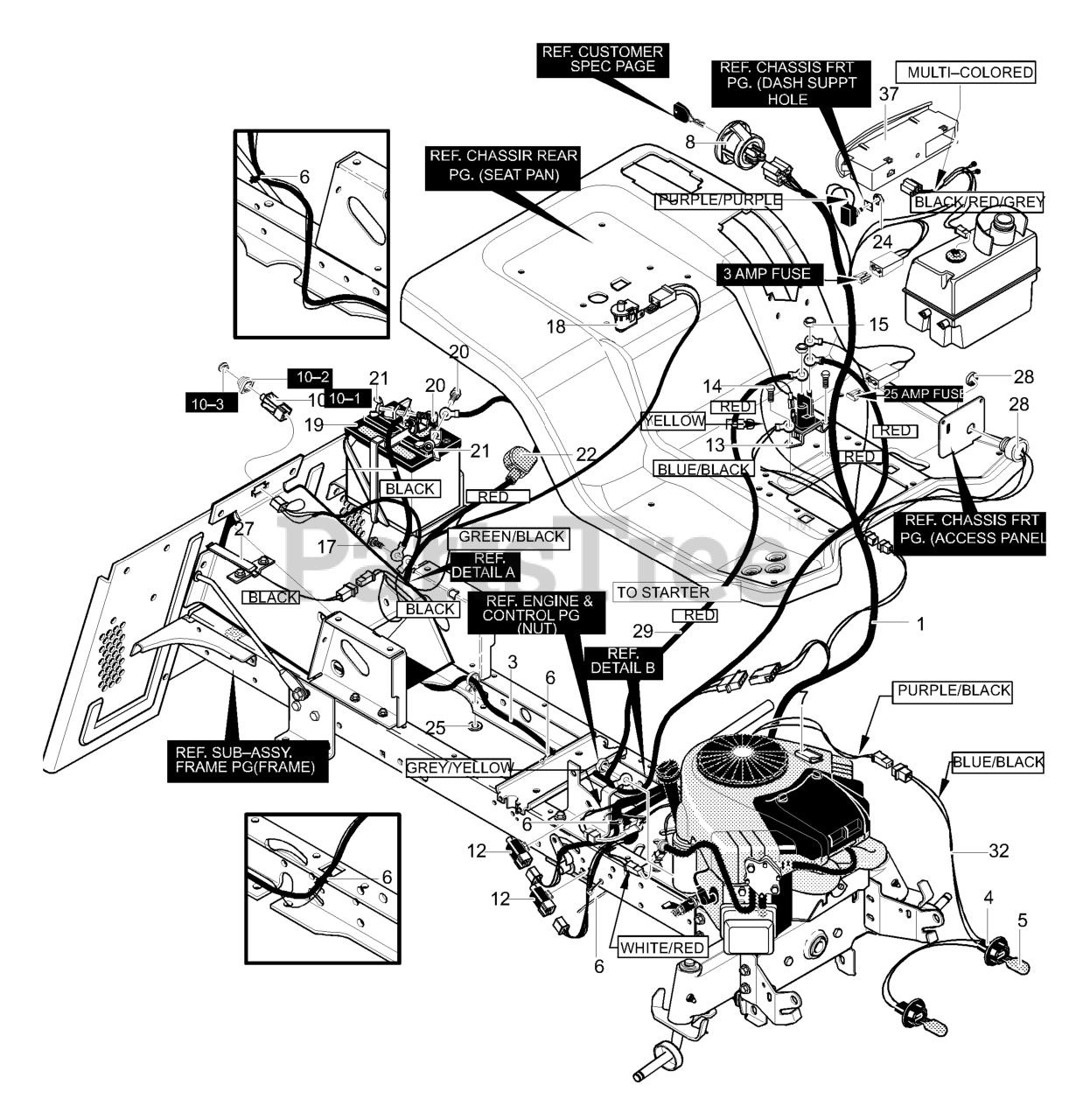

40378x11B - Murray 40" Lawn Tractor (2000) Electrical Assembly Parts Diagram

40" Lawn Tractor

Electrical Assembly Parts Diagram

  • Title
1

Murray MU95379

Wire Harness

$

$

Currently unavailable

3

Murray MU95381

Rear Harness

$

$

Currently unavailable

4

Murray MU92372

Socket, Lamp

$

$

Currently unavailable

5

Murray MU90084

Bulb, Light

$

$

Currently unavailable

6

Murray MU57444

Cable Tie

$

$

Currently unavailable

7

Murray MU55939

Wire Clip, Adhesive

$

$

Currently unavailable

8

Murray MU94762

Switch, Ignition

$

$

Currently unavailable

10

Murray MU690106

ASSEMBLY, Switch Double Pole Delta

$

$

Currently unavailable

10-1

Murray MU320082

Switch, Double

$

$

Currently unavailable

10-2

Murray MU690074

Boot, Switch

$

$

Currently unavailable

10-3

Murray MU690075

Switch Cap

$

$

Currently unavailable

12

Murray MU94136

Switch, Limit

$

$

Currently unavailable

13

Murray MU94613

Solenoid

$

$

Currently unavailable

14

Murray MU711619

SCREW 1/4x.50

$

$

Currently unavailable

15

Murray MU711632

NUT, 1/4-20

$

$

Currently unavailable

16

Murray MU95420

Ground Wire

$

$

Currently unavailable

17

Murray MU711619

SCREW, 1/4x.50

$

$

Currently unavailable

18

Murray MU94159

Seat Switch

$

$

Currently unavailable

19

Murray MU92693

Battery 6 Plate

$

$

Currently unavailable

20

Murray MU711680

BOLT, 1/4-20x.63

$

$

Currently unavailable

21

Murray MU711636

Wing Nut

$

$

Currently unavailable

22

Murray MU335417

Boot, Battery

$

$

Currently unavailable

24

Murray MU711376

NUT, Plastic

$

$

Currently unavailable

25

Murray MU711666

WASHER, Flat

$

$

Currently unavailable

27

Murray MU95330

Tape Switch

$

$

Currently unavailable

28

Murray MU95391

Buzzer, For Bag Full

$

$

Currently unavailable

29

Murray MU711579

Wire, Lead Solenoid to Starter

$

$

Currently unavailable

32

Murray MU340513

Wire Harness Headlights

$

$

Currently unavailable

37

Murray MU94522

Elect. Diagnostic

$

$

Currently unavailable

--

Murray MU302031

15 Amp Fuse

$

$

Currently unavailable
