40379x68A - Murray 40" Lawn Tractor (2001) Engine And Control Assembly (part 1) Parts Diagram

40" Lawn Tractor

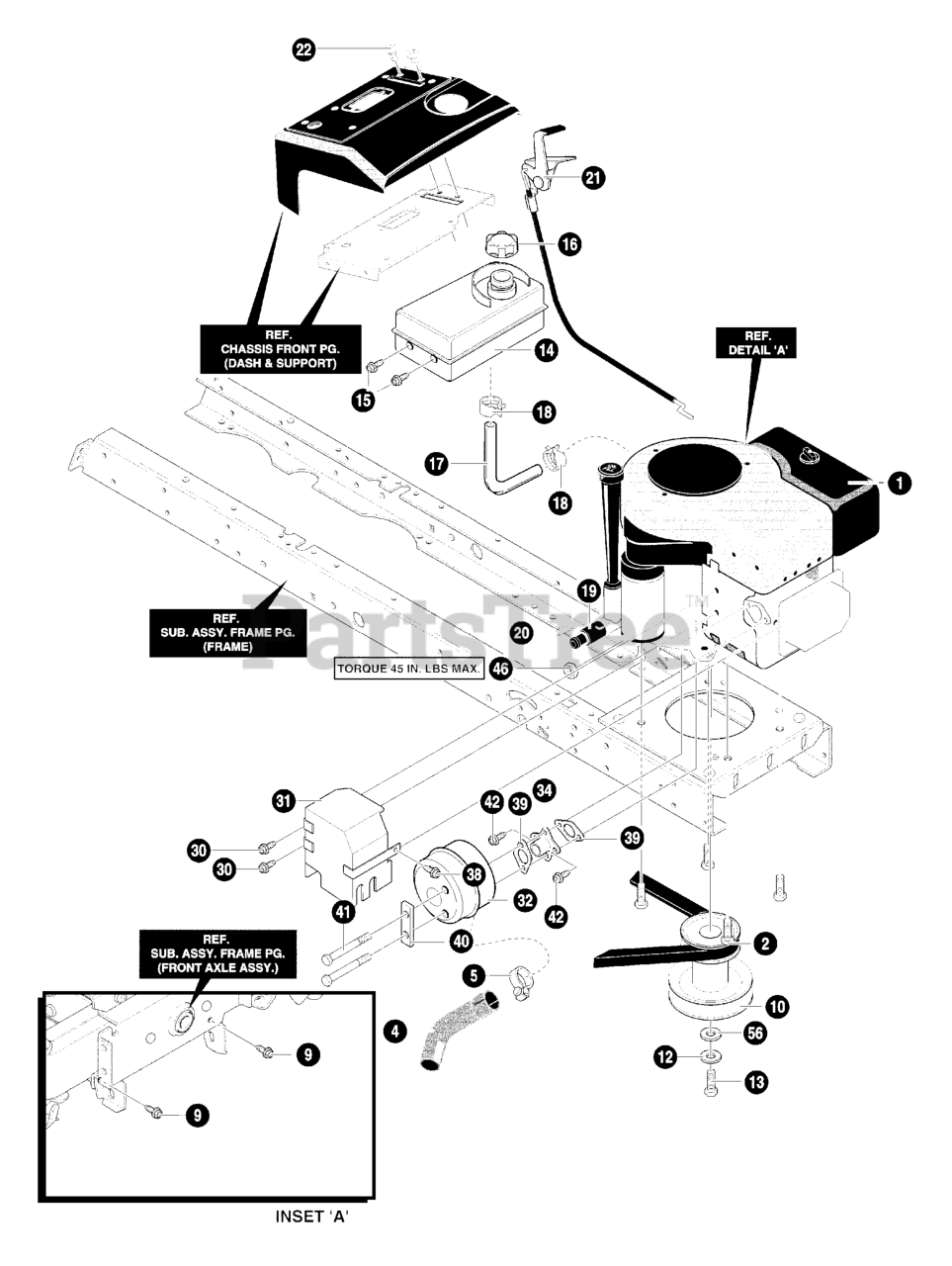

Engine And Control Assembly (part 1) Parts Diagram

  • Title

1

16.5HP ENGINE

$

$

Not available

2

Murray 0025X7MA

BOLT
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

4

Murray 092855

PIPE, EXHAUST

$

$

Not available

5

Murray 092558MA

CLAMP ASSEMBLY

$

$

Not available

9

Murray 711606MA

SCREW

$7.99

$

In Stock, only 2 left!

0

10

Murray 690456MA

STACK PULLEY ASSY.

$193.99

$

Usually ships in 2-12 days

0

12

Murray 120383

WASHER

$

$

Not available

13

Murray 01X169

SCREW

$3.49

$

In Stock, only 1 left!

0

14

Murray 094086

FUEL TANK

$170.99

$

In Stock, only 3 left!

0

15

Murray 711681

SCREW

$1.99

$

Usually ships in 2-12 days

0

16

Murray 092317MA

FUEL CAP

$10.99

$

In Stock, Qty 12

0

17

Murray 50118

TUBING, GAS

$

$

Currently unavailable

18

Murray 336890

CLAMP, FUEL LINE

$

$

Currently unavailable

19

Murray 325547MA

OIL DRAIN VALVE ASSEMBLY

$

$

Not available

20

Murray 327422

CAP, OIL DRAIN VALVE ASSY

$

$

Not available

21

Murray 94361

THROTTLE CONTROL

$8.99

$

Usually ships in 2-12 days

0

22

Murray 711637

SCREW

$

$

Currently unavailable

30

Murray 712099

SCREW

$

$

Currently unavailable

31

Murray 094324

HEAT SHIELD ASSY.

$

$

Currently unavailable

31-1

Murray 95037

SHIELD HEAT

$

$

Currently unavailable

31-2

Murray 46763

RIVET POP
(Superseded to 5046763)

$116.99

$

Usually ships in 2-12 days

0

31-3

Murray 92554

BRACKET, HEAT SHIELD RT

$

$

Currently unavailable

31-4

Murray 92555

BRACKET, HEAT SHIELD LH

$3.99

$

Usually ships in 2-12 days

0

31-5

Murray 92552

PLATE, HEAT SHIELD

$

$

Currently unavailable

32

Murray 095206

MUFFLER, ROUND

$

$

Currently unavailable

34

Murray 095207MA

MUFFLER ADAPTER
(Superseded to 796002)

$43.99

$

In Stock, Qty 6

0

38

Murray 711642MA

SCREW, 1/4-20X.63
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

39

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

40

Murray 092378MA

BRACKET, LOCK

$5.49

$

In Stock, Qty 9

0

41

Murray 712100MA

BOLT, 5/15-18X3.58

$1.99

$

Usually ships in 2-12 days

0

42

Murray 06X103MA

SCREW, 5/16-18 x 0.625

$6.49

$

Usually ships in 2-12 days

0

46

Murray 711601

NUT, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

56

Murray 711668

WASHER, FLAT

$

$

Not available
