40379x88 - Murray 40" Lawn Tractor (2000) Console & Hood Parts Diagram

40" Lawn Tractor

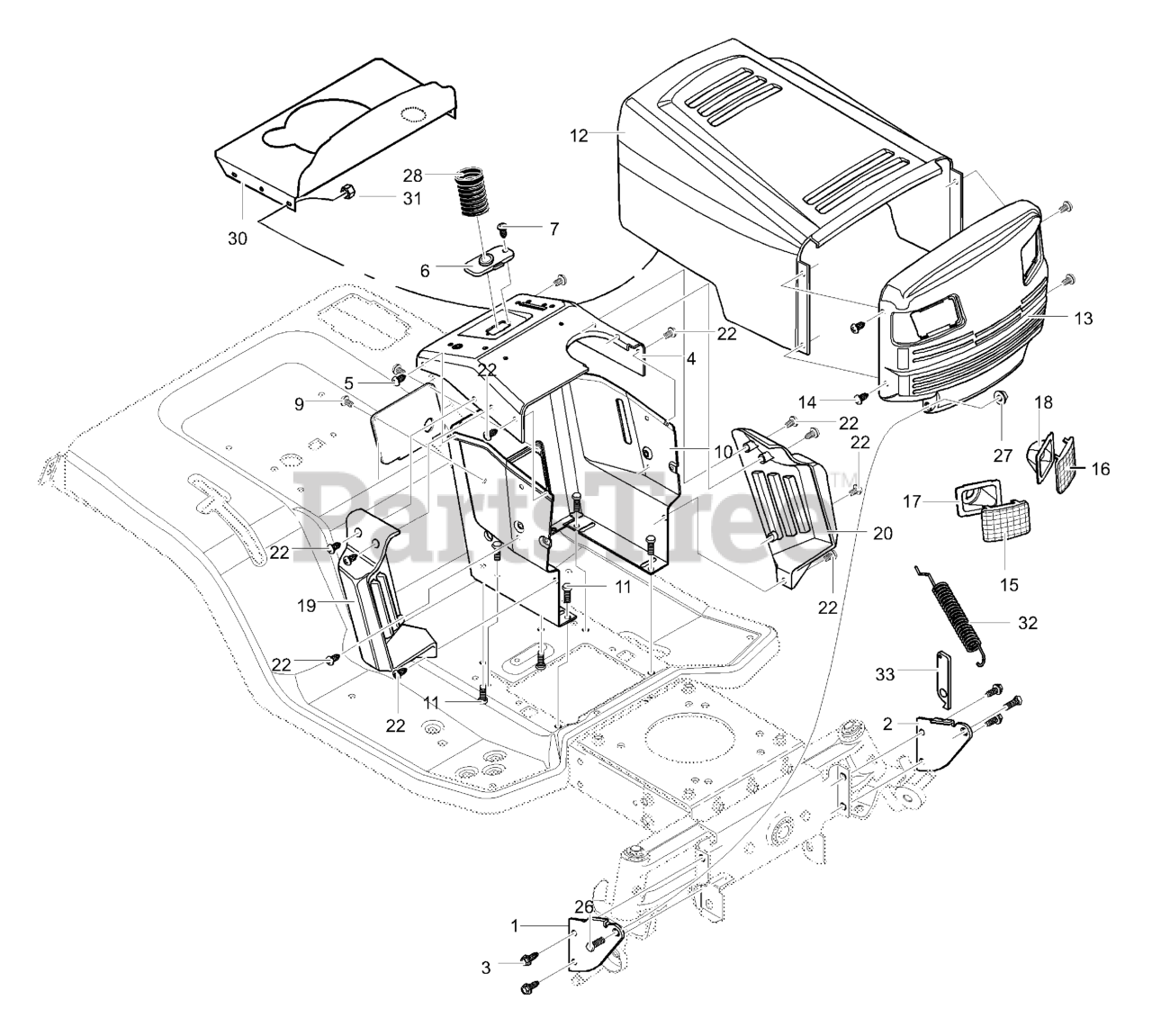

Console & Hood Parts Diagram

  • Title

1

Murray 94084-853

SUPPORT, GRILLE RH

$

$

Currently unavailable

2

Murray 94085-853

SUPPORT, GRILLE LH

$

$

Currently unavailable

3

Murray 711606MA

SCREW, 5/16-18 x .75 HHWATAPSGIBP

$7.99

$

In Stock, only 2 left!

0

4

Murray 94590-848

DASH

$

$

Currently unavailable

5

Murray 711629

SCREW, 10-24X.500TRSEG

$

$

Not available

6

Murray 094075

STEERING BRACKET

$

$

Currently unavailable

7

Murray 711592

SCREW, 1/4-20X.50WAHHTAP

$335.99

$

Usually ships in 2-12 days

0

8

Murray 95366-848

PANEL, ACCESS W/BUZZER

$

$

Currently unavailable

9

Murray 711629

SCREW, 10-24X.500TRSEG

$

$

Not available

10

Murray 95318-848

DASH SUPPORT

$

$

Currently unavailable

11

Murray 711606MA

SCREW, 5/16-18 x .75 HHWATAPSGIBP

$7.99

$

In Stock, only 2 left!

0

12

Murray 94322-848

HOOD

$

$

Currently unavailable

13

Murray 94087-848

GRILLE

$43.99

$

Usually ships in 2-12 days

0

14

Murray 711629

SCREW, 10-24X.500TRSEG

$

$

Not available

15

Murray 094092MA

LENS, TWIN RH

$8.49

$

In Stock, only 1 left!

0

16

Murray 094093MA

LENS, TWIN LH

$8.49

$

In Stock, only 1 left!

0

17

Murray 94088

REFLECTOR, RH

$14.99

$

Usually ships in 2-12 days

0

18

Murray 94089

REFLECTOR, LH

$13.99

$

Usually ships in 2-12 days

0

19

Murray 095217MA

PANEL, SIDE RH

$38.99

$

Usually ships in 2-12 days

0

20

Murray 095218MA

PANEL, SIDE LH

$38.99

$

Usually ships in 2-12 days

0

22

Murray 711629

SCREW, 10-24X.500TRSEG

$

$

Not available

26

Murray 711611

BOLT, SHOULDER .375

$1.49

$

Usually ships in 2-12 days

0

27

Murray 711622

NUT, 3/8-16 HWDFLLK MACK

$

$

Currently unavailable

28

Murray 092059MA

BELLOWS-STEERING POST

$9.49

$

Usually ships in 2-12 days

0

29

Murray 318197

PAD, ADHESIVE

$1.99

$

Usually ships in 2-12 days

0

30

Murray 94113-848

PLENUM

$

$

Currently unavailable

31

Murray 711632

NUT, 1/4-20 HEXNYL

$

$

Currently unavailable

32

Murray 165X124MA

SPRING, EXT. 5.13LG

$7.99

$

Usually ships in 2-12 days

0

33

Murray 690606

BRACKET, HOOD

$142.99

$

Usually ships in 2-12 days

0
