40382x58 - Murray 40" Lawn Tractor (1999) Engine & Control Assembly Parts Diagram

40" Lawn Tractor

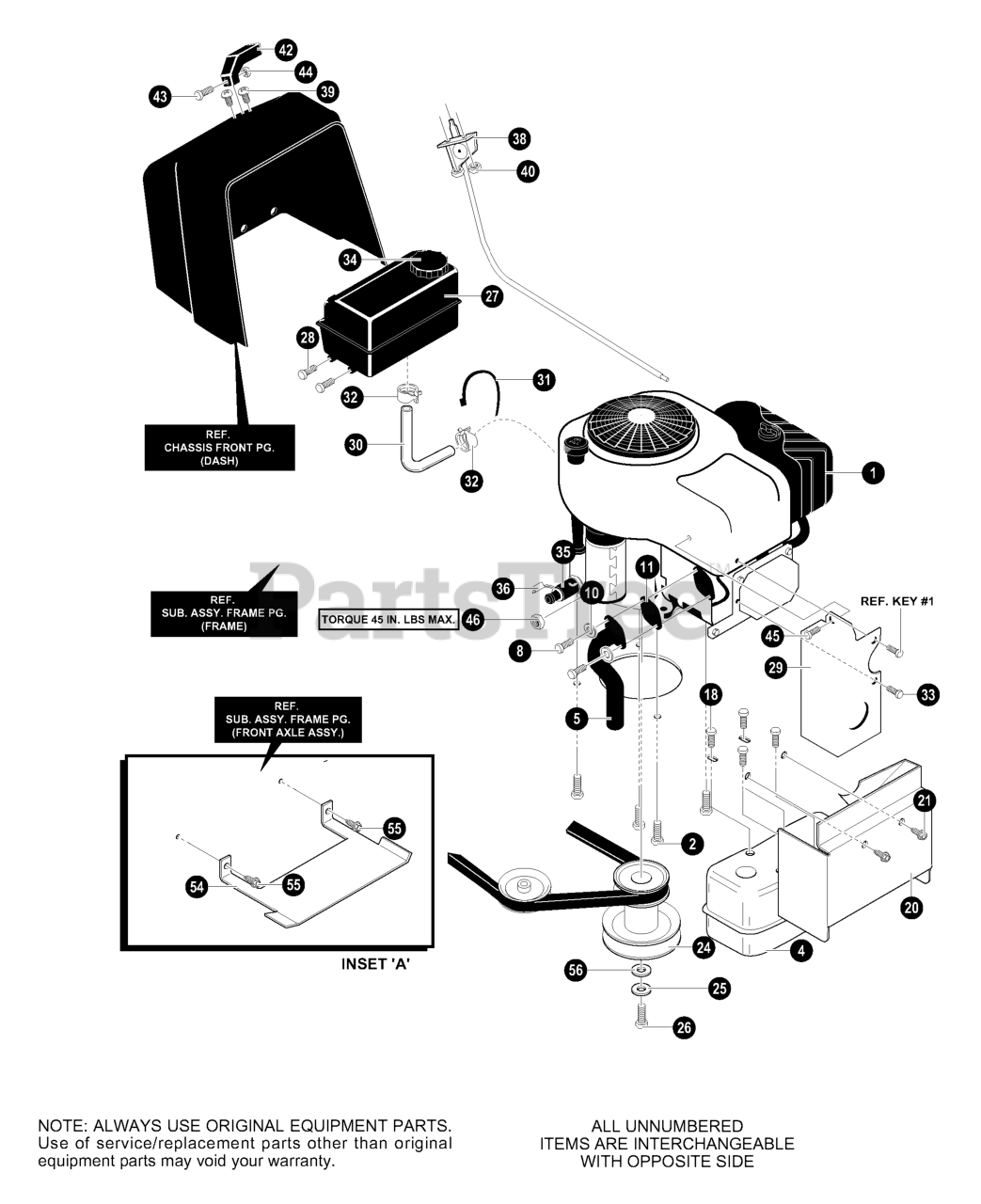

Engine & Control Assembly Parts Diagram

  • Title

1

Murray ~ENGINE

15.5HP

Note: (See Engine Manual)

$

$

Currently unavailable

2

Murray 710199

SCREW, 3/8-16 x 1.25

$66.99

$

Usually ships in 2-12 days

0

4

Murray 094654MA

MUFFLER, SINGLE CYLINDER

$

$

Not available

5

Murray 094657

EXHAUST TUBE

$

$

Currently unavailable

8

Murray 313676

SCREW, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

10

Murray 313679

WASHER, HVSPTLK

$

$

Currently unavailable

11

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

18

Murray 711642MA

SCREW, 1/4-20X .63
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

20

Murray 95439-821

HEAT SHIELD, LOWER FRONT

$

$

Currently unavailable

21

Murray 711606MA

SCREW, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

24

Murray 95383

STACK PULLEY ASSY
(Superseded to 95383GS)

$4.99

$

Usually ships in 2-12 days

0

25

Murray 120383

WASHER, REGSPTLK

$

$

Not available

26

Murray 710248

SCREW, 7/16-20

$3.99

$

Usually ships in 2-12 days

0

27

Murray 309853MA

TANK, FUEL

$32.99

$

Usually ships in 2-12 days

0

28

Murray 711681

SCREW, 15TPIX

$1.99

$

Usually ships in 2-12 days

0

29

Murray 333772-821

HEAT SHIELD SIDE

$

$

Currently unavailable

30

Murray 42258

TUBING, .25X.50X BULK GAS

$

$

Currently unavailable

31

Murray 57444

TIE, CABLE BLACK

$

$

Not available

32

Murray 336890

CLAMP, FUEL CLAMP

$

$

Currently unavailable

33

Murray 711592

SCREW, 1/4-20X.50 WAHHTAP

$335.99

$

Usually ships in 2-12 days

0

34

Murray 12501MA

CAP,FUEL

$27.99

$

Usually ships in 2-12 days

0

35

Murray 325547MA

OIL DRAIN VALVE ASSEMBLY

$

$

Not available

36

Murray 327422

CAP, OIL DRAIN VALVE

$

$

Not available

38

Murray 95370MA

THROTTLE CONTROL

$33.99

$

Usually ships in 2-12 days

0

39

Murray 711755MA

SCREW, 10-24X.63

$3.49

$

Usually ships in 2-12 days

0

40

Murray 711754

NUT, #10-24 HXHDNYLK

$17.99

$

Usually ships in 2-12 days

0

42

Murray 94931

KNOB,THROTTLE CONTROL
(Superseded to 691695)

$6.99

$

Usually ships in 2-12 days

0

43

Murray 711750

SCREW, #8-32X .38

$

$

Currently unavailable

44

Murray 711748

NUT, #8-32 REGHEX

$5.49

$

Usually ships in 2-12 days

0

45

Murray 711593

SCREW, 10-16X.50 DRILLTITE

$1.99

$

Usually ships in 2-12 days

0

46

Murray 711601

NUT, 1/4-20 REGHEXJAM

$1.99

$

Usually ships in 2-12 days

0

54

Murray 95192-821

SHIELD, ANTI-DEHYDRATION DEFLEC

$

$

Currently unavailable

55

Murray 711606MA

SCREW, 5/16-18 x 0.75 HHWATAP

$7.99

$

In Stock, only 2 left!

0

56

Murray 710247

WASHER, FLAT .480X1.00X.25

$8.49

$

Usually ships in 2-12 days

0
