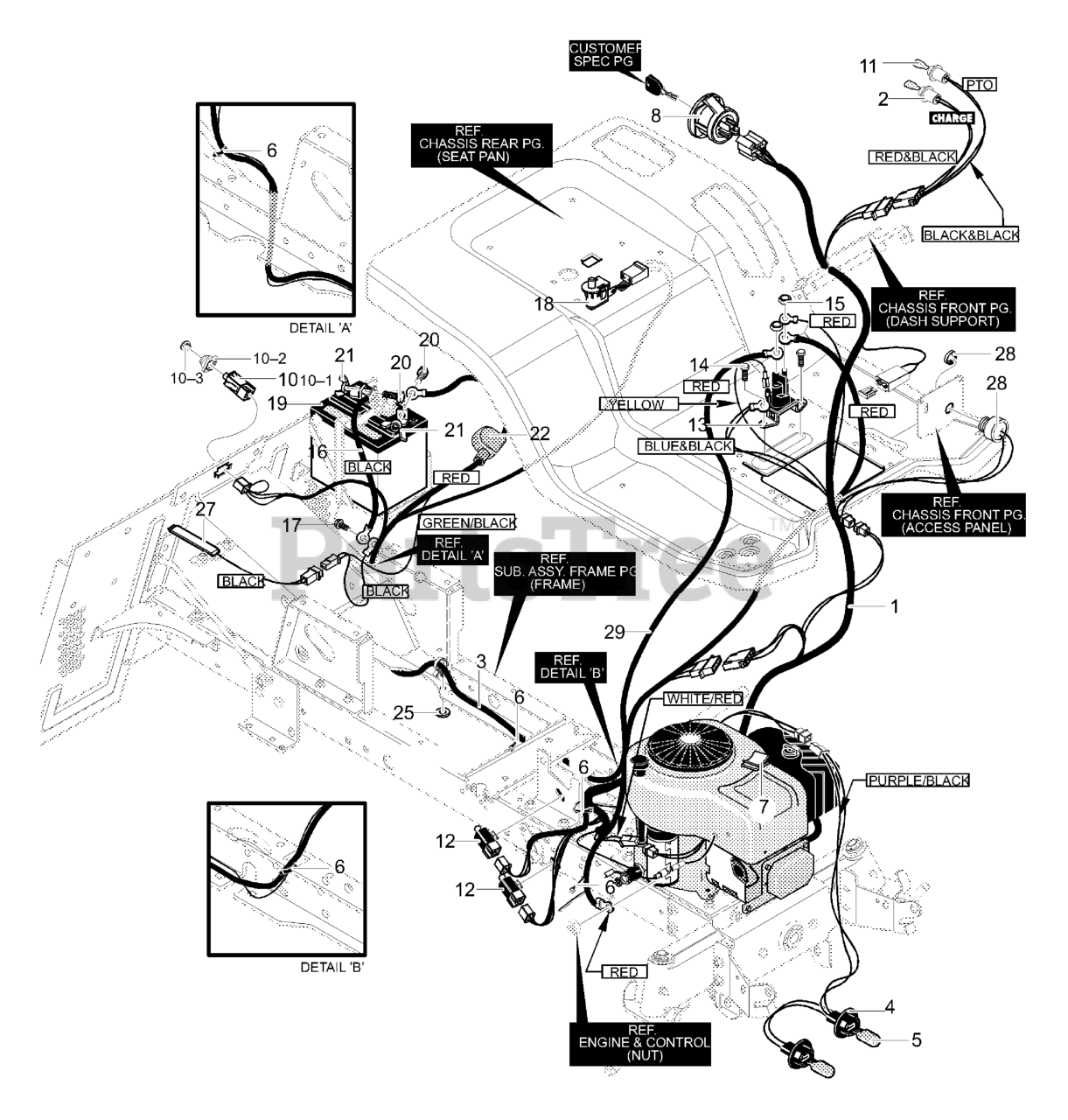

40383x58B - Murray 40" Lawn Tractor (2000) Electrical Assembly Parts Diagram

40" Lawn Tractor

Electrical Assembly Parts Diagram

  • Title

1

Murray 95378

Wire Harness
(Superseded to 95378GS)

$22.99

$

Usually ships in 2-12 days

0

2

Murray 690611

Indicator Harness

$7.49

$

In Stock, only 3 left!

0

3

Murray 95381

Rear Harness

$

$

Currently unavailable

4

Murray 94103

Wire Harness *

$

$

Currently unavailable

5

Murray 52572

Bulb, Headlamp
(Superseded to 52572GS)

$14.99

$

Usually ships in 2-12 days

0

6

Murray 57444

Cable Tie

$

$

Not available

7

Murray 055939MA

Wire Clip, Adhesive

$4.99

$

Usually ships in 2-12 days

0

8

Murray 094762

Switch, Ignition

$24.99

$

Usually ships in 2-12 days

0

10

Murray 690106MA

Assy, Switch Double Pole Delta

$19.99

$

Usually ships in 2-12 days

0

10-1

Murray 320082MA

Switch, Double

$

$

Not available

10-2

Murray 690074MA

Boot, Switch

$5.49

$

Usually ships in 2-12 days

0

10-3

Murray 690075MA

Switch Cap

$4.99

$

Usually ships in 2-12 days

0

11

Murray 57769MA

Bulb, Indicator

$4.49

$

Usually ships in 2-12 days

0

12

Murray 094136MA

Switch, Limit

$12.99

$

In Stock, Qty 5

0

13

Murray 094613

Solenoid

$27.99

$

In Stock, Qty 7

0

14

Murray 711619

Screw 1/4x.50

$1.99

$

Usually ships in 2-12 days

0

15

Murray 711632

Nut, 1/4-20

$

$

Currently unavailable

16

Murray 95420

Ground Wire

$

$

Currently unavailable

17

Murray 711619

Screw, 1/4x.50

$1.99

$

Usually ships in 2-12 days

0

18

Murray 094159MA

Seat Switch
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

19

Murray 092739

Battery 5 Plate

$

$

Currently unavailable

20

Murray 711680

Bolt, 1/4-20x.63
(Superseded to 711682)

$7.49

$

In Stock, only 1 left!

0

21

Murray 711636

Wing Nut

$

$

Not available

22

Murray 335417

Battery Boot

$5.49

$

Usually ships in 2-12 days

0

25

Murray 711666

Flatwasher

$

$

Not available

27

Murray 95330MA

Tape Switch

$86.99

$

Usually ships in 2-12 days

0

28

Murray 95391

Buzzer, For Bag Full

$

$

Currently unavailable

29

Murray 711579

Wire, Lead Solenoid to Starter

$

$

Currently unavailable

--

Murray 302031MA

15 Amp Fuse

$6.49

$

Usually ships in 2-12 days

0
