40383x58B - Murray 40" Lawn Tractor (2000) Motion Drive Parts Diagram

40" Lawn Tractor

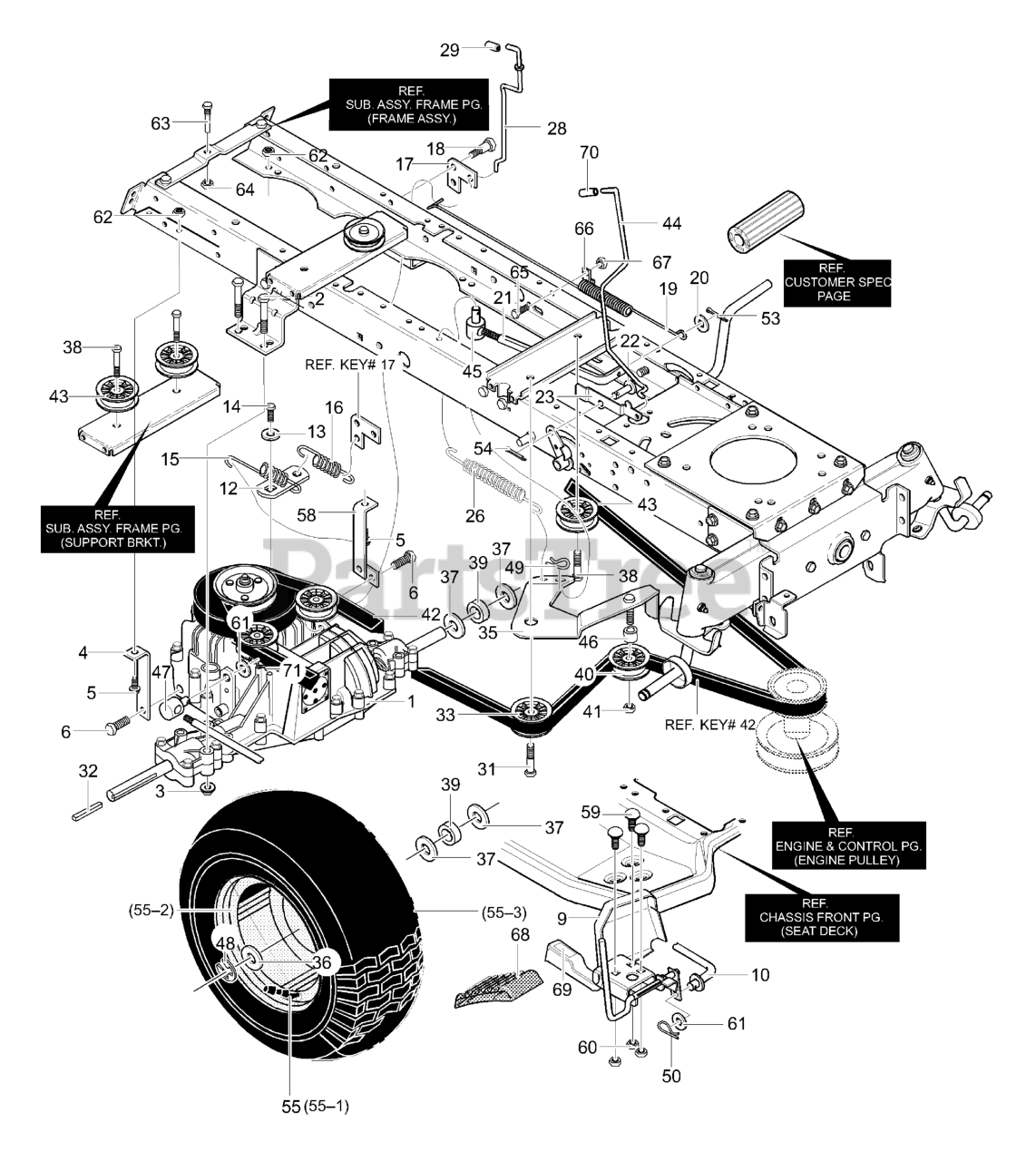

Motion Drive Parts Diagram

  • Title

1

Transaxle, MST205 **

$

$

Not available

2

Murray 711669

Screw, 5/16-18 x 2.50

$1.99

$

Usually ships in 2-12 days

0

3

Murray 711634MA

Nut, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

4

Murray 94224-821

Bracket, Stabilizer Hydro

$

$

Currently unavailable

5

Murray 711893

SCREW, 5/16-18 x 1.00

$

$

Currently unavailable

6

Murray 710268

Screw, 5/16-18 x .75

$12.99

$

In Stock, Qty 5

0

9

Murray 690134-821

Pedal Assy. Hydro

$

$

Currently unavailable

10

Murray 690018

Rod, Foot Control

$22.99

$

Usually ships in 2-12 days

0

12

Murray 323312

Bracket, Shift

$

$

Currently unavailable

13

Murray 711895

Washer, Transaxle

$

$

Currently unavailable

14

Murray 01X145MA

Screw, 1/4-28x.750

$4.49

$

Usually ships in 2-12 days

0

15

Murray 94622MA

Spring - Transaxle

$4.49

$

Usually ships in 2-12 days

0

16

Murray 326780MA

Spring

$3.99

$

Usually ships in 2-12 days

0

17

Murray 94621-821

Bracket, Disconnect Lever

$

$

Currently unavailable

18

Murray 711896

Bolt, 5/16-18 HHSH

$

$

Currently unavailable

19

Murray 95424

Spring, Brake

$4.99

$

Usually ships in 2-12 days

0

20

Murray 711921

Washer, Flat

$

$

Currently unavailable

21

Murray 690016

Rod, Clutch

$78.99

$

Usually ships in 2-12 days

0

22

Murray 711903

Pin, Clevis

$

$

Currently unavailable

23

Murray 95290

Latch, Park Brake

$3.99

$

Usually ships in 2-12 days

0

26

Murray 711522

Spring, Tension

$26.99

$

Usually ships in 2-12 days

0

28

Murray 690015

Rod, Disconnect

$33.99

$

Usually ships in 2-12 days

0

29

Murray 690032

Grip, Hydro Disconnect
(Superseded to 695157)

$18.99

$

In Stock, Qty 10

0

31

Murray 711905MA

Screw, 3/8-16 x 1.25

$3.99

$

Usually ships in 2-12 days

0

32

Murray 52928MA

Key, Square

$1.99

$

Usually ships in 2-12 days

0

33

Murray 95531

Pulley, Idler
(Superseded to 95531GS)

$2.99

$

Usually ships in 2-12 days

0

35

Murray 94238-821

Assy, Idler Arm Traction

$

$

Currently unavailable

36

Murray 711758

Washer, Flat

$26.99

$

In Stock, only 1 left!

0

37

Murray 711904

Washer, Flat

$

$

Currently unavailable

38

Murray 711905MA

Screw, 3/8-16 x 1.25

$3.99

$

Usually ships in 2-12 days

0

39

Murray 95274MA

Spacer

$46.99

$

Usually ships in 2-12 days

0

40

Murray 690409MA

Pulley, Idler

$19.99

$

In Stock, only 4 left!

0

41

Murray 711920MA

Nut, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

42

Murray 94609MA

Belt, V 4L 112.75

$39.99

$

Usually ships in 2-12 days

0

43

Murray 1001065MA

Pulley, Idler

$31.99

$

Usually ships in 2-12 days

0

44

Murray 690046MA

Park Brake control Rod

$8.99

$

Usually ships in 2-12 days

0

45

Murray 711898

Nut, 5/16-18 Adjusting

$

$

Currently unavailable

46

Murray 690369MA

Spacer, 1/2 to 17mm

$5.99

$

In Stock, only 4 left!

0

47

Murray 711594

Adjusting Nut, 1/2-13

$2.99

$

Usually ships in 2-12 days

0

48

Murray 710103

E-Ring

$8.99

$

Usually ships in 2-12 days

0

49

Murray 711659

Pin, Hair

$1.99

$

Usually ships in 2-12 days

0

50

Murray 711676

Pin, Hair

$

$

Currently unavailable

53

Murray 071081

Pin, Cotter

$3.49

$

Usually ships in 2-12 days

0

54

Murray 071081

Pin, Cotter

$3.49

$

Usually ships in 2-12 days

0

55

Murray 692511

Tire & Rim

$3.99

$

Usually ships in 2-12 days

0

55-1

Murray 338512

Valve Stem

$

$

Not available

55-2

Murray 338524

Rim

$

$

Currently unavailable

55-3

Murray 338525

Tire

$

$

Currently unavailable

58

Murray 94225-821

Asm., Weld Bracket, Stabilizer

$

$

Currently unavailable

59

Murray 711688MA

Bolt, Carriage 5/16-18x.75

$3.49

$

Usually ships in 2-12 days

0

60

Murray 710026

Nut, 5/16-18 Hexwdfllk Whiz

$

$

Not available

61

Murray 711894

Flatwasher, .515x.88x.0

$

$

Currently unavailable

62

Murray 710026

Nut, 5/16-18 Hexwdfllk

$

$

Not available

63

Murray 711745

Screw Guide

$

$

Currently unavailable

64

Murray 710026

Nut, 5/16-18 Hexwdfllk Whiz

$

$

Not available

65

Murray 313686MA

Screw, 1/4-20x.50

$3.99

$

In Stock, only 2 left!

0

66

Murray 711742

Retainer, Wire

$18.99

$

Usually ships in 2-12 days

0

67

Murray 780285MA

Nut, 1/4-20 Wdflwhiz-Lk
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

68

Murray 093248

Pedal, Pad Sandpaper

$

$

Currently unavailable

69

Murray 093249

Pad, Toe Sandpaper

$3.49

$

Usually ships in 2-12 days

0

70

Murray 335980

Cap, Dump Valve Rod

$

$

Currently unavailable

71

Murray 711682MA

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

--

Murray 094618MA

Hubcap

$5.99

$

In Stock, Qty 20+

0
