404 (215-404-100) - Cub Cadet Rear-Tine Tiller (1985) Tiller Chain Case (Wheels) Parts Diagram

Rear-Tine Tiller

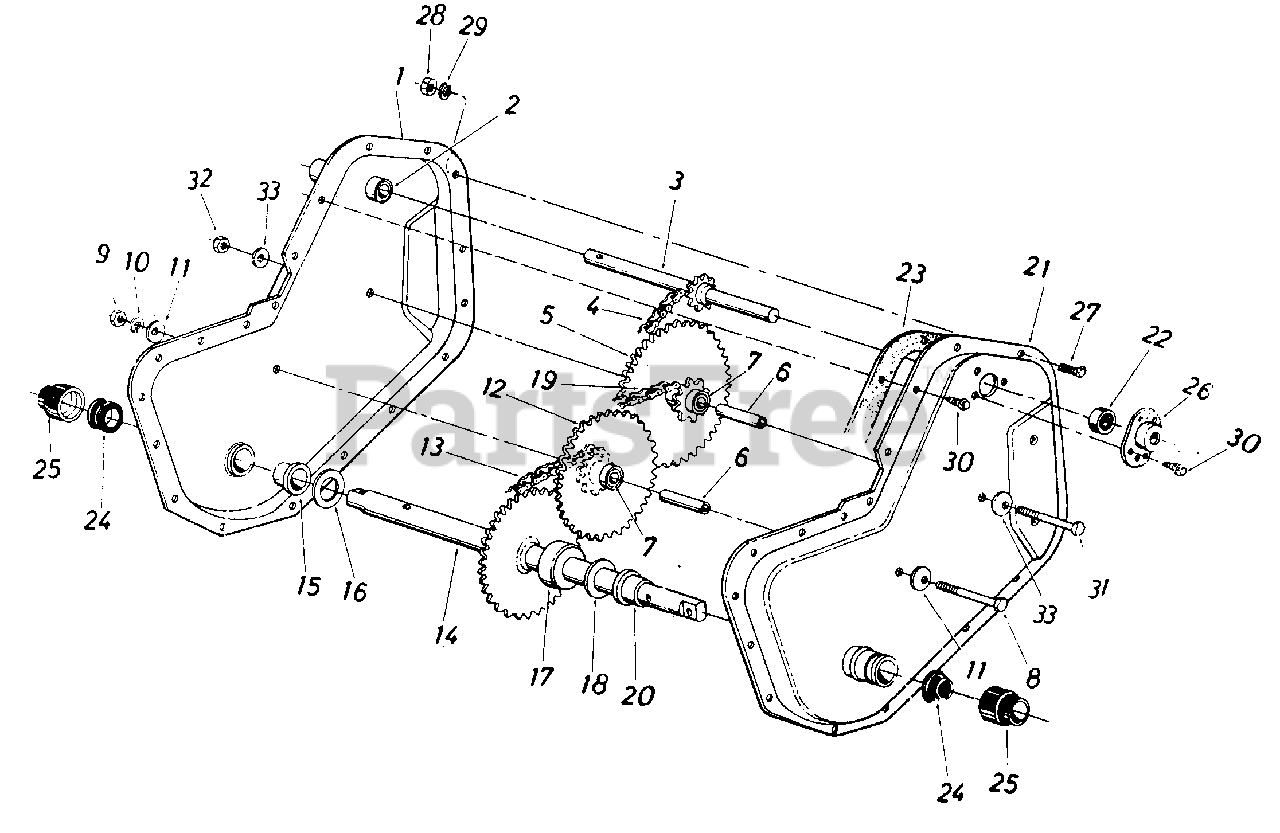

Tiller Chain Case (Wheels) Parts Diagram

  • Title

1

Cub Cadet 14962

HOUSING-CHAIN CASE

$

$

Not available

2

Cub Cadet 748-0154

BEARING

$

$

Not available

3

Cub Cadet 14960

SHAFT ASSY-INPUT

$

$

Not available

4

Cub Cadet 713-0325

#35 CHAIN 3/8 PITCH X 44 LINKS E

$

$

Not available

5

Cub Cadet 713-0316

SPROCKET & HUB ASSY-9T & 36T

$

$

Currently unavailable

6

Cub Cadet 750-0351

BEARING-INNER RACE

$

$

Not available

7

Cub Cadet 741-0228

BEARING-SLEEVE

$

$

Not available

8

Cub Cadet 710-0369

SCREW-HEX 3/8-24 X 2.50

$5.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.49

$

In Stock, Qty 7

0

10

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0219

WASHER-BELL .3/8ID X 1.12OD X .030
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

12

Cub Cadet 713-0330

SPROCKET & HUB ASSY-9T & 22T

$

$

Not available

13

Cub Cadet 713-0326

#420 CHAIN 1/2 PITCH X 28 LINKS E
(Superseded to 913-0326)

$

$

Not available

14

Cub Cadet 14968

SHAFT ASSY-WHEEL

$

$

Currently unavailable

15

Cub Cadet 741-0227

BEARING-FLANGE

$10.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0265

WASHER-FL-.88 X 1.50 X .030

$

$

Not available

17

Cub Cadet 750-0354

SPACER
(Superseded to 750-0354A)

$

$

Not available

18

Cub Cadet 736-0265

WASHER-FL-.88 X 1.50 X .030

$

$

Not available

19

Cub Cadet 713-0267

#420 CHAIN 1/2 PITCH X 30 LINKS E

$

$

Not available

20

Cub Cadet 741-0227

BEARING-FLANGE

$10.99

$

In Stock, Qty 20+

0

21

Cub Cadet 15797

HOUSING-WHEEL-LH-CHAIN CASE

Variations

Cub Cadet 15797-0637

HOUSING-WHEEL (LH)-CPOWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

22

Cub Cadet 741-0155

BEARING-BALL
(Superseded to 941-0155)

$22.99

$

In Stock, Qty 20+

0

23

Cub Cadet 721-0156

GASKET
(Superseded to 921-0156A)

$

$

Not available

24

Cub Cadet 721-0157

SEAL

$

$

Not available

25

Cub Cadet 731-0486

CAP-DUST

$

$

Not available

26

Cub Cadet 05034

HOUSING-BRG
(Superseded to 05034A)

$

$

Not available

27

Cub Cadet 710-0195

SCREW-HEX 1/4-28 X .62
(Superseded to 910-0195)

$3.49

$

In Stock, only 1 left!

0

28

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

30

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-0378

SCREW-HEX

$4.49

$

In Stock, only 3 left!

0

32

Cub Cadet 712-0158

NUT-HEX CENTER L-5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0159

WASHER-FL-.344 ID X .88 OD X .063

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 737-0133

PLASTILUBE-#0-14 OZ CARTRIDGE
(Superseded to 737-0300A)

Note: (10 oz.)

$32.99

$

In Stock, Qty 20+

0
