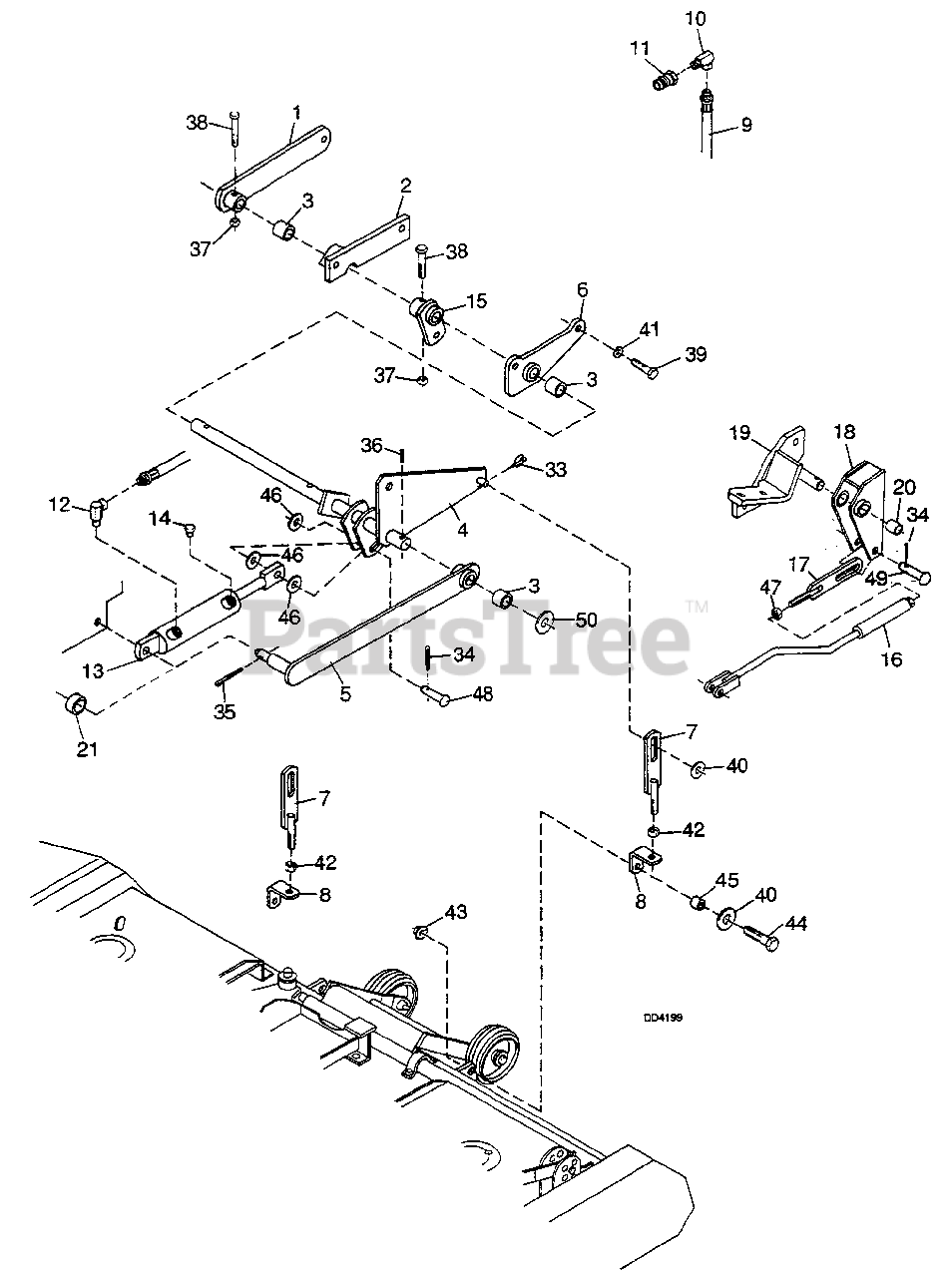

404 (590-404-100) - Cub Cadet 72" Mower Deck, Mid Mount att Rear Mounting Parts Diagram

72" Mower Deck, Mid Mount

Rear Mounting Parts Diagram

  • Title

1

Cub Cadet WM-66919

Rear lift arm assembly

$

$

Not available

2

Cub Cadet WM-66898

Right rear rockshaft assembly

Note: (Includes bushing #3)

$

$

Not available

3

Cub Cadet WM-33545

1.015 x 1.25 x 1 Oilite bushing

$

$

Not available

4

Cub Cadet WM-66929

Rear rockshaft assembly

$

$

Not available

5

Cub Cadet WM-66915

Cylinder brace assembly

Note: (Includes bushing #3)

$

$

Not available

6

Cub Cadet WM-66899

Left rear rockshaft assembly

Note: (Includes bushing #3)

$

$

Not available

7

Cub Cadet WM-66910

Rear lift bar assembly

$

$

Not available

8

Cub Cadet WM-66911

Lower lift link, 1/2-13

$62.99

$

Usually ships in 3-6 days

0

9

Cub Cadet WM-34221

High-pressure hydraulic hose, 1/4 NPT x 65

$

$

Not available

10

Cub Cadet WM-25338

1/2M x 1/4F 90° Swivel elbow

$

$

Not available

11

Cub Cadet WM-66511

Coupler, Male 1/2 NPT

$

$

Not available

12

Cub Cadet WM-8572

1/4 x 1/4 90° Swivel street elbow

$

$

Not available

13

Hydraulic cylinder

Note: (See "1-1/2" Hydraulic Cylinder" illustration & parts list)

$

$

Not available

14

Cub Cadet WM-23547

1/4 NPT Vent plug

$

$

Not available

15

Cub Cadet WM-66930

Pull lug assembly, 2.5

$

$

Not available

16

Cub Cadet WM-34667

Rear tie rod asy

Note: (Mechanical only)

$

$

Not available

17

Cub Cadet WM-34686

Rear lift bar asy

Note: (Mechanical only)

$

$

Not available

18

Cub Cadet WM-66334

Rear lift arm assembly

Note: (Includes bushing #20) (Mechanical only)

$

$

Not available

19

Cub Cadet WM-66338

Lift mounting plate assembly

Note: (Mechanical only)

$

$

Not available

20

Cub Cadet WM-34648

Bushing, 7/8 x 1 x 5/8

Note: (Mechanical only)

$

$

Not available

21

Cub Cadet WM-7453

5/8 x 1-3/8 x 7/16 Washer

Note: (Mechanical only)

$

$

Currently unavailable

33

Cub Cadet WM-22411

3/16 x 1 Klik pin
(Superseded to 753-04070)

$9.49

$

In Stock, Qty 20+

0

34

Cub Cadet WM-1256

3/16 x 1 Cotter pin

Note: Obtain Locally

$

$

Currently unavailable

35

Cub Cadet WM-64803

3/16 x 2 Cotter pin

Note: Obtain Locally

$

$

Currently unavailable

36

Cub Cadet WM-21022

1/4 x 2 Spirol pin

$

$

Not available

37

Cub Cadet WM-66985

10mm Hex locknut
(Superseded to 712-04052)

$

$

Not available

38

Cub Cadet WM-62677

10mm x 1.5P x 45mm Hex head cap screw

$

$

Not available

39

Cub Cadet WM-62542

12mm x 1.75P x 30mm Hex head cap screw

$

$

Not available

40

Cub Cadet WM-854

1/2 Standard flat washer

Note: Obtain Locally

$

$

Not available

41

Cub Cadet WM-855

1/2 Extra-heavy lockwasher
(Superseded to 936-0921)

Note: Obtain Locally

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet WM-13859

1/2 NC Hex jam nut
(Superseded to 912-3048)

Note: Obtain Locally

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet WM-11900

1/2 NC Flanged hex locknut

Note: Obtain Locally

$4.99

$

In Stock, only 1 left!

0

44

Cub Cadet WM-3379

1/2 NC x 1-1/2 Hex head cap screw GR5

Note: Obtain Locally

$4.99

$

Usually ships in 3-6 days

0

45

Cub Cadet WM-22086

1/2 x 3/4 x 1/2 Sleeve

$

$

Not available

46

Cub Cadet WM-3632

5/8 Standard SAE flat washer

Note: Obtain Locally

$

$

Currently unavailable

47

Cub Cadet WM-1598

5/8 NC Hex jam nut

$

$

Currently unavailable

48

Cub Cadet WM-66846

5/8 x 1.65 Clevis pin

$12.99

$

Usually ships in 3-6 days

0

49

Cub Cadet WM-5777

5/8 x 2-1/4 Clevis pin

Note: (Mechanical only)

$

$

Currently unavailable

50

Cub Cadet WM-1863

1" SAE Flat washer

$

$

Not available
