404447-1211-01 - Briggs & Stratton Horizontal Engine

Horizontal Engine

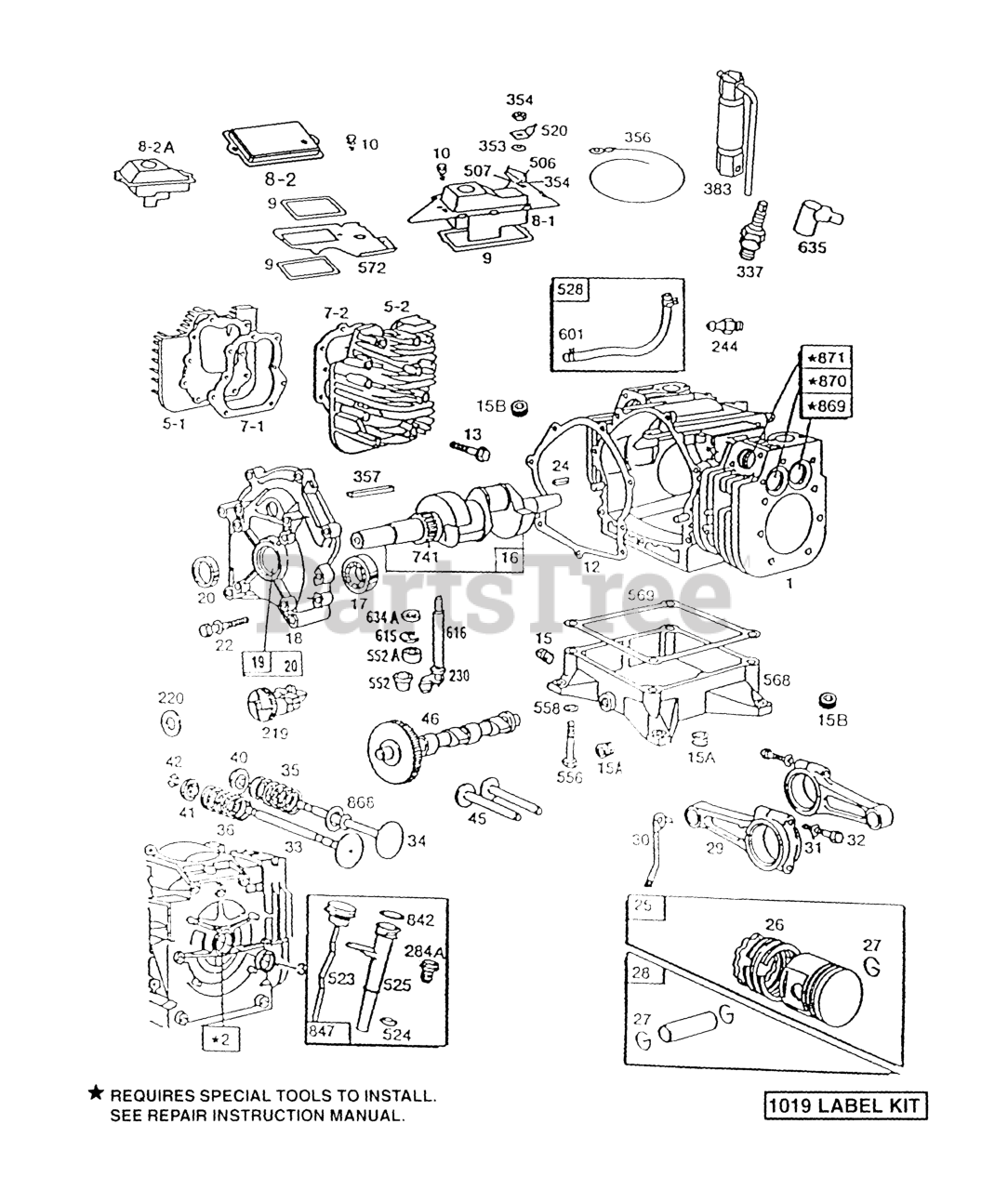

404447-1211-01 - Briggs & Stratton Horizontal Engine > Parts Diagrams (6) > Cylinder, Sump, Cover, Heads

  • Title
497075

1

Cylinder Assembly

Part# 497075

OEM Warranty Repair Part for Briggs & Stratton

Not available

491756

2

Bearing-Cylinder

Part# 491756 (Superseded to 797673)

Note: Used After Code Date 89073000 and Before Code Date 91081800

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $15.58

495359

2

Bushing

Part# 495359

Note: Used Before Code Date 89073100

OEM Warranty Repair Part for Briggs & Stratton

Not available

391086

3

Seal-Oil

Part# 391086 (Superseded to 391086S)

Note: Included in Gasket Set-Part No. 491856

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.42

493458

5-2

Head-Cylinder (Cyl. #2)

Part# 493458

OEM Warranty Repair Part for Briggs & Stratton

Not available

493457

5-1

Head-Cylinder (Cyl. #1)

Part# 493457

OEM Warranty Repair Part for Briggs & Stratton

Not available

271867

7-1

Gasket, Cylinder He (Cyl. #1)

Part# 271867 (Superseded to 271867S)

Note: Included in Gasket Set-Part No. 491856

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $7.66

271868

7-2

Gasket, Cylinder He (Cyl. #2)

Part# 271868 (Superseded to 271868S)

Note: Included in Gasket Set-Part No. 491856

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $7.83

222892

8-2

Valve Cover (Cyl. #2)

Part# 222892 (Superseded to 690415)

Note: Used After Code Date 91081800

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $6.94

393243

8-1

Breather/Terminal A (#1)

Part# 393243 (Superseded to 495755)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $37.22

27803

9

Gasket-Valve Cover

Part# 27803 (Superseded to 27803S)

Note: Included in Gasket Set-Part No. 491856

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.40

94382

10

Screw-Sem

Part# 94382 (Superseded to 690334)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

272127

12

Gasket-Crankcase Cover (.005" Thick)

Part# 272127

Note: Included in Gasket Set-Part No. 491856

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $7.70

94565

13

Screw, Machine Hex

Part# 94565 (Superseded to 592244)

Note: (Cylinder Head) (3 9/16" Long)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.51

93448

15A

Plug, Pipe (Flush) (1/4-18 Nptf)

Part# 93448 (Superseded to 691682)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.73

94497

15B

Plug, Oil

Part# 94497 (Superseded to 690343)

Note: (1/8"-27 NPTF Hex. Socket) (Impulse Pump Hole)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.73

91084

15

Plug, Pipe (Standar (3/8")

Part# 91084 (Superseded to 690946)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.73

492227

16

Crankshaft

Part# 492227

OEM Warranty Repair Part for Briggs & Stratton

Not available

393741

17

Bearing-Ball (P.t.o. Side)

Part# 393741 (Superseded to 691358)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $43.46

491711

18

Cover-Crankcase (Plain Brg.)

Part# 491711

OEM Warranty Repair Part for Briggs & Stratton

Not available

495360

19

Bushing

Part# 495360

Note: Used Before Code Date 89073100

OEM Warranty Repair Part for Briggs & Stratton

Not available

291675

20

Seal, Oil (Used In Crankcase Covers)

Part# 291675 (Superseded to 291675S)

Note: Included in Gasket Set-Part No. 491856

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.98

93847

22

Screw-Tank Mounting

Part# 93847 (Superseded to 691088)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

222698

24

Key, Flywheel

Part# 222698 (Superseded to 222698S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.24

394955

25

Piston/Ring Kit (Std.)

Part# 394955 (Superseded to 498584)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $88.83

394956

25

Piston/Ring Kit (.010" O.S.)

Part# 394956

OEM Warranty Repair Part for Briggs & Stratton

Not available

394957

25

Piston/Ring Kit (.020" O.S.)

Part# 394957 (Superseded to 498586)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $70.83

394958

25

Piston/Ring Kit (.030" O.S.)

Part# 394958

OEM Warranty Repair Part for Briggs & Stratton

Not available

394959

26

Ring Set-Std

Part# 394959

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $43.83

394960

26

Ring Set-010

Part# 394960

OEM Warranty Repair Part for Briggs & Stratton

Not available

394961

26

Ring Set-020

Part# 394961

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $55.83

394962

26

Ring Set-030

Part# 394962

OEM Warranty Repair Part for Briggs & Stratton

Not available

260924

27

Lock-Piston Pin

Part# 260924 (Superseded to 691792)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.09

299691

28

Pin-Piston Std (Std.)

Part# 299691

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $12.43

391286

28

Pin-Piston 005 (.005 O.S.)

Part# 391286

OEM Warranty Repair Part for Briggs & Stratton

Not available

492667

29

Rod, Connecting Kit (Standard)

Part# 492667 (Superseded to 393270)

Note: For Connecting Rod With .020" Undersize Crankpin Bore For Model 404447 Series Engines Order No. 492911

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $68.25

222480

30

Dipper-Connecting Rod

Part# 222480 (Superseded to 691733)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $11.78

220863

31

Washer (1/4 X 5/8 X 1/32)

Part# 220863

Note: Used Before Code Date 92090300

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

92909

32

Screw, Hex Head Cap

Part# 92909 (Superseded to 691133)

Note: Used Before Code Date 92090400

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.92

94671

32

Screw-Hex.

Part# 94671 (Superseded to 691133)

Note: Used After Code Date 92090300

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.92

390420

33

Valve/Retainer Kit

Part# 390420 (Superseded to 691794)

OEM Warranty Repair Part for Briggs & Stratton

Not available

261528

34

Valve, Intake

Part# 261528 (Superseded to 691804)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $20.63

65906

35

Spring, Valve

Part# 65906 (Superseded to 691605)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.38

26828

36

Spring, Valve (Exhaust)

Part# 26828 (Superseded to 691597)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $6.24

221596

40

Retainer, Spring (Used With Valves With Groove In Stem)

Part# 221596 (Superseded to 690656)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.14

292260

41

Rotocoil Assy (Exhaust Valve)

Part# 292260 (Superseded to 691939)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $19.37

93630

42

Keeper, Valve (2)

Part# 93630

OEM Warranty Repair Part for Briggs & Stratton

Not available

261368

45

Tappet-Valve

Part# 261368 (Superseded to 691800)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $9.92

213675

46

Gear-Cam

Part# 213675 (Superseded to 213674)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $155.05

394348

219

Gear-Governor

Part# 394348 (Superseded to 793338)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $21.70

222773

220

Washer-Thrust

Part# 222773 (Superseded to 690412)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.90

223882

230

Washer

Part# 223882 (Superseded to 690442)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

230318

244

Connector, Fuel

Part# 230318 (Superseded to 691764)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.55

93886

284A

Screw-Shoulder

Part# 93886

OEM Warranty Repair Part for Briggs & Stratton

Not available

394539

337

Spark Plug (Resistor)

Part# 394539 (Superseded to 796112S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.86

802592

337

Spark Plug,resistor

Part# 802592

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.86

92791

353

Lockwasher, Interna

Part# 92791 (Superseded to 691077)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.63

90576

354

Nut, Hex (8-32)

Part# 90576 (Superseded to 691612)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.39

398874

356

Wire, Dual Stop Ass

Part# 398874 (Superseded to 491391)

OEM Warranty Repair Part for Briggs & Stratton

Not available

91540

357

Key, Pulley (1/4")

Part# 91540 (Superseded to 691483)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $5.31

89838

383

Wrench-Spark Plugs

Part# 89838 (Superseded to 89838S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $5.00

231174

506

Terminal

Part# 231174

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.96

280180

507

Insulator

Part# 280180

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.21

93722

520

Terminal, Spade

Part# 93722 (Superseded to 691084)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.96

398924

523

Cap-Oil Fill

Part# 398924 (Superseded to 691385)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $21.64

68838

524

Seal-Oil Filler Tube To Sump

Part# 68838 (Superseded to 281370S)

Note: Included in Gasket Set-Part No. 491856

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $5.65

280220

525

Tube-Oil Filler

Part# 280220 (Superseded to 691389)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $24.15

393815

528

Hose-Vacuum (11" Cut To Required Length)

Part# 393815 (Superseded to 791880)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $10.15

262331

552A

Bearing, Shaft (Upper)

Part# 262331 (Superseded to 690552)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $5.89

262332

552

Bearing, Shaft (Lower)

Part# 262332 (Superseded to 690553)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $5.60

93783

556

Screw-Hex. Head

Part# 93783 (Superseded to 690359)

Note: Used Before Code Date 92092500

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $7.12

94725

556

Screw-Hex. Head

Part# 94725 (Superseded to 690359)

Note: Used After Code Date 92092400

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $7.12

92268

558

Washer-Lock (3/8 X 1/8 X 3/32")

Part# 92268

Note: Used Before Code Date 92092500

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.33

491717

568

Base-Engine

Part# 491717

OEM Warranty Repair Part for Briggs & Stratton

Not available

272062

569

Gasket-Sump

Part# 272062 (Superseded to 692287)

Note: Included in Gasket Set-Part No. 491856

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $7.10

222700

572

Guide-Air (Cyl. #2)

Part# 222700

Note: Used Before Code Date 91081900

OEM Warranty Repair Part for Briggs & Stratton

Not available

224580

572

Cover-Air Guide (Cyl. #2)

Part# 224580 (Superseded to 690481)

Note: Used After Code Date 91081800

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $5.89

93053

601

Clamp, Hose (Green)

Part# 93053 (Superseded to 791850)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.29

94296

615

Retainer-Governor

Part# 94296 (Superseded to 690328)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.03

491530

616

Crank-Governor

Part# 491530

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $18.61

491287

634A

Seal-Governor Shaft

Part# 491287 (Superseded to 790574)

Note: Included in Gasket Set-Part No. 491856

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.38

66538

635

Elbow-Spark Plug

Part# 66538 (Superseded to 66538S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.96

262694

741

Gear-Timing

Part# 262694 (Superseded to 691277)

OEM Warranty Repair Part for Briggs & Stratton

Not available

271170

842

Seal-Tube

Part# 271170 (Superseded to 691870)

Note: Included in Gasket Set-Part No. 491856

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.19

398990

847

Tube Assy.-Oil

Part# 398990 (Superseded to 690651)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $43.46

393606

868

Seal-Valve

Part# 393606 (Superseded to 692324)

OEM Warranty Repair Part for Briggs & Stratton

Not available

261463

869

Seat, Intake Valve

Part# 261463 (Superseded to 691802)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $12.02

213316

870

Seat, Exhaust Valve

Part# 213316 (Superseded to 691844)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $13.75

231218

871

Bushing-Guide (Brass)

Part# 231218

Note: See Repair Manual

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $9.92

261961

871

Bushing-Guide

Part# 261961

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $9.92

491259

1019

Label Kit

Part# 491259

OEM Warranty Repair Part for Briggs & Stratton

Not available
