4045A7-0211-E1 - Briggs & Stratton Vertical Engine Camshaft, Crankshaft, Lubrication, Piston, Rings, Connecting Rod Parts Diagram

Vertical Engine

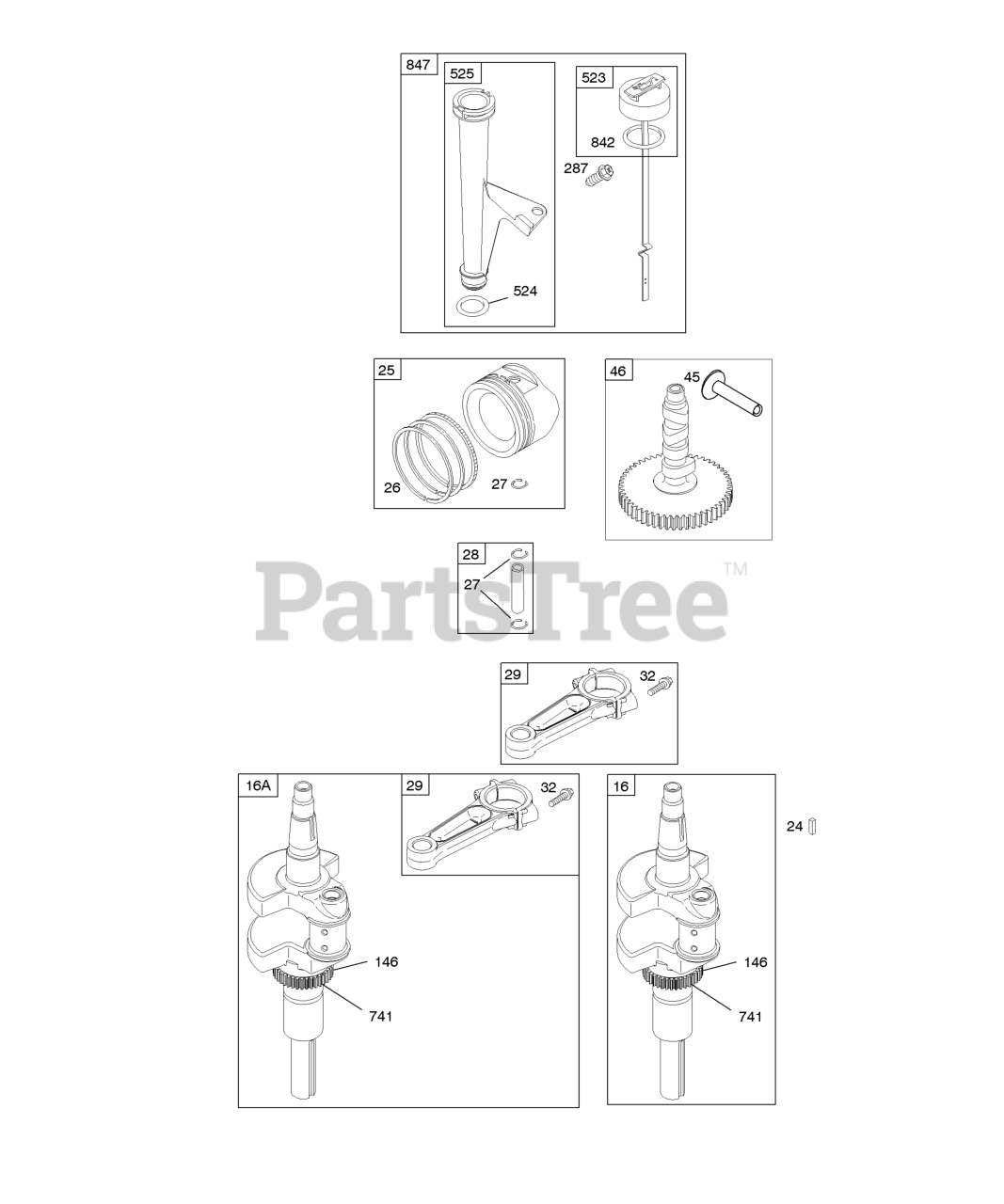

Camshaft, Crankshaft, Lubrication, Piston, Rings, Connecting Rod Parts Diagram

  • Title

16

Briggs & Stratton 699700

Crankshaft
(Superseded to 595707)

Note: Used After Code Date 04010800

$

$

Not available

16A

Briggs & Stratton 699701

Crankshaft
(Superseded to 595704)

Note: (Includes Connecting Rod) Used Before Code Date 04010900

$

$

Not available

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 9

0

25

Briggs & Stratton 499588

Piston Assembly
(Superseded to 793647)

Note: (Standard) Used Before Code Date 06082400

$150.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 793647

PISTON ASSEMBLY

Note: (Standard) Used After Code Date 06082300

$150.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 793648

PISTON ASSEMBLY

Note: (.020 Oversize) Used After Code Date 06082300

$175.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 499604

Ring Set

Note: (Standard) Used Before Code Date 06082400

$63.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499606

Ring Set

Note: (.020 Oversize) Used Before Code Date 06082400

$

$

Not available

26

Briggs & Stratton 791787

SET, Ring

Note: (Standard) Used After Code Date 06082300

$42.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 791792

SET, Ring

Note: (.020 Oversize) Used After Code Date 06082300

$50.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690975

LOCK, Piston Pin

$4.49

$

In Stock, Qty 19

0

28

Briggs & Stratton 690229

Pin-Piston

Note: (Standard)

$19.99

$

In Stock, only 2 left!

0

29

Rod-Connecting

Note: (For Replacement Connecting Rod, See Reference 16A) Used Before Code Date 04010900

$

$

Not available

29

Briggs & Stratton 699699

Rod-Connecting
(Superseded to 796209)

Note: (Standard) Used After Code Date 04010800

$20.99

$

In Stock, Qty 20+

0

32

Briggs & Stratton 690976

SCREW

Note: (Connecting Rod)

$4.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690977

TAPPET, Valve

$8.49

$

In Stock, Qty 6

0

46

Briggs & Stratton 790562

CAMSHAFT
(Superseded to 797242)

$134.99

$

In Stock, only 3 left!

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, only 3 left!

0

287

Briggs & Stratton 691108

SCREW

Note: (Dipstick Tube)

$3.49

$

In Stock, Qty 20+

0

523

Briggs & Stratton 691036

Dipstick
(Superseded to 594528)

$20.99

$

In Stock, only 2 left!

0

524

Briggs & Stratton 691032

SEAL, O-Ring

$5.99

$

In Stock, Qty 8

0

525

Briggs & Stratton 691037

TUBE, Dipstick
(Superseded to 597129)

$23.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 690980

GEAR, Timing

$16.99

$

In Stock, only 2 left!

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.99

$

In Stock, Qty 10

0

847

Briggs & Stratton 499602

Dipstick/Tube Assembly
(Superseded to 594609)

$52.99

$

In Stock, only 2 left!

0
