404707-0116-XX - Briggs & Stratton Vertical Engine

Vertical Engine

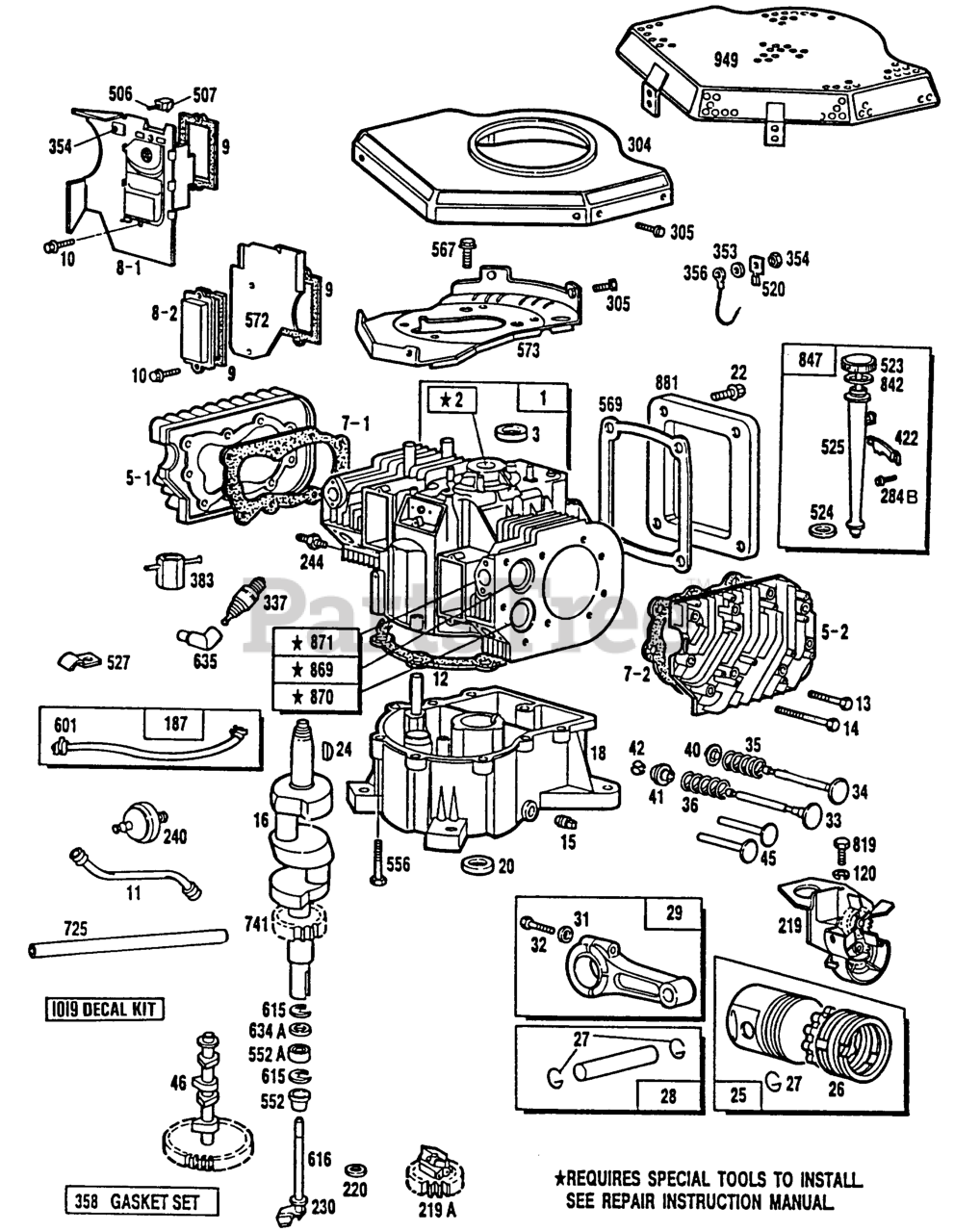

404707-0116-XX - Briggs & Stratton Vertical Engine > Parts Diagrams (6) > Cylinder,Cylinder Heads,Sump

  • Title
394941

1

Cylinder Assy (Kool-Bore)

Part# 394941 (Superseded to 498583)

OEM Warranty Repair Part for Briggs & Stratton

Not available

261623

2

Bushing-Cylinder

Part# 261623 (Superseded to 797673)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $15.58

391086

3

Seal-Oil

Part# 391086 (Superseded to 391086S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.42

212462

5-2

Head-Cylinder #2

Part# 212462 (Superseded to 493458)

OEM Warranty Repair Part for Briggs & Stratton

Not available

212461

5-1

Head-Cylinder #1

Part# 212461 (Superseded to 493457)

OEM Warranty Repair Part for Briggs & Stratton

Not available

270984

7-1

Gasket-Cylinder Head #1

Part# 270984 (Superseded to 271867S)

Note: Included in Gasket Set-Part No. 394501

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $7.66

270983

7-2

Gasket-Cylinder Head #2

Part# 270983 (Superseded to 271868S)

Note: Included in Gasket Set-Part No. 394501

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $7.83

222892

8-2

Valve Cover (Cyl. #2)

Part# 222892 (Superseded to 690415)

Note: (Used only on Ref. 572 Air Baffle with Holes for Mounting

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $6.94

393370

8-1

Breather Assembly #1

Part# 393370 (Superseded to 495754)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $37.22

27803

9

Gasket-Valve Cover

Part# 27803 (Superseded to 27803S)

Note: Included in Gasket Set-Part No. 394501

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.40

93394

10

Screw

Part# 93394 (Superseded to 691666)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

280225

11

Tube-Breather

Part# 280225 (Superseded to 691899)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $8.69

271142

12

Gasket-Crankcase Cover 1/64" Thick

Part# 271142 (Superseded to 692292)

Note: Included in Gasket Set-Part No. 394501

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $7.10

271188

12

Gasket-Crkcse (.005" Thick)

Part# 271188

Note: Included in Gasket Set-Part No. 394501

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $7.70

271189

12

Gasket-Crkcse (.009" Thick)

Part# 271189

Note: Included in Gasket Set-Part No. 394501

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $7.70

93111

13

Screw, Machine Hex (15/16" Long)

Part# 93111 (Superseded to 592840)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $31.03

93113

14

Screw, Machine Hex (2-5/16" Long)

Part# 93113 (Superseded to 690912)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.51

91084

15

Plug, Pipe (Standar (3/8")

Part# 91084 (Superseded to 690946)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.73

393382

16

Crankshaft

Part# 393382

Note: Order 94196 Key or 231160 Pin For Timing Gear Retaining Device.

OEM Warranty Repair Part for Briggs & Stratton

Not available

393552

18

Base Assy.-Crankcase

Part# 393552

OEM Warranty Repair Part for Briggs & Stratton

Not available

291675

20

Seal, Oil (Used In Crankcase Covers)

Part# 291675 (Superseded to 291675S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.98

93882

22

Screw-Sem

Part# 93882 (Superseded to 94833)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.68

222698

24

Key, Flywheel

Part# 222698 (Superseded to 222698S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.24

394955

25

Piston/Ring Kit (Std.)

Part# 394955 (Superseded to 498584)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $88.83

394956

25

Piston/Ring Kit (.010" O.S.)

Part# 394956

OEM Warranty Repair Part for Briggs & Stratton

Not available

394957

25

Piston/Ring Kit (.020" O.S.)

Part# 394957 (Superseded to 498586)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $70.83

394958

25

Piston/Ring Kit (.030" O.S.)

Part# 394958

OEM Warranty Repair Part for Briggs & Stratton

Not available

394959

26

Ring Set-Std

Part# 394959

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $43.83

394960

26

Ring Set-010

Part# 394960

OEM Warranty Repair Part for Briggs & Stratton

Not available

394961

26

Ring Set-020

Part# 394961

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $55.83

394962

26

Ring Set-030

Part# 394962

OEM Warranty Repair Part for Briggs & Stratton

Not available

260924

27

Lock-Piston Pin

Part# 260924 (Superseded to 691792)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.09

299691

28

Pin-Piston Std (Std.)

Part# 299691

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $12.43

391286

28

Pin-Piston 005 (.005 O.S.)

Part# 391286

OEM Warranty Repair Part for Briggs & Stratton

Not available

393270

29

Rod-Connecting (Standard)

Part# 393270

Note: For Connecting Rod with .020" undersize Crankpin Bore-Order No. 393714

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $68.25

220863

31

Washer (1/4 X 5/8 X 1/32)

Part# 220863

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

92909

32

Screw, Hex Head Cap

Part# 92909 (Superseded to 691133)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.92

390419

33

Valve-Exhaust (Includes Retainer Ref. No. 42)

Part# 390419 (Superseded to 691794)

OEM Warranty Repair Part for Briggs & Stratton

Not available

261528

34

Valve, Intake

Part# 261528 (Superseded to 691804)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $20.63

65906

35

Spring, Valve

Part# 65906 (Superseded to 691605)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.38

26828

36

Spring, Valve (Exhaust)

Part# 26828 (Superseded to 691597)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $6.24

221596

40

Retainer, Spring (Used With Valves With Groove In Stem)

Part# 221596 (Superseded to 690656)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.14

292260

41

Rotocoil Assy (Exhaust Valve)

Part# 292260 (Superseded to 691939)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $19.37

93630

42

Keeper, Valve (2)

Part# 93630

OEM Warranty Repair Part for Briggs & Stratton

Not available

261368

45

Tappet-Valve

Part# 261368 (Superseded to 691800)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $9.92

213100

46

Gear-Cam

Part# 213100 (Superseded to 213674)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $155.05

92290

120

Lockwasher, Zinc Pl

Part# 92290 (Superseded to 690286)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

299146

187

Line-Fuel (28" Cut To Required Length)

Part# 299146 (Superseded to 841589)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $31.03

394348

219A

Gear-Governor

Part# 394348 (Superseded to 793338)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $21.70

393415

219

Slinger-Oil

Part# 393415 (Superseded to 691964)

OEM Warranty Repair Part for Briggs & Stratton

Not available

222773

220

Washer-Thrust

Part# 222773 (Superseded to 690412)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.90

220863

230

Washer (1/4 X 5/8 X 1/32)

Part# 220863

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

394358

240

Filter, Fuel (Used With Fuel Pump)

Part# 394358 (Superseded to 394358S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.08

230318

244

Connector, Fuel

Part# 230318 (Superseded to 691764)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.55

93469

284B

Screw, Hex Head Thr

Part# 93469 (Superseded to 691044)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.63

393287

304

Housing-Blower

Part# 393287

OEM Warranty Repair Part for Briggs & Stratton

Not available

93158

305

Screw, Sem Hex Head (1/4-20 X 5/8")

Part# 93158 (Superseded to 692198)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.19

394539

337

Spark Plug (Resistor)

Part# 394539 (Superseded to 796112S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.86

92791

353

Lockwasher, Interna

Part# 92791 (Superseded to 691077)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.63

90576

354

Nut, Hex (8-32)

Part# 90576 (Superseded to 691612)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.39

391115

356

Wire-Ground

Part# 391115 (Superseded to 398808)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $8.11

394501

358

Gasket Set

Part# 394501 (Superseded to 495868)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $54.56

89838

383

Wrench-Spark Plugs

Part# 89838 (Superseded to 89838S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $5.00

222875

422

Clamp-Oil Filler

Part# 222875 (Superseded to 691176)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.43

93722

520

Terminal, Spade

Part# 93722 (Superseded to 691084)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.96

394020

523

Dipstick

Part# 394020 (Superseded to 495715)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $31.03

271157

524

Seal-O

Part# 271157 (Superseded to 692532)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.73

280224

525

Tube-Oil Filler

Part# 280224 (Superseded to 495715)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $31.03

223167

527

Support-Breather Tube

Part# 223167 (Superseded to 690423)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.21

261560

552A

Upper Bushing-Governor

Part# 261560

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $6.24

261559

552

Lower Bushing-Governor

Part# 261559

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $6.24

90366

556

Lockwasher, Zinc Pl

Part# 90366 (Superseded to 691075)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

93585

556

Screw, Sem Hex Head

Part# 93585 (Superseded to 691103)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

93730

556

Stud

Part# 93730 (Superseded to 691695)

OEM Warranty Repair Part for Briggs & Stratton

Not available

93777

567

Screw, Sem Hex Head

Part# 93777 (Superseded to 690364)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

270981

569

Gasket-Engine Base

Part# 270981 (Superseded to 692287)

Note: Included in Gasket Set-Part No. 394501

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $7.10

222912

572

Baffle, Cylinder Ai (Cyl. #2)

Part# 222912 (Superseded to 690481)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $5.89

392934

573

Back Plate Assy.

Part# 392934 (Superseded to 696041)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $37.22

93053

601

Clamp, Hose (Green)

Part# 93053 (Superseded to 791850)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.29

93851

615

Retainer-E

Part# 93851

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.86

394349

616

Crank-Governor

Part# 394349

OEM Warranty Repair Part for Briggs & Stratton

Not available

271316

634A

Foam Seal-Governor Shaft

Part# 271316

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $12.13

66538

635

Elbow-Spark Plug

Part# 66538 (Superseded to 66538S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.96

280692

725

Tubing, Fuel Line (16")

Part# 280692 (Superseded to 280866)

OEM Warranty Repair Part for Briggs & Stratton

Not available

231321

741

Gear-Timing (Used With Pin)

Part# 231321

Note: (Used with Pin)

OEM Warranty Repair Part for Briggs & Stratton

Not available

262221

741

Gear, Timing (Used With Key)

Part# 262221 (Superseded to 691277)

Note: (Used with Key)

OEM Warranty Repair Part for Briggs & Stratton

Not available

93686

819

Screw, Hex Head Tap (10-32 X 5/8")

Part# 93686 (Superseded to 691044)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.63

271170

842

Seal-Tube

Part# 271170 (Superseded to 691870)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.19

394394

847

Tube Assy.-Oil

Part# 394394 (Superseded to 495715)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $31.03

261463

869

Seat, Intake Valve

Part# 261463 (Superseded to 691802)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $12.02

210940

870

Seat-Exhaust Valve (Standard)

Part# 210940 (Superseded to 691844)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $13.75

231218

871

Bushing-Guide (Brass)

Part# 231218

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $9.92

261961

871

Bushing-Guide

Part# 261961

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $9.92

222860

881

Plate-Cover

Part# 222860

OEM Warranty Repair Part for Briggs & Stratton

Not available

393330

949

Screen-Stationary

Part# 393330

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $117.83

491259

1019

Label Kit

Part# 491259

OEM Warranty Repair Part for Briggs & Stratton

Not available
