405 (1690244) - AGCO 26" Riding Mower, 5hp 26" Mower Controls & Misc. Group Parts Diagram

26" Riding Mower, 5hp

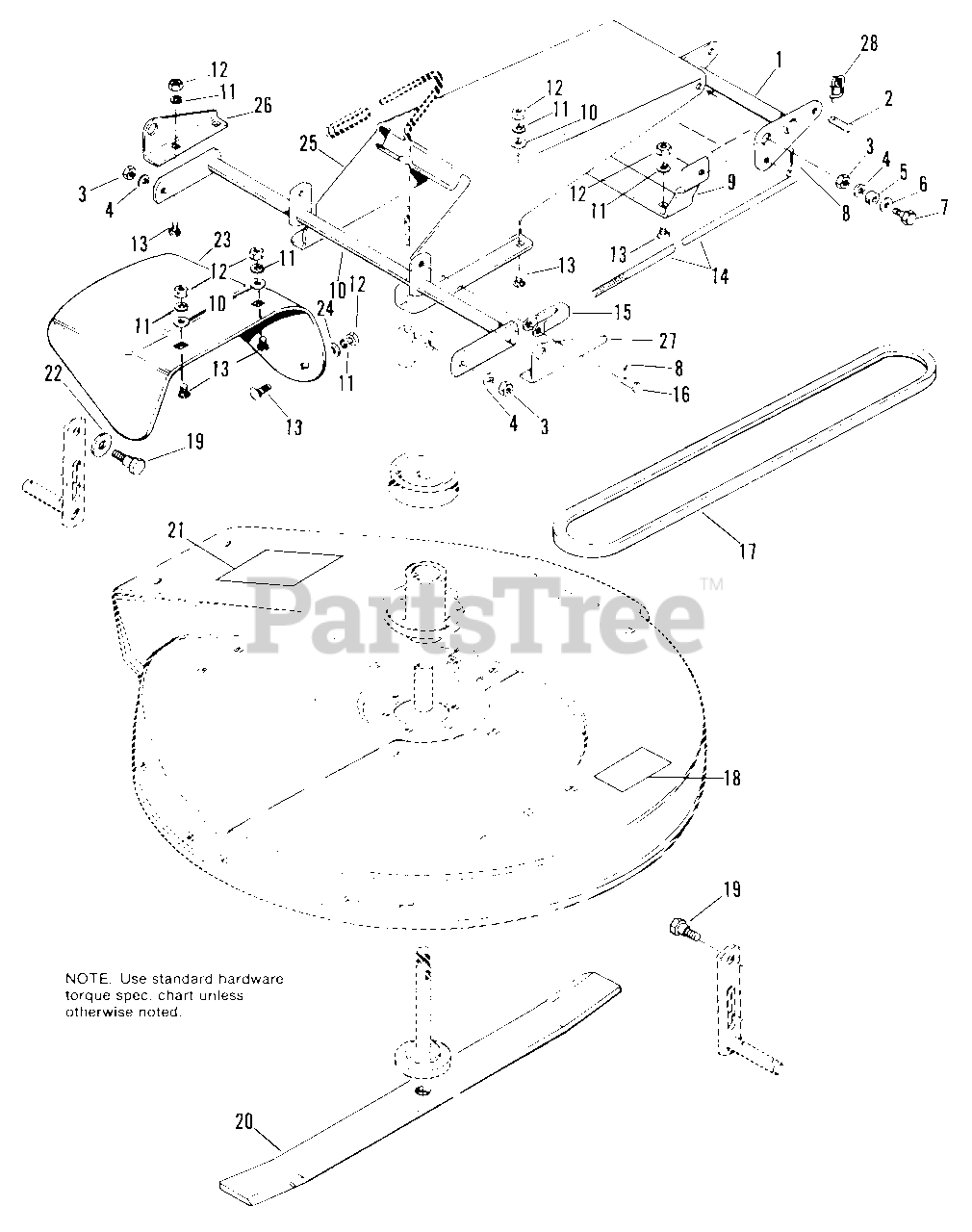

26" Mower Controls & Misc. Group Parts Diagram

  • Title

1

Simplicity 176763

BELLCRANK ASSY.

$

$

Not available

2

Simplicity 2105249SM

PIN

$16.99

$

Usually ships in 2-12 days

0

3

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

5

Simplicity 2153081

SPACER

$

$

Not available

6

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

8

Simplicity 2818448

PIN, Cotter, 3/32 x 1

$

$

Not available

9

Simplicity 176737

BRACKET

$

$

Not available

10

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

11

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 919413

BOLT, Carriage, 5/16-18 x 5/8

$

$

Not available

14

Simplicity 176768

ROD, Height Adjusting

$

$

Not available

15

Simplicity 2108157SM

CLEVIS, Adjusting

$24.99

$

Usually ships in 2-12 days

0

16

Simplicity 2823087

PIN, Yoke, 3/8

$

$

Not available

17

Simplicity 2174911SM

BELT, V

$28.99

$

Usually ships in 2-12 days

0

18

Simplicity 1704276SM

DECAL, Danger

$

$

Not available

19

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

20

Simplicity 1607534

BLADE, Mower

$

$

Not available

21

Simplicity 1704277SM

DECAL, Danger
(Superseded to 7101665YP)

$14.99

$

In Stock, only 3 left!

0

22

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

23

Simplicity 174820

DEFLECTOR

$

$

Not available

24

Simplicity 176765

LEVER ASSY.

$

$

Not available

25

Simplicity 176738

COVER, Belt

$

$

Not available

26

Simplicity 176769

BRACKET, Pivot, L.H.

$

$

Not available

27

Simplicity 176770

BRACKET, Pivot, R.H.

$

$

Not available

28

Simplicity 2176012SM

PIN, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0
