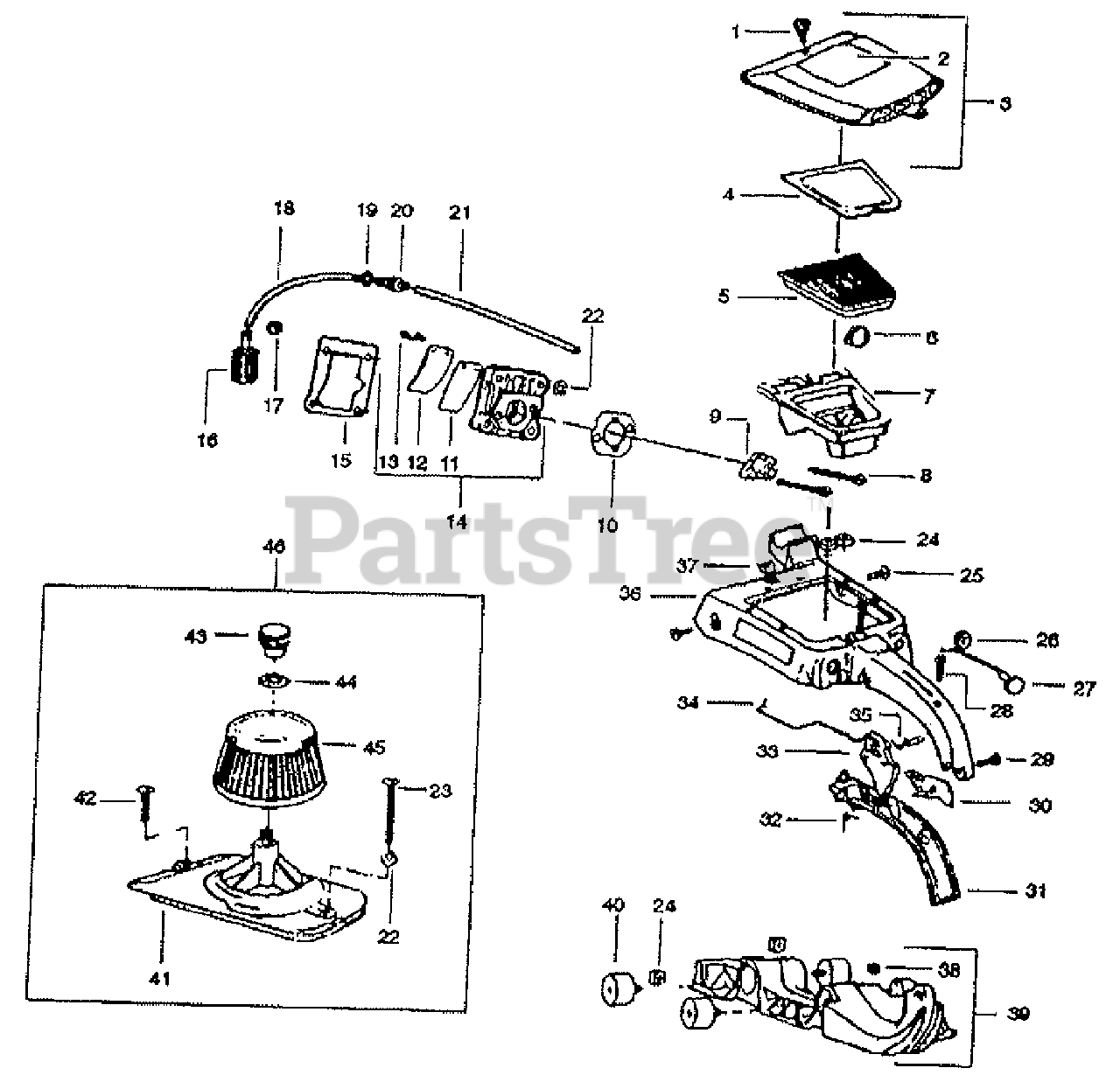

405 - Poulan Pro Chainsaw Handles Parts Diagram

Chainsaw

Handles Parts Diagram

  • Title

1

Poulan 507432817

Top Cover Knob

$

$

Not available

2

Poulan 507433724

Top Cover Decal

$

$

Not available

3

Poulan 50747629618

Top Cover Ass'y Complete

Note: (Incl. 1 &2)

$

$

Not available

4

Poulan 507475289

Air Filter (R)

$

$

Not available

5

Poulan 507433321

Air Filter (L)

$

$

Not available

6

Poulan 507432100

Clamp

$

$

Not available

7

Poulan 507432734

Air Box Boot

$

$

Not available

8

Poulan 507431657

Screw

$

$

Not available

9

Poulan 507432911

Blow Back Tube

$

$

Not available

10

Poulan 507432843

Gasket

$

$

Not available

11

Poulan 507433023

Reed Valve

$

$

Not available

12

Poulan 507432192

Reed Back Plate

$

$

Not available

13

Poulan 507432523

Reed Screw

$

$

Not available

14

Poulan 507476215

Reed Valve Ass'y

Note: (Incl. 11-13)

$

$

Not available

15

Poulan 507430191

Gasket

$

$

Not available

16

Poulan 530091878

Fuel Filter Ass'y

$

$

Not available

17

Poulan 501606501

Speed Clip

$4.99

$

In Stock, Qty 11

0

18

Poulan 507431534

Fule Hose

$

$

Not available

19

Poulan 507431271

Washer

$

$

Not available

20

Poulan 507431268

Connector

$

$

Not available

21

Poulan 507431537

Fuel Hose

$

$

Not available

22

Poulan 507431688

Washer

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 507433489

Screw

$

$

Not available

24

Poulan 507431655

Nut

$

$

Not available

25

Poulan 507432634

Screw

$

$

Not available

26

Poulan 507429650

Grommet

$

$

Not available

27

Poulan 507430202

Choke Knob & Wire Ass'y

$7.49

$

In Stock, only 1 left!

0

28

Poulan 5074331705

Screw

$

$

Not available

29

Poulan 507430887

Screw

$1.49

$

Usually ships in 3-10 days

0

30

Poulan 507430840

Throttle Lockout

$

$

Not available

31

Poulan 507476502

Lower Grip Ass'y

$

$

Not available

32

Poulan 507431092

Spring
(Superseded to 507433052)

$

$

Not available

33

Poulan 507430327

Throttle Trigger

$

$

Not available

34

Poulan 507430830

Throttle Link

$

$

Not available

35

Poulan 507430399

Throttle Pin

$1.49

$

In Stock, only 1 left!

0

36

Poulan 5074315548

Top Frame
(Superseded to 545145405)

$

$

Not available

37

Poulan 507430203

Nut

$2.49

$

Usually ships in 3-10 days

0

38

Poulan 507431645

Nut

$

$

Not available

39

Poulan 5074765128

Bottom Frame & Nut Ass'y

Note: (Incl. 38)

$

$

Not available

40

Poulan 507430197

Shcok Absorber

$

$

Not available

41

Poulan 507476463

Fillter Base Ass'y

$

$

Not available

42

Poulan 507433468

Screw

$2.49

$

Usually ships in 3-10 days

0

43

Poulan 507433470

Knob

$

$

Not available

44

Poulan 507433578

Washer

$

$

Not available

45

Poulan 507476468

Filter Element

$

$

Not available

46

Poulan 507476767

Air Filter Kit

$

$

Not available
