405 X - Husqvarna Automower Robotic Lawn Mower CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower

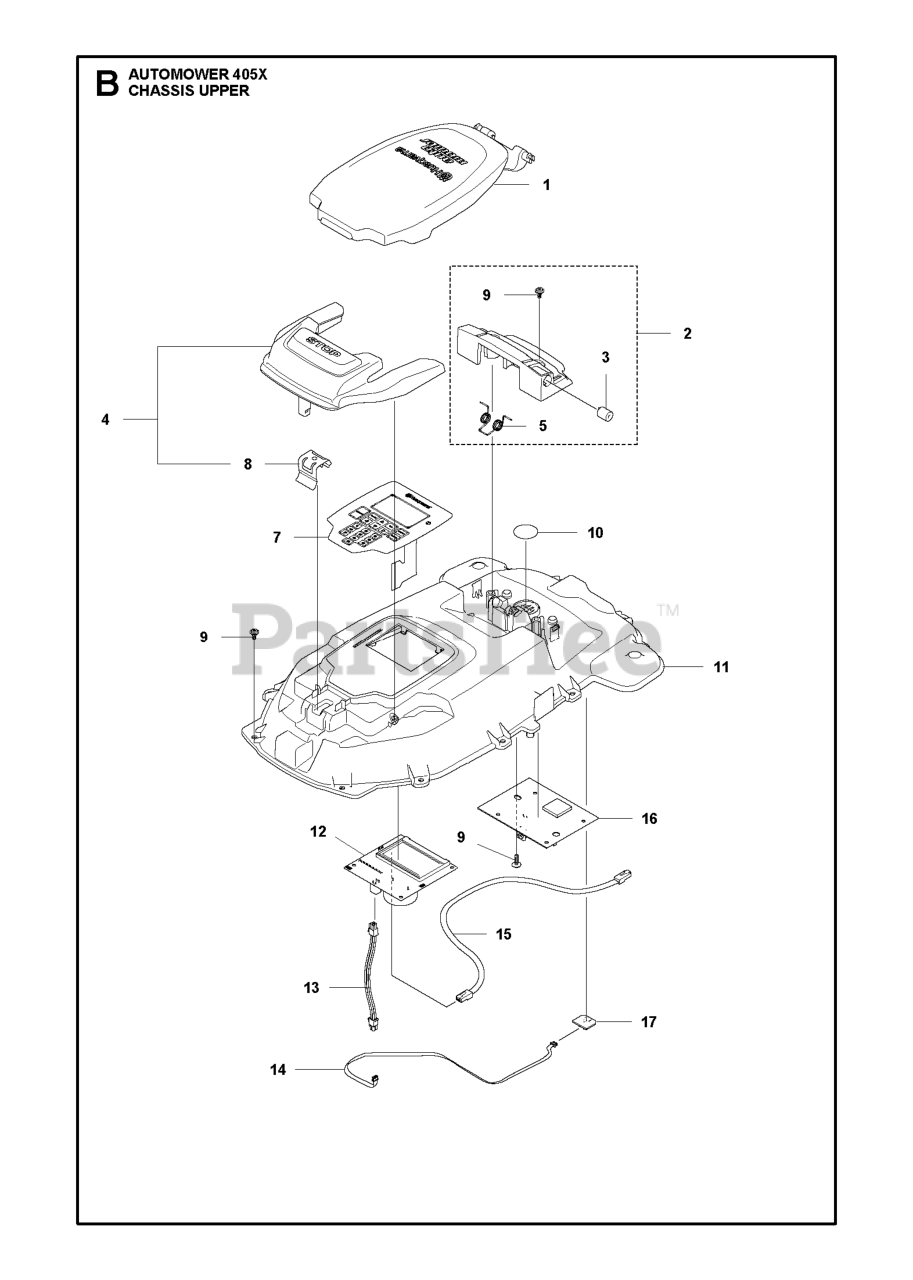

CHASSIS UPPER Parts Diagram

  • Title

16

Husqvarna 586662307

GPS MODULE 2G + 3G
(Superseded to 586662311)

Note: AM Connect, KIT, CZ,PL,SK,HU,UA,RO,GR,HR,TR,BG,RU,LT,LV,EE,ZA,BR,CL,UY,PY,AR,CO,EC,PE,CR

$513.99

$

In Stock, only 3 left!

0

2

Husqvarna 597758101

SUPPORT FRONT ASSY

Note: Front Assy

$35.99

$

Usually ships in 3-10 days

0

4

Husqvarna 599991101

BUTTON KIT STOP BUTTON AM405X/

Note: Stop Button Assy

$65.99

$

Usually ships in 3-10 days

0

14

Husqvarna 599490501

WIRING ASSY MAGNETIC SENSOR WI

Note: Magnetic Sensor Wiring

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 580352302

DAMPER TORSION FA 1100

$

$

Not available

8

Husqvarna 597349502

SPRING BUTTON STOP DELTA SEAL

Note: Stop Button

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 599451701

KEYBOARD P16

$71.99

$

Usually ships in 3-10 days

0

10

Husqvarna 577753701

KIT AIR FILTER KIT 305 - 10 PC

$59.99

$

Usually ships in 3-10 days

0

12

Husqvarna 598902801

PRINTED CIRCUIT ASSY PCBA APPL

Note: HMI Board

$299.99

$

Usually ships in 3-10 days

0

17

Husqvarna 598916001

PRINTED CIRCUIT ASSY PCBA MAGN

Note: Manetic Sensor Board

$35.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 599295902

NEEDS DESCRIPTION

Note: HMI Cover AM405X

$

$

Currently unavailable

5

Husqvarna 585255401

TORSION SPRING DT=1,3MM

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 599295801

CHASSIS UPPER - P16

Note: Upper

$119.99

$

Usually ships in 3-10 days

0

15

Husqvarna 589350806

WIRING ASSY MODULAR JACK 6/6 R

Note: CBT Wiring

$

$

Not available

13

Husqvarna 591203101

Wires

Note: HMI Cable

$23.99

$

Usually ships in 3-10 days

0

16

Husqvarna 586662309

NEEDS DESCRIPTION

Note: AM Connect, KIT, UK,IE,CH,IT,ES,PT,DE,FR,AT,NL,BE,LUX,SI,SE,NO,DK,FI

$

$

Currently unavailable
