405000x8C - Scotts 40" Lawn Tractor (2004)

40" Lawn Tractor

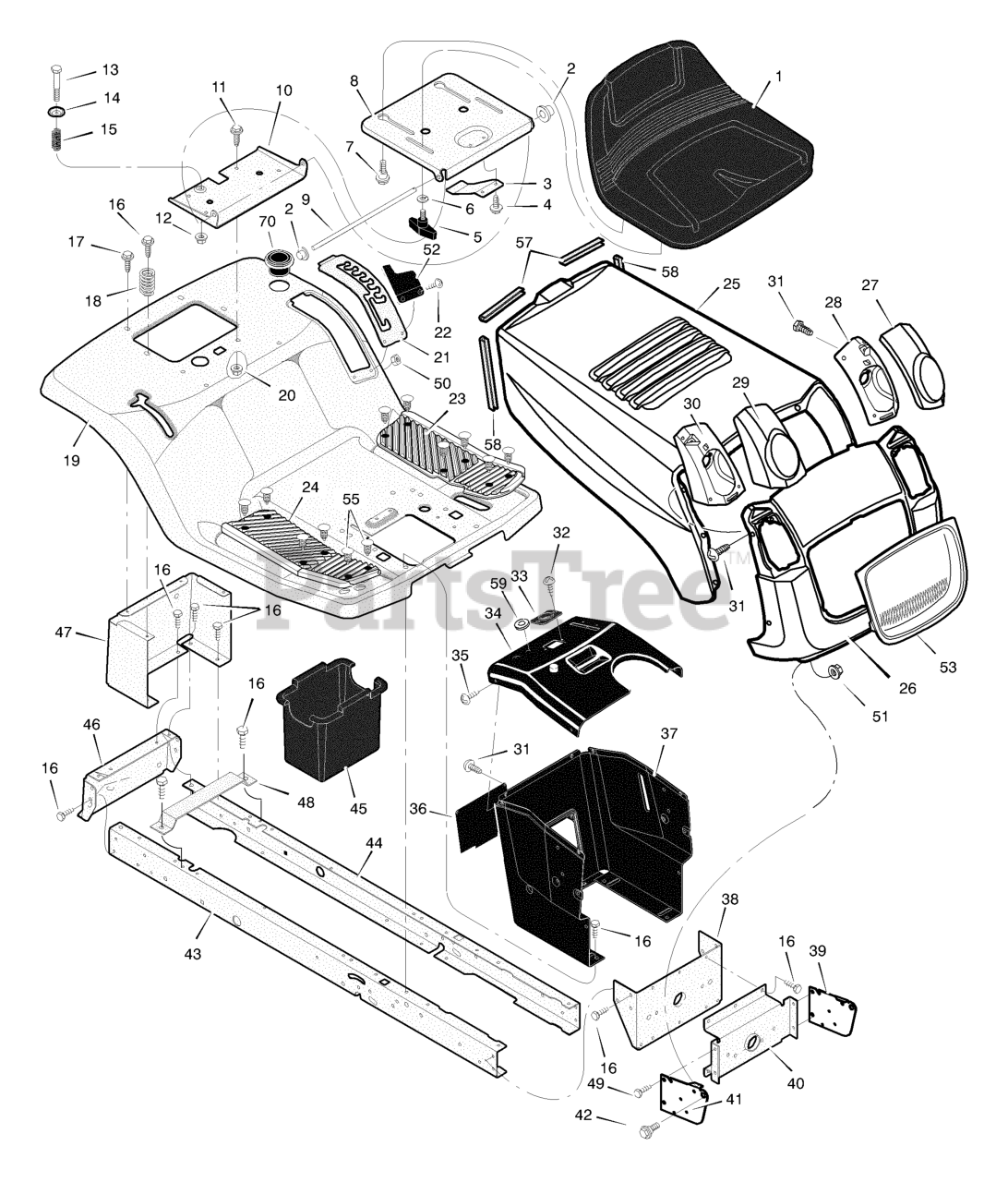

405000x8C - Scotts 40" Lawn Tractor (2004) > Parts Diagrams (7) > Chassis & Hood

  • Title
690566MA

1

Seat

Part# 690566MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $318.85

028X23MA

2

Cap, Push On

Part# 028X23MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.34

094057MA

3

Spring

Part# 094057MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.53

26X229MA

4

Screw

Part# 26X229MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.34

1001054MA

5

Bolt, Wing

Part# 1001054MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

017X47MA

6

Washer

Part# 017X47MA

OEM Warranty Repair Part for Murray

Not available

009X56MA

7

Bolt, Shoulder

Part# 009X56MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.01

094154E700

8

Support, Seat

Part# 094154E700

OEM Warranty Repair Part for Murray

Currently unavailable

094156  Z

9

Rod, Pivot

Part# 094156 Z

Not available

1001648E700

10

Bracket, Pivot

Part# 1001648E700

OEM Warranty Repair Part for Murray

Currently unavailable

001X45MA

11

Bolt

Part# 001X45MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.46

015X89MA

12

Nut

Part# 015X89MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.57

009X55MA

13

Bolt, Shoulder

Part# 009X55MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.96

094155  Z

14

Washer

Part# 094155 Z

OEM Warranty Repair Part for Murray

Currently unavailable

164X31

15

Spring

Part# 164X31 (Superseded to 164X31MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.87

26X249MA

16

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.19

26X263MA

17

Screw

Part# 26X263MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.57

164X30MA

18

Spring

Part# 164X30MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $13.74

1001558E700

19

Deck, Seat

Part# 1001558E700

OEM Warranty Repair Part for Murray

Currently unavailable

15X123MA

20

Nut

Part# 15X123MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.85

094151E701MA

21

Plate, Index

Part# 094151E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $15.15

009X47MA

22

Screw

Part# 009X47MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.34

1001582

23

Mat, Left

Part# 1001582

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $22.14

1001578

24

Mat, Right

Part# 1001578

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $21.69

1001538E700MA

25

Hood

Part# 1001538E700MA (Superseded to 1001538E701MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $249.09

1001531E700MA

26

Grille

Part# 1001531E700MA (Superseded to 1001531E701MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $92.57

1001546MA

27

Lens, Left

Part# 1001546MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $11.35

1001544E700

28

Housing, Left Headlamp

Part# 1001544E700

OEM Warranty Repair Part for Murray

Currently unavailable

1001545MA

29

Lens, Right

Part# 1001545MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $9.56

1001543E700

30

Housing, Right Headlamp

Part# 1001543E700

OEM Warranty Repair Part for Murray

Currently unavailable

26X270

31

Screw

Part# 26X270 (Superseded to 26X270MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.85

26X238MA

32

Screw

Part# 26X238MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.19

1001491MA

33

Bearing, Steering

Part# 1001491MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.86

1001584E701MA

34

Dash

Part# 1001584E701MA (Superseded to 7300774ZMA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $65.52

26X201MA

35

Screw

Part# 26X201MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.34

093007E701MA

36

Panel, Access

Part# 093007E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $21.75

095318E701MA

37

Support, Dash

Part# 095318E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $128.91

1001270E701MA

38

Bracket, Rear Hanger

Part# 1001270E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $152.16

094085E701MA

39

Support, Left Grille

Part# 094085E701MA

OEM Warranty Repair Part for Murray

Not available

094007E701MA

40

Axle, Hanger

Part# 094007E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $26.72

094084E701MA

41

Support, Right Grille

Part# 094084E701MA

OEM Warranty Repair Part for Murray

Not available

009X58MA

42

Bolt, Shoulder

Part# 009X58MA (Superseded to 702315)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.19

1001268E701

43

Frame, Right

Part# 1001268E701

OEM Warranty Repair Part for Murray

Not available

1001269E701MA

44

Frame, Left

Part# 1001269E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $85.53

690424MA

45

Container, Battery

Part# 690424MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $34.16

1001002E701

46

Plate, Hitch

Part# 1001002E701

OEM Warranty Repair Part for Murray

Not available

690434E701MA

47

Panel, Rear

Part# 690434E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $78.54

690482E701

48

Support, Battery

Part# 690482E701

OEM Warranty Repair Part for Murray

Not available

26X277MA

49

Screw

Part# 26X277MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.41

015X81MA

50

Nut

Part# 015X81MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.57

15X124

51

Nut

Part# 15X124

OEM Warranty Repair Part for Murray

Not available

094610MA

52

Cover, Lift Detent

Part# 094610MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.19

1001540MA

53

Insert, Grille

Part# 1001540MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $24.37

0193X1MA

55

Fastener, Panel

Part# 0193X1MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.02

1001652MA

57

Trim, Hood (3.75")

Part# 1001652MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $10.85

1001653MA

58

Trim, Hood (6.5")

Part# 1001653MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $8.72

1001755MA

59

Grommet, Parking Brake

Part# 1001755MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.96

1001542MA

70

Holder, Cup

Part# 1001542MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $9.95

1001433MA

--

Parts Bag, Assembly

Part# 1001433MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $8.55

F-040735L

--

Instruction Book & Parts List

Part# F-040735L

OEM Warranty Repair Part for Murray

Currently unavailable
