405000x8C - Scotts 40" Lawn Tractor (2004)

40" Lawn Tractor

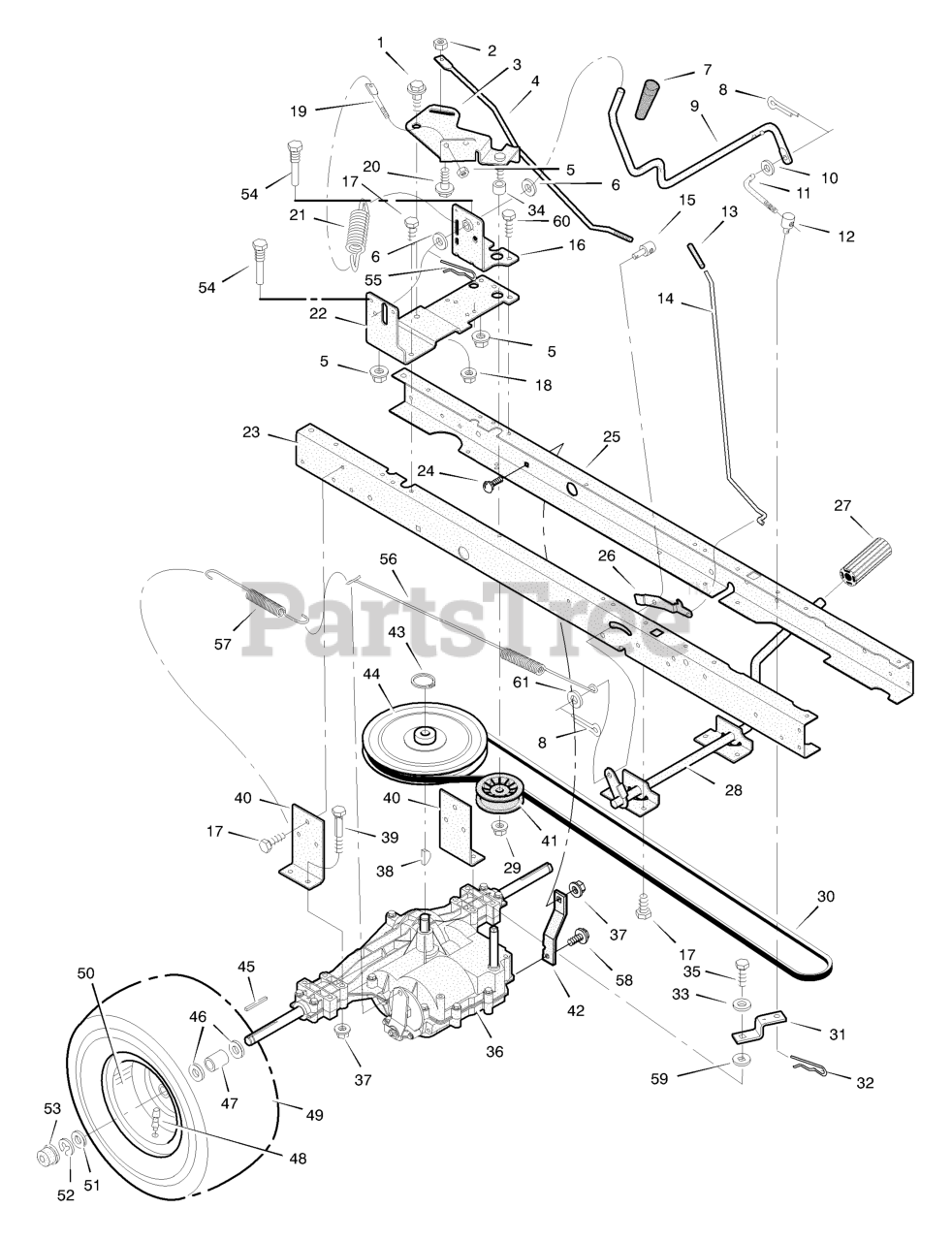

405000x8C - Scotts 40" Lawn Tractor (2004) > Parts Diagrams (7) > Motion Drive

  • Title
009X39MA

1

Bolt, Shoulder

Part# 009X39MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.91

015X89MA

2

Nut, Hex

Part# 015X89MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.57

690173ZMA

3

ARM, Idler

Part# 690173ZMA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $20.52

094041  Z

4

Rod, Clutch

Part# 094041 Z

OEM Warranty Repair Part for Murray

Currently unavailable

015X79MA

5

Nut

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.35

17X102MA

6

Washer

Part# 17X102MA (Superseded to 703128)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.90

092697MA

7

Grip

Part# 092697MA (Superseded to 1753233YP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.81

030X20MA

8

Pin, Cotter

Part# 030X20MA (Superseded to 703312)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.23

094043  Z

9

Lever, Shift

Part# 094043 Z

OEM Warranty Repair Part for Murray

Currently unavailable

017X47MA

10

Washer

Part# 017X47MA

OEM Warranty Repair Part for Murray

Not available

094044  Z

11

Link, Shift

Part# 094044 Z

Not available

021920ZMA

12

Nut, Adjuster

Part# 021920ZMA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $11.17

091079MA

13

Grip

Part# 091079MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.74

1001245  Z

14

Rod, Parking Brake

Part# 1001245 Z

OEM Warranty Repair Part for Murray

Currently unavailable

094815

15

Nut, Adjuster

Part# 094815

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $19.22

1001303  Z

16

Bracket, Shift Pivot

Part# 1001303 Z

OEM Warranty Repair Part for Murray

Currently unavailable

26X249MA

17

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.19

015X84MA

18

Nut

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.36

094042  Z

19

Mount, Stud Spring

Part# 094042 Z

Not available

009X54MA

20

Bolt, Shoulder

Part# 009X54MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.24

165X116MA

21

Spring, Extension

Part# 165X116MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.70

1001302E701

22

Bracket, Right Shifter

Part# 1001302E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $29.63

1001268E701

23

Frame, Right

Part# 1001268E701

OEM Warranty Repair Part for Murray

Not available

002X53MA

24

Bolt, Carriage

Part# 002X53MA (Superseded to 703159)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.01

1001269E701MA

25

Frame, Left

Part# 1001269E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $85.53

094045  Z

26

Latch, Parking Brake

Part# 094045 Z

OEM Warranty Repair Part for Murray

Currently unavailable

021544MA

27

Pedal

Part# 021544MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $7.82

094038E701MA

28

Lever, Brake/Clutch

Part# 094038E701MA (Superseded to 7400256ZMA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $58.86

015X98MA

29

Nut

Part# 015X98MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.36

037X87MA

30

Belt, Motion Drive

Part# 037X87MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $23.31

1001825  Z

31

Yoke, DANA Shift

Part# 1001825 Z

OEM Warranty Repair Part for Murray

Currently unavailable

0031X6MA

32

Pin, Hair

Part# 0031X6MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.01

017X38MA

33

Washer

Part# 017X38MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.34

690369MA

34

Spacer

Part# 690369MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.19

06X105MA

35

Bolt

Part# 06X105MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.30

-----

36

Transaxle, DANA **

Part# -----

Not available

015X88MA

37

Nut

Part# 015X88MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.90

020697MA

38

Key, Woodruff

Part# 020697MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.74

01X155MA

39

Bolt

Part# 01X155MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.68

094008E701MA

40

Bracket, Transaxle

Part# 094008E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $26.27

690409MA

41

Pulley

Part# 690409MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $14.37

094433E701MA

42

BRACKET, Torque Strap, LH

Part# 094433E701MA (Superseded to 7300845BMYP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $11.68

0011X7MA

43

E-Ring

Part# 0011X7MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.74

095094MA

44

Pulley, Drive

Part# 095094MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $40.58

021553MA

45

Key, Square

Part# 021553MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.68

17X160MA

46

Washer

Part# 17X160MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.68

1401103MA

47

SPACER, Rear Wheel

Part# 1401103MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $9.06

024373MA

48

Stem, Valve

Part# 024373MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $7.48

091923MA

49

Tire *

Part# 091923MA

OEM Warranty Repair Part for Murray

Not available

407049MA

--

Tube

Part# 407049MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $52.71

092288601

50

Wheel & Tire Assembly

Part# 092288601

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $171.95

17X195MA

51

Washer

Part# 17X195MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.90

0011X3MA

52

E-Ring

Part# 0011X3MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.35

094618MA

53

Hub Cap

Part# 094618MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.35

093349MA

54

Guide, Belt

Part# 093349MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.19

0031X4MA

55

Pin, Hair

Part# 0031X4MA (Superseded to 703300)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.01

165X115MA

56

Spring, Extension

Part# 165X115MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $15.82

165X92MA

57

Spring, Extension

Part# 165X92MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.90

26X216MA

58

Screw

Part# 26X216MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.92

17X148MA

59

Washer

Part# 17X148MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.47

26X267MA

60

Screw

Part# 26X267MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.13

17X169MA

61

Washer

Part# 17X169MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.34
