405000x8C - Scotts 40" Lawn Tractor (2004)

40" Lawn Tractor

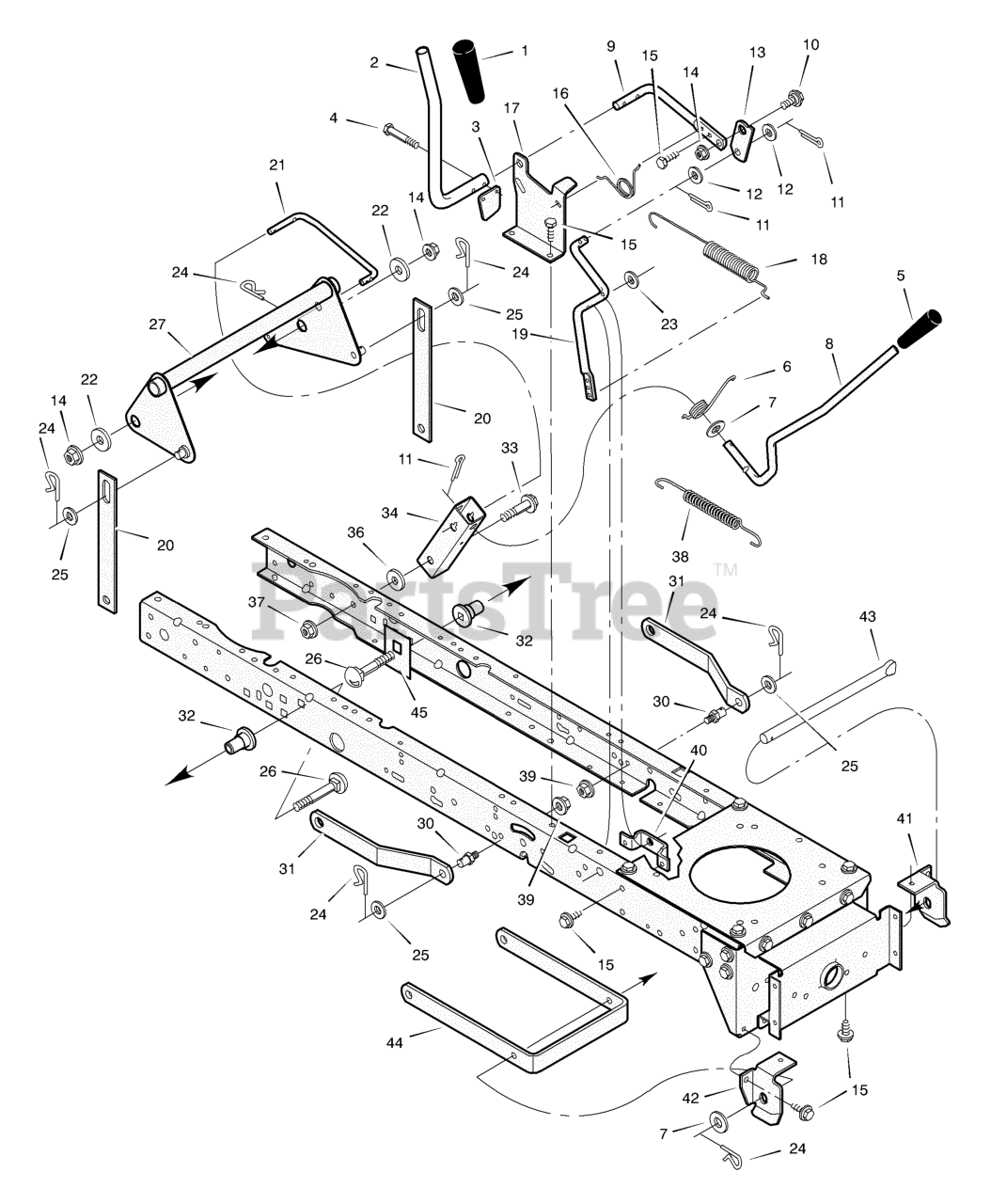

405000x8C - Scotts 40" Lawn Tractor (2004) > Parts Diagrams (7) > Mower Housing Suspension

  • Title
092698MA

1

Grip

Part# 092698MA (Superseded to 1753233YP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.81

094157  Z

2

Handle

Part# 094157 Z

OEM Warranty Repair Part for Murray

Currently unavailable

094022  Z

3

Pad, Switch

Part# 094022 Z

OEM Warranty Repair Part for Murray

Currently unavailable

0025X3MA

4

Screw, Hex

Part# 0025X3MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.68

092697MA

5

Grip

Part# 092697MA (Superseded to 1753233YP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.81

166X40MA

6

Spring

Part# 166X40MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.64

17X103MA

7

Washer

Part# 17X103MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.35

690533MA

8

Handle, Lift

Part# 690533MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $29.80

094017  Z

9

Lever, PTO

Part# 094017 Z

OEM Warranty Repair Part for Murray

Currently unavailable

009X39MA

10

Bolt, Shoulder

Part# 009X39MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.91

030X20MA

11

Pin, Cotter

Part# 030X20MA (Superseded to 703312)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.23

017X57MA

12

Washer

Part# 017X57MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.02

094004  Z

13

Link, PTO

Part# 094004 Z

OEM Warranty Repair Part for Murray

Currently unavailable

015X84MA

14

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.36

26X249MA

15

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.19

166X39MA

16

Spring

Part# 166X39MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.58

094018E701MA

17

Bracket, PTO

Part# 094018E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $7.60

165X119MA

18

Spring

Part# 165X119MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.23

690394E701MA

19

Crank, PTO

Part# 690394E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $29.40

690212E701MA

20

Link, Lift

Part# 690212E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $28.96

690122E701MA

21

Link, Lift Handle

Part# 690122E701MA (Superseded to 7300877ZMA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $16.38

17X168ZMA

22

Washer

Part# 17X168ZMA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.75

017X57MA

23

Washer

Part# 017X57MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.02

0031X4MA

24

Pin, Hair

Part# 0031X4MA (Superseded to 703300)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.01

017X91  Z

25

Washer

Part# 017X91 Z

OEM Warranty Repair Part for Murray

Currently unavailable

002X85MA

26

Bolt, Carriage

Part# 002X85MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.47

1001111E701MA

27

Lever Assembly, Lift

Part# 1001111E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $104.09

094067MA

30

Pin

Part# 094067MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.58

094055E701MA

31

Bracket, Rear Suspension

Part# 094055E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $9.84

690151MA

32

Spacer, Lifter

Part# 690151MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.53

009X53MA

33

Bolt, Shoulder

Part# 009X53MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.70

094015E700

34

Bracket, Pivot

Part# 094015E700

OEM Warranty Repair Part for Murray

Currently unavailable

17X191MA

36

Washer

Part# 17X191MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.35

015X84MA

37

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.36

165X131MA

38

Spring

Part# 165X131MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $9.45

015X68MA

39

Nut, Flange

Part# 015X68MA

OEM Warranty Repair Part for Murray

Not available

094005E700

40

Bracket, PTO

Part# 094005E700

OEM Warranty Repair Part for Murray

Not available

094027E701MA

41

Hanger, Left Deck

Part# 094027E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $16.38

094026E701MA

42

Hanger, Right Deck

Part# 094026E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $16.38

094158  Z

43

Rod, Hanger

Part# 094158 Z

Not available

690539E701MA

44

Bracket, Suspension

Part# 690539E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $31.14

1001098E701

45

Plate, Stiffening

Part# 1001098E701

OEM Warranty Repair Part for Murray

Not available
