405000x8C - Scotts 40" Lawn Tractor (2004)

40" Lawn Tractor

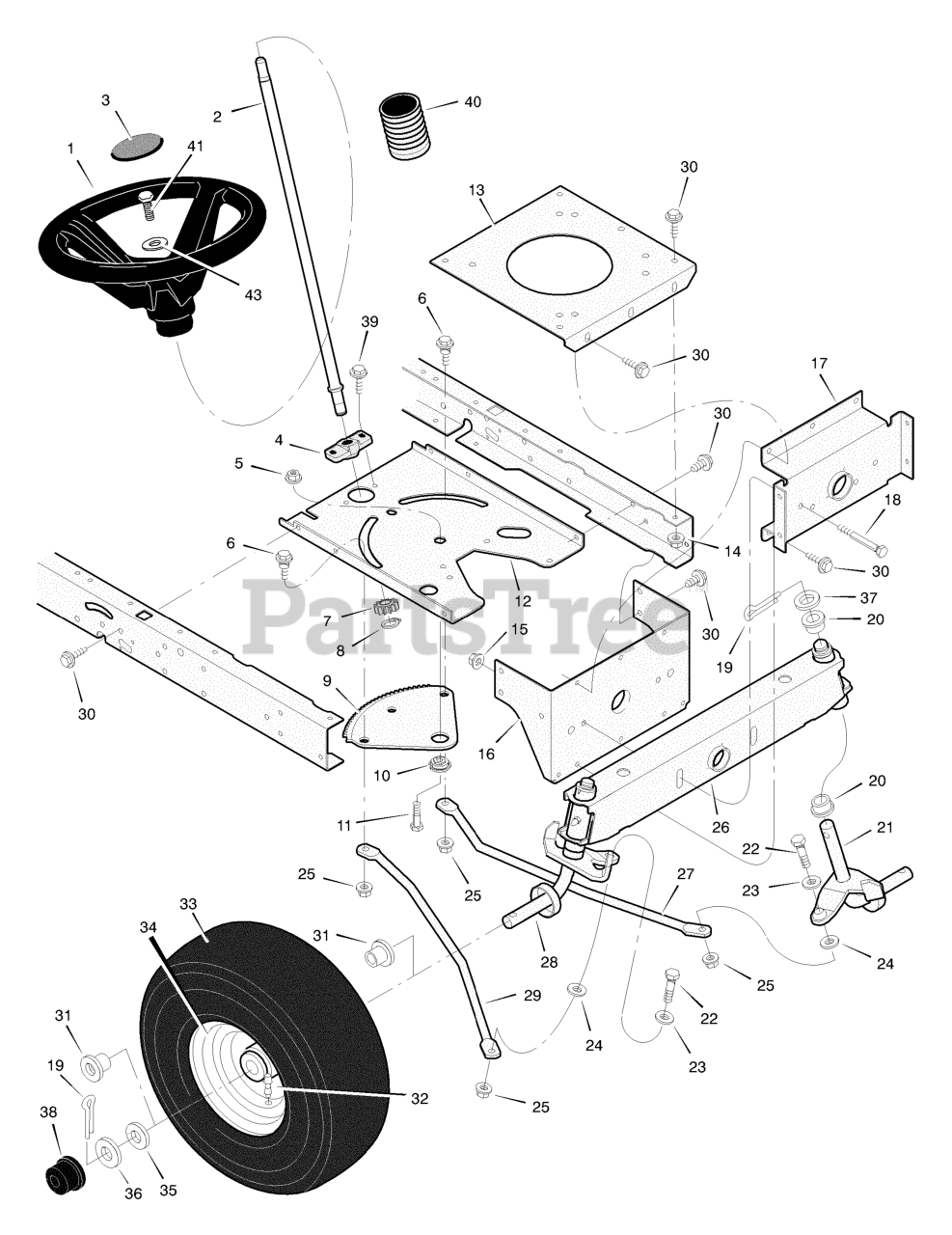

405000x8C - Scotts 40" Lawn Tractor (2004) > Parts Diagrams (7) > Steering

  • Title
095336

1

Wheel, Steering

Part# 095336

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $58.70

690337MA

2

Post, Steering

Part# 690337MA (Superseded to 690581MA)

OEM Warranty Repair Part for Murray

Not available

095338MA

3

Cap, Steering Wheel

Part# 095338MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.41

094124MA

4

Bearing

Part# 094124MA

Note: (Included with Ref. No. 2)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.96

15X111MA

5

Nut, Flange

Part# 15X111MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.24

009X57MA

6

Bolt, Shoulder

Part# 009X57MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.04

690183MA

7

Gear, Pinion

Part# 690183MA

Note: (Included with Ref. No. 2)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $7.32

011X25MA

8

Ring, Snap

Part# 011X25MA

Note: (Included with Ref. No. 2)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.02

094121MA

9

Gear, Sector

Part# 094121MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $26.78

094123MA

10

Bearing

Part# 094123MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $8.11

001X84MA

11

Bolt

Part# 001X84MA (Superseded to 703585)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.57

1001121E701MA

12

Plate, Steering

Part# 1001121E701MA (Superseded to 7300867ZMA)

OEM Warranty Repair Part for Murray

Not available

094006E700

13

Plate, Engine

Part# 094006E700

OEM Warranty Repair Part for Murray

Currently unavailable

015X88MA

14

Nut, Flange

Part# 015X88MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.90

15X118MA

15

Nut, Flange

Part# 15X118MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.57

1001270E700MA

16

Bracket, Hanger

Part# 1001270E700MA (Superseded to 1001270E701MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $152.16

94007E701

17

Axle, Hanger

Part# 94007E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $26.72

01X146MA

18

Bolt

Part# 01X146MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.34

030X49MA

19

Pin, Cotter

Part# 030X49MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.34

690150MA

20

Bearing

Part# 690150MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.43

094576E701MA

21

Spindle Assembly, Left

Part# 094576E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $131.14

01X111MA

22

Bolt

Part# 01X111MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.34

17X104MA

23

Washer

Part# 17X104MA (Superseded to 710083MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.58

017X53  Z

24

Washer

Part# 017X53 Z

OEM Warranty Repair Part for Murray

Currently unavailable

015X84MA

25

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.36

690210MA

26

Axle Assembly

Part# 690210MA (Superseded to 7601037MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $313.54

095329E701MA

27

Drag Link, Left

Part# 095329E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $14.98

094575E701MA

28

Spindle Assembly, Right

Part# 094575E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $131.14

095328E701MA

29

Drag Link, Right

Part# 095328E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $14.98

26X249MA

30

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.19

091334

31

Bearing, Wheel

Part# 091334

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $17.50

024373MA

32

Stem, Valve

Part# 024373MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $7.48

091912MA

33

Tire *

Part# 091912MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $77.87

407924

--

Tube

Part# 407924

OEM Warranty Repair Part for Murray

Not available

1001840601

34

Wheel and Tire Assembly

Part# 1001840601

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $86.14

17X195MA

35

Washer

Part# 17X195MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.90

17X192MA

36

Washer

Part# 17X192MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.79

17X113MA

37

Washer

Part# 17X113MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.02

094618MA

38

Hub Cap

Part# 094618MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.35

26X267MA

39

Screw

Part# 26X267MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.13

092059MA

40

Bellows

Part# 092059MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.65

0025X3MA

41

Screw, Hex

Part# 0025X3MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.68

17X146MA

43

Washer

Part# 17X146MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.90
