405000x8D - Scotts 40" Lawn Tractor (2004)

40" Lawn Tractor

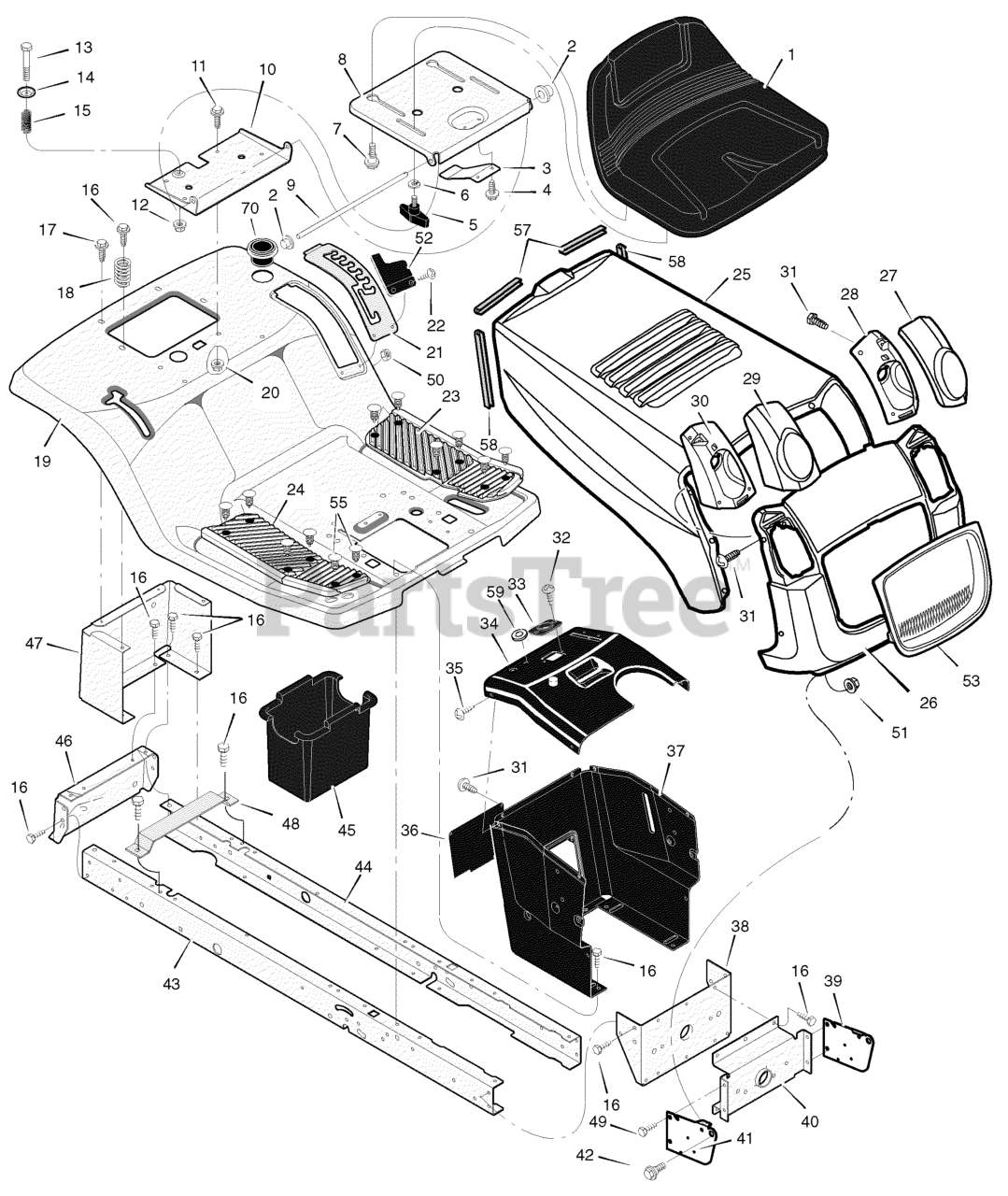

405000x8D - Scotts 40" Lawn Tractor (2004) > Parts Diagrams (7) > Chassis & Hood

  • Title
690566

1

Seat

Part# 690566

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $13.01

028X23

2

Cap, Push 0n

Part# 028X23 (Superseded to 703948)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.85

94057

3

Spring

Part# 94057

OEM Warranty Repair Part for Murray

Not available

26X229

4

Screw

Part# 26X229 (Superseded to 26X229MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.03

1001054

5

Bolt, Wing

Part# 1001054 (Superseded to 1001054MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.67

017X47MA

6

Washer

Part# 017X47MA

OEM Warranty Repair Part for Murray

Not available

009X56

7

Bolt, Shoulder

Part# 009X56 (Superseded to 009X56MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

094154E700

8

Support, Seat

Part# 094154E700

OEM Warranty Repair Part for Murray

Currently unavailable

094156Z

9

Rod, Pivot

Part# 094156Z (Superseded to 094156ZMA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $7.18

1001648E700

10

Bracket, Pivot

Part# 1001648E700

OEM Warranty Repair Part for Murray

Currently unavailable

001X45

11

Bolt

Part# 001X45 (Superseded to 703822)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.02

015X89

12

Nut

Part# 015X89 (Superseded to 015X89MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.21

009X55

13

Bolt, Shoulder

Part# 009X55 (Superseded to 009X55MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92

094155Z

14

Washer

Part# 094155Z

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.33

164X31

15

Spring

Part# 164X31 (Superseded to 164X31MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.83

26X249

16

Screw

Part# 26X249 (Superseded to 26X249MA)

OEM Warranty Repair Part for Murray

Not available

26X263

17

Screw

Part# 26X263 (Superseded to 26X263MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.27

164X30

18

Spring

Part# 164X30 (Superseded to 164X30MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $12.83

1001558E700

19

Deck, Seat

Part# 1001558E700

OEM Warranty Repair Part for Murray

Currently unavailable

15X123

20

Nut

Part# 15X123 (Superseded to 15X123MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.86

094151E701

21

Plate, Index

Part# 094151E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $15.17

009X47

22

Screw

Part# 009X47 (Superseded to 009X47MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.03

1001582

23

Mat, Left

Part# 1001582

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $22.17

1001578

24

Mat, Right

Part# 1001578

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $21.76

1001538E700

25

Hood

Part# 1001538E700

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $249.78

1001531E700

26

Grille

Part# 1001531E700

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $92.81

1001546

27

Lens, Left

Part# 1001546

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $9.57

1001544E700

28

Housing, Left Headlamp

Part# 1001544E700

OEM Warranty Repair Part for Murray

Currently unavailable

1001545

29

Lens, Right

Part# 1001545

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $9.57

1001543E700

30

Housing, Right Headlamp

Part# 1001543E700

OEM Warranty Repair Part for Murray

Currently unavailable

26X270

31

Screw

Part# 26X270 (Superseded to 26X270MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.74

26X238

32

Screw

Part# 26X238

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.15

1001491

33

Bearing, Steering

Part# 1001491 (Superseded to 1001491MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.85

1001584E701

34

Dash

Part# 1001584E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $65.68

26X201

35

Screw

Part# 26X201 (Superseded to 26X201MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

093007E701

36

Panel, Access

Part# 093007E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $21.82

095318E701

37

Support, Dash

Part# 095318E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $129.27

1001270E701

38

Bracket, Rear Hanger

Part# 1001270E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $152.60

094085E701MA

39

Support, Left Grille

Part# 094085E701MA

OEM Warranty Repair Part for Murray

Not available

094007E701

40

Axle, Hanger

Part# 094007E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $26.78

094084E701MA

41

Support, Right Grille

Part# 094084E701MA

OEM Warranty Repair Part for Murray

Not available

009X58

42

Bolt, Shoulder

Part# 009X58 (Superseded to 702315)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.84

1001268E701

43

Frame, Right

Part# 1001268E701

OEM Warranty Repair Part for Murray

Not available

1001269E701

44

Frame, Left

Part# 1001269E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $85.81

690424

45

Container, Battery

Part# 690424

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $7.23

1001002E701

46

Plate, Hitch

Part# 1001002E701

OEM Warranty Repair Part for Murray

Not available

690434E701

47

Panel, Rear

Part# 690434E701

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $78.75

690482E701

48

Support, Battery

Part# 690482E701

OEM Warranty Repair Part for Murray

Not available

26X277

49

Screw

Part# 26X277 (Superseded to 26X277MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.38

015X81

50

Nut

Part# 015X81 (Superseded to 015X81MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

15X124

51

Nut

Part# 15X124

OEM Warranty Repair Part for Murray

Not available

94610

52

Cover, Lift Detent

Part# 94610

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.20

1001540

53

Insert, Grille

Part# 1001540

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $24.44

0193X1

55

Fastener, Panel

Part# 0193X1 (Superseded to 0193X1MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

1001652

57

Trim, Hood (3.75")

Part# 1001652

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $10.85

1001653

58

Trim, Hood (6.5")

Part# 1001653

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $8.69

1001755

59

Grommet, Parking Brake

Part# 1001755

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92

1001542

70

Holder, Cup

Part# 1001542

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $9.98

1001433

--

Parts Bag, Assembly

Part# 1001433

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $8.58

F-040775L

--

Instruction Book & Parts List

Part# F-040775L

OEM Warranty Repair Part for Murray

Currently unavailable
