405000x8D - Scotts 40" Lawn Tractor (2004) Motion Drive Parts Diagram

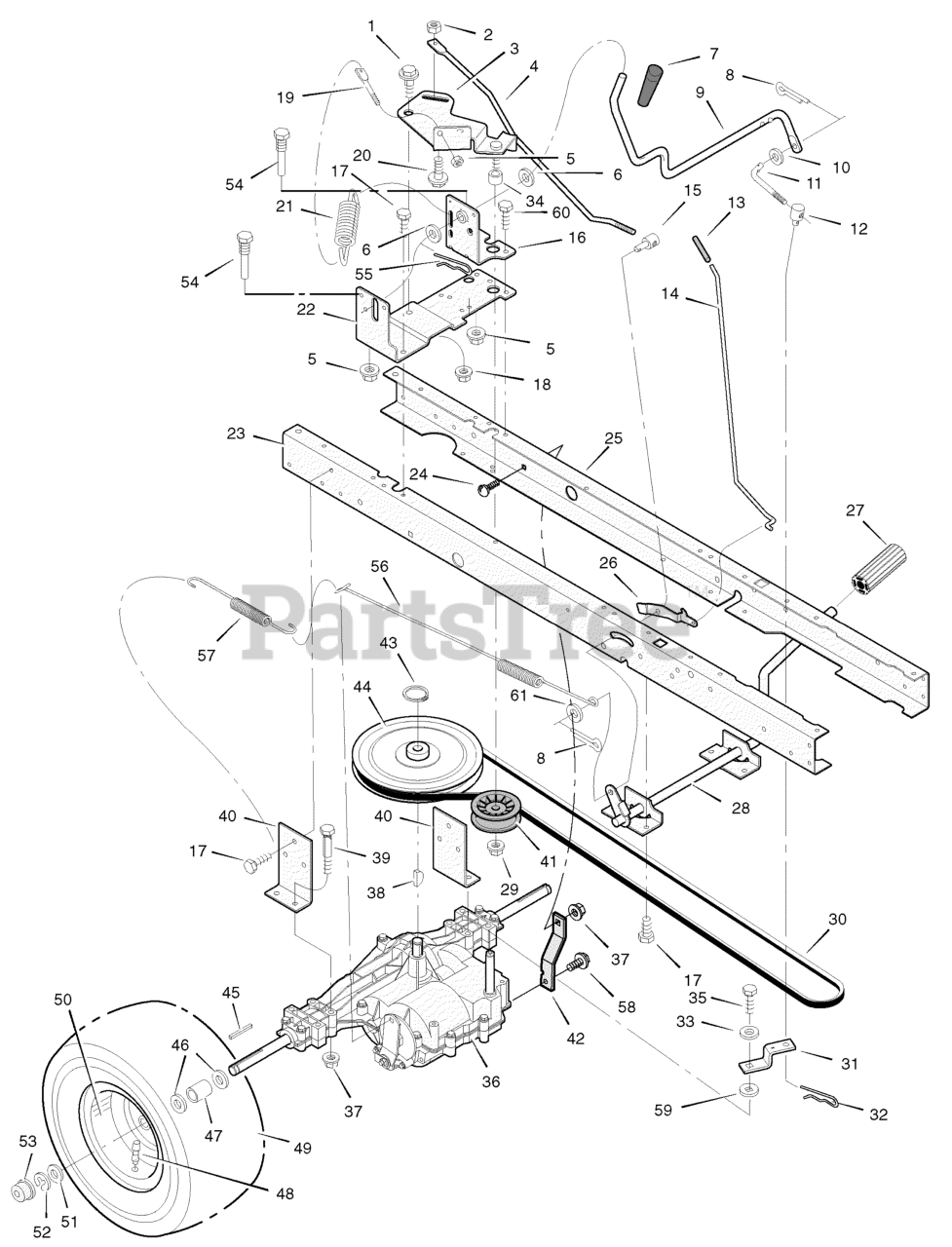

40" Lawn Tractor

Motion Drive Parts Diagram

  • Title

1

Murray 009X39

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

2

Murray 015X89

Nut, Hex
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

3

Murray 690173ZMA

ARM, Idler

$28.99

$

Usually ships in 2-12 days

0

4

Murray 094041 Z

Rod, Clutch

$

$

Currently unavailable

5

Murray 015X79

Nut

$5.49

$

In Stock, Qty 20+

0

6

Murray 17X102

Washer
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

7

Murray 92697

Grip

$

$

Not available

8

Murray 030X20

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Murray 094043 Z

Lever, Shift

$

$

Currently unavailable

10

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

11

Murray 094044ZMA

Link, Shift

$6.99

$

Usually ships in 2-12 days

0

12

Murray 21920

Nut, Adjuster

$23.99

$

Usually ships in 2-12 days

0

13

Murray 91079

Grip
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

14

Murray 1001245 Z

Rod, Parking Brake

$

$

Currently unavailable

15

Murray 94815

Nut, Adjuster

$21.99

$

Usually ships in 2-12 days

0

16

Murray 1001303 Z

Bracket, Shift Pivot

$

$

Currently unavailable

17

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

18

Murray 015X84

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Murray 094042ZMA

Mount, Stud Spring

$4.49

$

Usually ships in 2-12 days

0

20

Murray 009X54

Bolt, Shoulder

$5.49

$

Usually ships in 2-12 days

0

21

Murray 165X116

Spring, Extension

$8.49

$

Usually ships in 2-12 days

0

22

Murray 1001302E701

Bracket, Right Shifter

$32.99

$

Usually ships in 2-12 days

0

23

Murray 1001268E701

Frame, Right

$

$

Not available

24

Murray 002X53

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

25

Murray 1001269E701

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

26

Murray 094045 Z

Latch, Parking Brake

$

$

Currently unavailable

27

Murray 21544

Pedal

$9.99

$

In Stock, only 1 left!

0

28

Murray 094038E701MA

Lever, Brake/Clutch
(Superseded to 7400256ZMA)

$72.99

$

Usually ships in 2-12 days

0

29

Murray 015X98

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

30

Murray 037X87

Belt, Motion Drive

$28.99

$

In Stock, Qty 8

0

31

Murray 1001825 Z

Yoke, DANA Shift

$

$

Currently unavailable

32

Murray 0031X6

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

33

Murray 017X38

Washer
(Superseded to 017X38MA)

$3.99

$

Usually ships in 2-12 days

0

34

Murray 690369

Spacer

$5.99

$

Usually ships in 2-12 days

0

35

Murray 06X105

Bolt
(Superseded to 06X105MA)

$3.99

$

In Stock, only 1 left!

0

36

Transaxle, DANA **

$

$

Not available

37

Murray 015X88

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

38

Murray 20697

Key, Woodruff

$3.99

$

In Stock, only 1 left!

0

39

Murray 01X155

Bolt
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

40

Murray 094008E701

Bracket, Transaxle

$34.99

$

Usually ships in 2-12 days

0

41

Murray 690409

Pulley

$19.99

$

In Stock, only 4 left!

0

42

Murray 094433E701MA

BRACKET, Torque Strap, LH
(Superseded to 7300845BMYP)

$13.99

$

Usually ships in 2-12 days

0

43

Murray 0011X7

E-Ring

$3.99

$

In Stock, Qty 7

0

44

Murray 95094

Pulley, Drive

$55.99

$

Usually ships in 2-12 days

0

45

Murray 21553

Key, Square

$4.99

$

In Stock, Qty 6

0

46

Murray 17X160

Washer
(Superseded to 17X160MA)

$4.99

$

In Stock, Qty 13

0

47

Murray 1401103MA

SPACER, Rear Wheel

$10.99

$

Usually ships in 2-12 days

0

48

Murray 24373

Stem, Valve

$

$

Not available

49

Murray 91923

Tire *

$

$

Not available

--

Murray 407049

Tube

$68.99

$

Usually ships in 2-12 days

0

50

Murray 0 92288601

Wheel & Tire Assembly

$

$

Not available

51

Murray 17X195

Washer
(Superseded to 17X195MA)

$4.99

$

In Stock, Qty 20+

0

52

Murray 0011X3

E-Ring
(Superseded to 0011X3MA)

$5.49

$

In Stock, Qty 17

0

53

Murray 94618

Hub Cap

$5.99

$

In Stock, Qty 20+

0

54

Murray 93349

Guide, Belt

$

$

Not available

55

Murray 0031X4

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

56

Murray 165X115

Spring, Extension

$21.99

$

Usually ships in 2-12 days

0

57

Murray 165X92

Spring, Extension
(Superseded to 165X92MA)

$5.49

$

In Stock, only 3 left!

0

58

Murray 26X216

Screw
(Superseded to 26X216MA)

$6.99

$

In Stock, Qty 5

0

59

Murray 17X148

Washer
(Superseded to 17X148MA)

$3.99

$

Usually ships in 2-12 days

0

60

Murray 26X267

Screw
(Superseded to 26X267MA)

$4.99

$

In Stock, Qty 20+

0

61

Murray 17X169

Washer

$4.49

$

In Stock, only 2 left!
