405001x78B - Murray 40" Lawn Tractor (2003) Electrical System Parts Diagram

40" Lawn Tractor

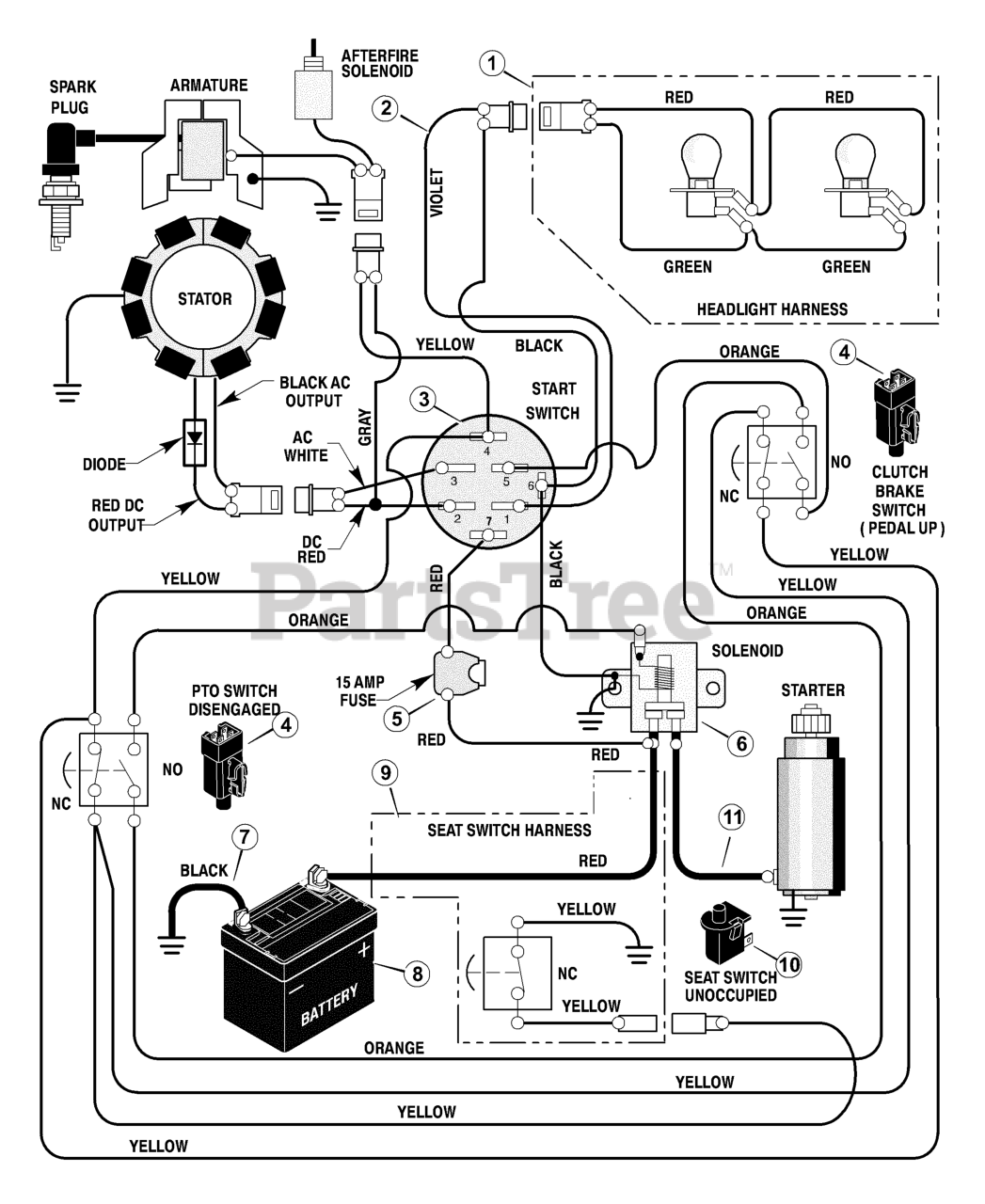

Electrical System Parts Diagram

  • Title

1

Murray 250X92MA

Harness, Light Wire

$16.99

$

In Stock, only 1 left!

0

--

Murray 92372

Socket, Light

$2.49

$

Usually ships in 2-12 days

0

--

Murray 90084

Bulb, Light
(Superseded to 7090639YP)

$3.49

$

In Stock, only 1 left!

0

2

Murray 250X87MA

Harness, Chassis Wire

$107.99

$

Usually ships in 2-12 days

0

3

Murray 92556

Switch, Ignition

$28.99

$

In Stock, only 1 left!

0

--

Murray 20729

Key, Ignition

$5.49

$

In Stock, only 1 left!

0

--

Murray 91489

Nut, Hex
(Superseded to 91489GS)

$1.99

$

Usually ships in 2-12 days

0

--

Murray 91488

Cap, Ignition
(Superseded to 794903)

$5.49

$

In Stock, only 1 left!

0

4

Murray 94136

Switch, Limit

$12.99

$

In Stock, Qty 5

0

5

Murray 54212

Fuse

$6.99

$

Usually ships in 2-12 days

0

--

Murray 407078MA

Holder, Fuse

$20.99

$

Usually ships in 2-12 days

0

6

Murray 94613

Solenoid
(Superseded to 691680)

$5.99

$

In Stock, only 4 left!

0

--

Murray 26X229MA

Screw, Mounting

$4.49

$

In Stock, only 1 left!

0

--

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 024X32MA

Cable, Battery Ground

$8.49

$

Usually ships in 2-12 days

0

--

Murray 26X213MA

Screw, Ground Cable

$4.49

$

In Stock, only 1 left!

0

8

Murray 21075

Battery

$

$

Currently unavailable

--

Murray 002X82MA

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

--

Murray 014X79MA

Wingnut

$4.99

$

Usually ships in 2-12 days

0

--

Murray 690604MA

BOOT, Battery Terminal, Positive

$5.99

$

Usually ships in 2-12 days

0

9

Murray 250X67MA

Harness, Seat Switch Wire

$

$

Not available

10

Murray 94159

Switch, Seat Sensor

$12.99

$

Usually ships in 2-12 days

0

11

Murray 024X31MA

Cable

$7.49

$

Usually ships in 2-12 days

0
