405004x99A - Briggs & Stratton 40" Lawn Tractor (2005) (AAFES) Chassis & Hood Parts Diagram

40" Lawn Tractor

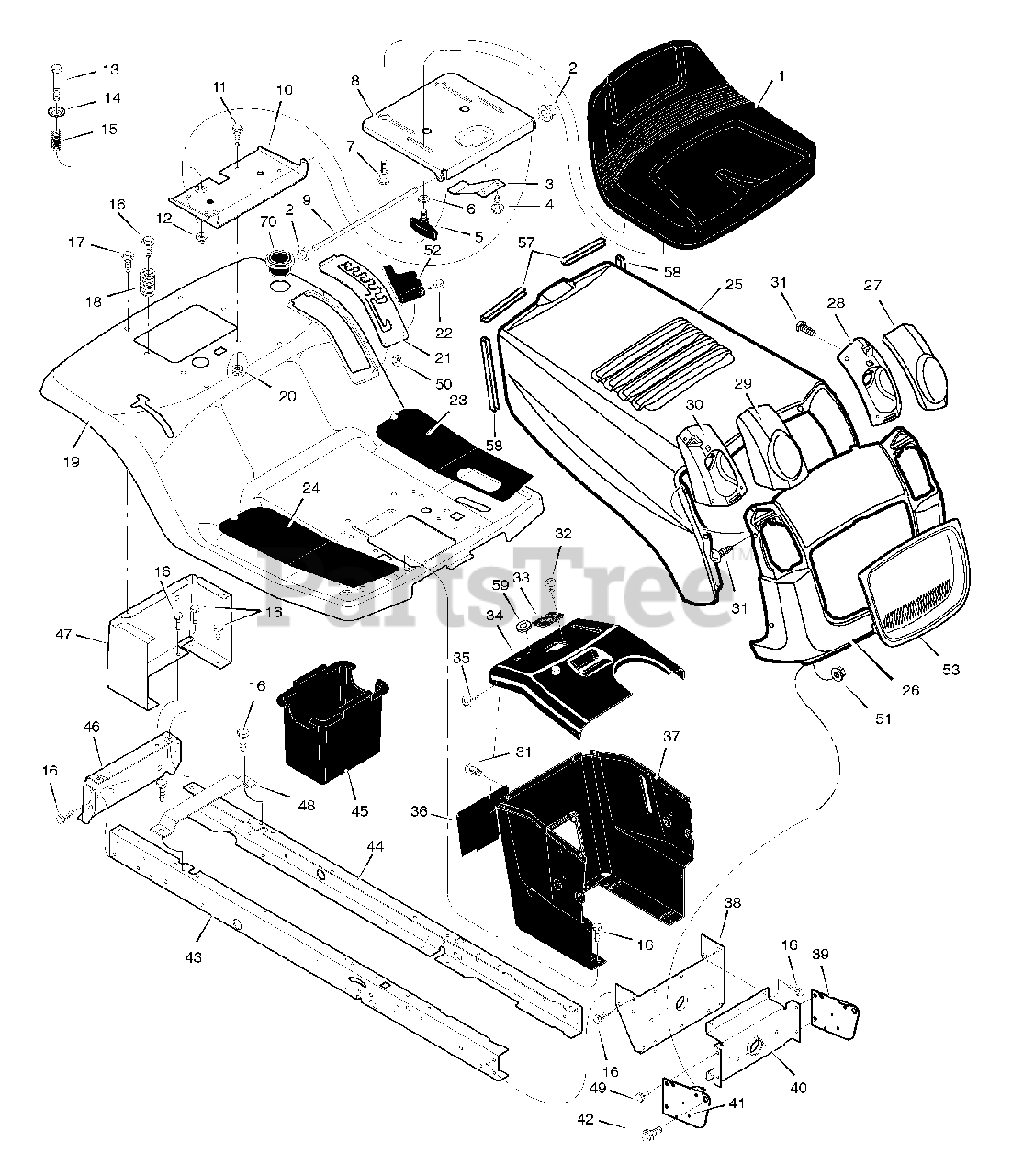

Chassis & Hood Parts Diagram

  • Title
1

Murray 690566MA

Seat
(Superseded to 1687498YP)

$445.99

$

Usually ships in 2-12 days

0

2

Murray 028X23MA

Cap, Push 0n
(Superseded to 703948)

$4.49

$

In Stock, Qty 15

0

3

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E700

Support, Seat

$

$

Currently unavailable

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 1001648E700

Bracket, Pivot

$

$

Currently unavailable

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

$

$

Not available

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

Murray 1001987E245

Deck, Seat

$267.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

21

Murray 094151E701MA

Plate, Index

$16.99

$

Usually ships in 2-12 days

0

22

$4.49

$

Usually ships in 2-12 days

0

23

Murray 094999MA

Mat, Left

$18.99

$

In Stock, only 1 left!

0

24

Murray 094998MA

Mat, Right

$

$

Not available

$193.99

$

Usually ships in 2-12 days

0

26

Murray 1001531E245MA

Grille
(Superseded to 1001531E701MA)

$113.99

$

In Stock, only 1 left!

0

27

Murray 1001546MA

Lens, Left

$13.99

$

In Stock, only 1 left!

0

28

Murray 1001544E701

Housing, Left Headlamp

$

$

Currently unavailable

29

Murray 1001545MA

Lens, Right

$13.99

$

In Stock, only 3 left!

0

30

Murray 1001543E701

Housing, Right Headlamp

$

$

Currently unavailable

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, only 1 left!

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 1001491MA

Bearing, Steering

$5.49

$

Usually ships in 2-12 days

0

34

Murray 1001584E701MA

Dash
(Superseded to 7300774ZMA)

$71.99

$

Usually ships in 2-12 days

0

35

$4.49

$

In Stock, only 2 left!

0

36

Murray 093007E701MA

Panel, Access

$31.99

$

Usually ships in 2-12 days

0

37

Murray 095318E701MA

Support, Dash

$155.99

$

Usually ships in 2-12 days

0

38

Murray 1001270E701MA

Bracket, Rear Hanger

$165.99

$

Usually ships in 2-12 days

0

39

Murray 094085E701MA

Support, Left Grille

$

$

Not available

40

Murray 094007E701MA

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

41

Murray 094084E701MA

Support, Right Grille

$

$

Not available

42

Murray 009X58MA

Bolt, Shoulder
(Superseded to 702315)

$6.99

$

In Stock, only 1 left!

0

43

Murray 1001928E701MA

Frame, Right

$104.99

$

Usually ships in 2-12 days

0

44

Murray 1001927E701

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

45

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 1001002E701

Plate, Hitch

$

$

Not available

47

Murray 690434E701MA

Panel, Rear

$85.99

$

Usually ships in 2-12 days

0

48

Murray 690482E701

Support, Battery

$

$

Not available

49

$4.99

$

Usually ships in 2-12 days

0

$4.99

$

Usually ships in 2-12 days

0

51

$

$

Not available

52

Murray 094610MA

Cover, Lift Detent

$5.49

$

In Stock, only 1 left!

0

53

Murray 1001540MA

Insert, Grille

$34.99

$

In Stock, only 1 left!

0

57

Murray 1001652MA

Trim, Hood (3.75")
(Superseded to 7102404YP)

$6.99

$

Usually ships in 2-12 days

0

58

Murray 1001653MA

Trim, Hood (6.5")

$10.99

$

Usually ships in 2-12 days

0

59

Murray 1001755MA

Grommet, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

70

Murray 1001542MA

Holder, Cup

$11.99

$

Usually ships in 2-12 days

0

--

Murray 1002007

Parts Bag, Assembly

$13.99

$

Usually ships in 2-12 days

0

--

Murray F-050718L

Instruction Book & Parts List

$

$

Currently unavailable
