40507x8B - Scotts 40" Lawn Tractor (1999)

40" Lawn Tractor

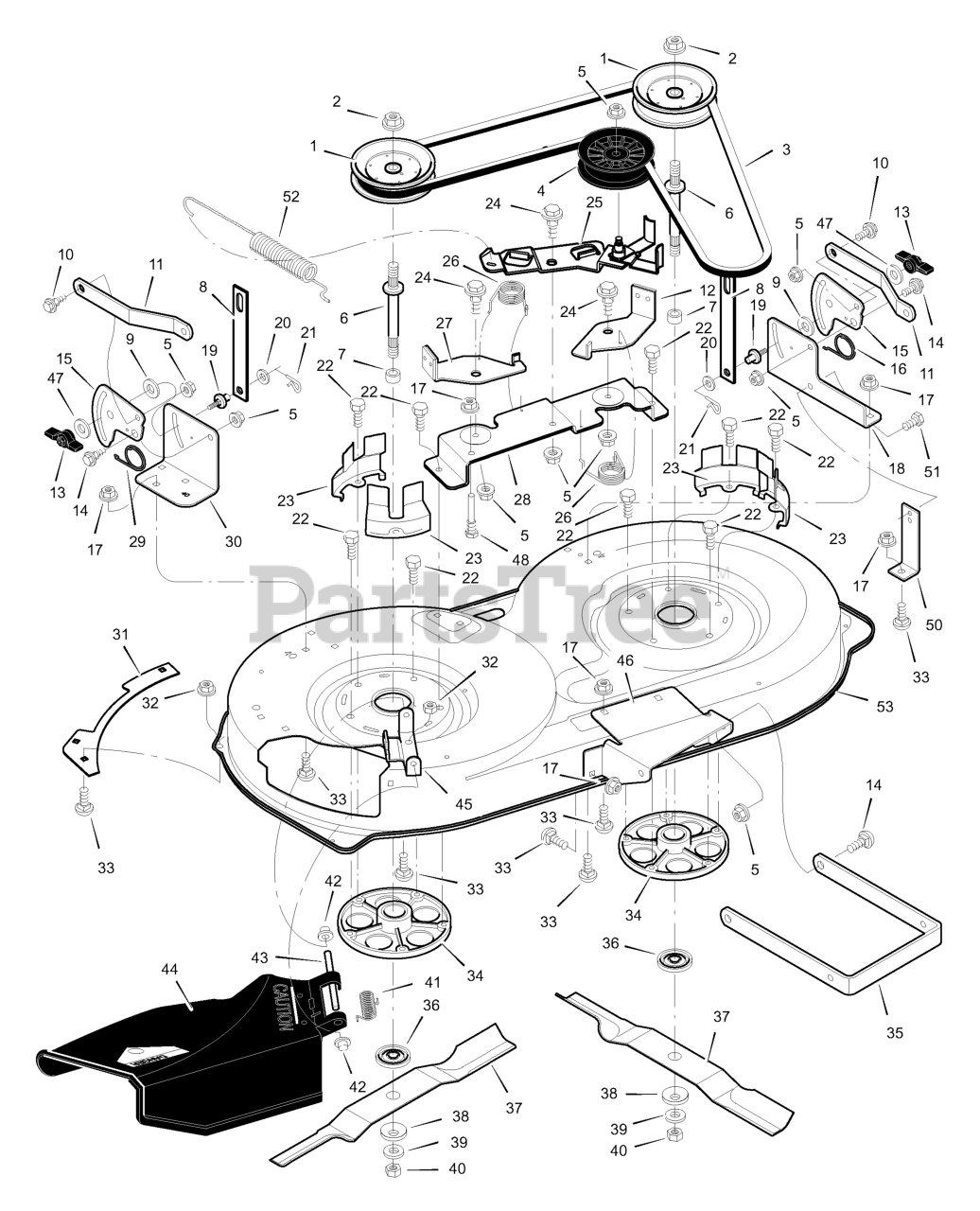

40507x8B - Scotts 40" Lawn Tractor (1999) > Parts Diagrams (7) > Mower Housing

  • Title
092851MA

1

Pulley, Jackshaft

Part# 092851MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $17.94

15X121

2

Nut, Hex

Part# 15X121

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $7.16

037X62MA

3

Belt, Mower Drive

Part# 037X62MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $29.18

091801

4

Pulley, Idler

Part# 091801 (Superseded to 091801MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $17.97

015X84MA

5

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.36

094129

6

Jackshaft

Part# 094129

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $15.93

094130MA

7

Spacer

Part# 094130MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.19

690212E700

8

Link, Lift

Part# 690212E700

OEM Warranty Repair Part for Murray

Currently unavailable

094137MA

9

Pad, Friction

Part# 094137MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.14

009X52MA

10

Bolt, Shoulder

Part# 009X52MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $5.24

094055E701MA

11

Bracket, Suspension

Part# 094055E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $9.84

094049E701MA

12

Pad Assembly, Left Brake

Part# 094049E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $24.99

094068MA

13

Knob

Part# 094068MA (Superseded to 703065)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.69

009X51MA

14

Bolt, Shoulder

Part# 009X51MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.68

094128E700MA

15

Plate, Suspension

Part# 094128E700MA (Superseded to 094128E701MA)

OEM Warranty Repair Part for Murray

Not available

166X43MA

16

Spring

Part# 166X43MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.35

015X79MA

17

Nut, Flange

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.35

094143E700

18

Bracket, Suspension

Part# 094143E700

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $23.87

095194

19

Pin, Hanger

Part# 095194 (Superseded to 095194MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $19.00

17X103MA

20

Washer

Part# 17X103MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.35

0031X4MA

21

Pin, Cotter

Part# 0031X4MA (Superseded to 703300)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.01

0025X7MA

22

Bolt

Part# 0025X7MA (Superseded to 2828635SM)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.68

094051E701MA

23

Cover, Pulley

Part# 094051E701MA (Superseded to 7300859BMYP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $19.34

009X39MA

24

Bolt, Shoulder

Part# 009X39MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.91

094177  Z

25

Arm, Idler

Part# 094177 Z

OEM Warranty Repair Part for Murray

Currently unavailable

166X41MA

26

Spring

Part# 166X41MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.35

094047E701MA

27

Pad Assembly, Right Brake

Part# 094047E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $36.28

094145E700MA

28

Bracket Assembly, Brake

Part# 094145E700MA (Superseded to 7300733ZYP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $90.33

166X42MA

29

Spring

Part# 166X42MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.35

094142E700

30

Bracket, Suspension

Part# 094142E700

OEM Warranty Repair Part for Murray

Currently unavailable

091770E700MA

31

Plate

Part# 091770E700MA (Superseded to 091770E701MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $9.72

015X88MA

32

Nut, Flange

Part# 015X88MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.90

002X53MA

33

Bolt, Carriage

Part# 002X53MA (Superseded to 703159)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.01

090905

34

Mandrell

Part# 090905

OEM Warranty Repair Part for Murray

Currently unavailable

690539E701MA

35

Bracket, Suspension

Part# 690539E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $31.14

092466MA

36

Adapter, Blade

Part# 092466MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $7.49

095103E701MA

37

Blade

Part# 095103E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $16.49

17X166MA

38

Washer

Part# 17X166MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.23

17X165MA

39

Washer

Part# 17X165MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $12.97

15X100MA

40

Nut

Part# 15X100MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.57

0166X4MA

41

Spring

Part# 0166X4MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.02

028X23MA

42

Cap, Push On

Part# 028X23MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.34

094957  Z

43

Rod, Pivot

Part# 094957 Z

Not available

094707MA

44

Deflector Assembly

Part# 094707MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $69.31

094956E701MA

45

Bracket, Deflector

Part# 094956E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $17.21

094144E700

46

Bracket, Front Hanger

Part# 094144E700

OEM Warranty Repair Part for Murray

Currently unavailable

017X45  Z

47

Washer

Part# 017X45 Z

OEM Warranty Repair Part for Murray

Currently unavailable

094781MA

48

Guide, Belt

Part# 094781MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $39.13

094681E700

50

Bracket, Support

Part# 094681E700

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $12.30

26X249MA

51

Screw

Part# 26X249MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.19

165X119MA

52

Spring, Extension

Part# 165X119MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.23

094141E701MA

53

Housing, Blade

Part# 094141E701MA

Note: (Includes Ref. No. 17, 18, 30, 31, 32, 33, 45, 46, 47 and 51)

OEM Warranty Repair Part for Murray

Not available
