405606x50C - Murray 40" Lawn Tractor (2007) Mower Housing Parts Diagram

40" Lawn Tractor

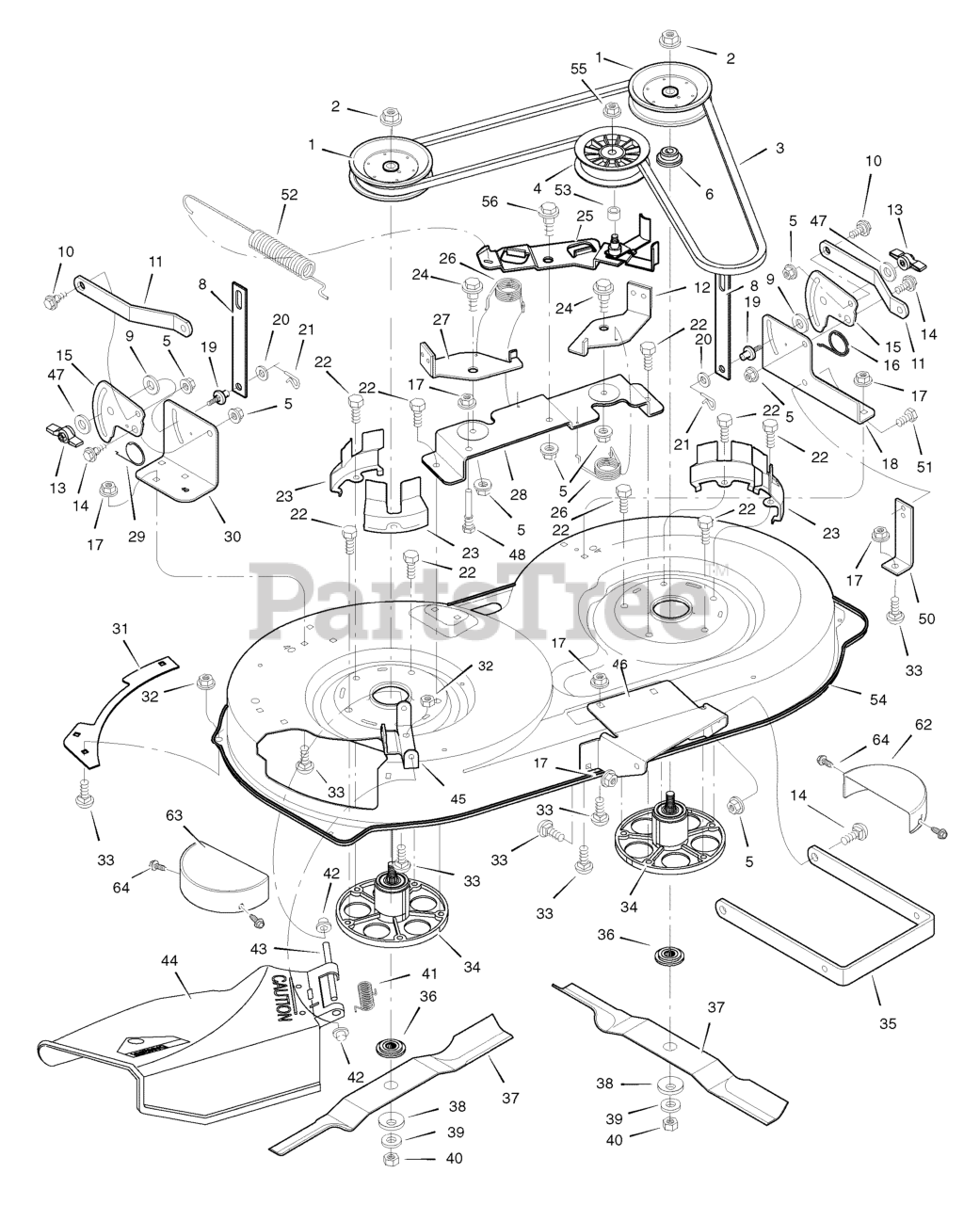

Mower Housing Parts Diagram

  • Title

1

Murray 092851MA

PULLEY Jackshaft

$28.99

$

In Stock, only 2 left!

0

2

Murray 15X140MA

NUT, Hex

$9.99

$

In Stock, only 1 left!

0

3

Murray 037X62MA

BELT, Mower Drive

$33.99

$

In Stock, only 3 left!

0

4

Murray 774089MA

PULLEY, Idler
(Superseded to 091801MA)

$24.99

$

In Stock, Qty 7

0

5

Murray 015X84MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Murray 1001197MA

Spacer, Pulley

Note: (Included with Ref. No. 34)

$12.99

$

In Stock, only 2 left!

0

9

Murray 094137MA

PAD, Friction

$6.99

$

In Stock, Qty 10

0

8

Murray 690212E701MA

LINK, Lift

$37.99

$

Usually ships in 2-12 days

0

10

Murray 009X52MA

BOLT, Shoulder

$6.49

$

In Stock, only 2 left!

0

11

Murray 094055E701MA

BRACKET, Suspension

$13.99

$

Usually ships in 2-12 days

0

12

Murray 094049E701MA

PAD ASSEMBLY, Left Brake

$

$

Not available

13

Murray 094068MA

KNOB
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

14

Murray 009X51MA

BOLT, Shoulder

$4.99

$

In Stock, Qty 17

0

15

Murray 094128E701MA

PLATE, Suspension
(Superseded to 7300878BMYP)

$15.99

$

Usually ships in 2-12 days

0

16

Murray 166X43MA

SPRING

$4.99

$

In Stock, only 3 left!

0

17

Murray 015X79MA

NUT, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Murray 094143E701MA

BRACKET, Suspension
(Superseded to 7300736ZYP)

$43.99

$

Usually ships in 2-12 days

0

19

Murray 095194MA

PIN, Hanger

$20.99

$

In Stock, only 1 left!

0

20

Murray 017X91MA

WASHER

$5.49

$

In Stock, only 2 left!

0

21

Murray 0031X4MA

PIN, Cotter
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

Murray 0025X6MA

BOLT

$5.49

$

Usually ships in 2-12 days

0

23

Murray 094051E701MA

COVER, Pulley
(Superseded to 7300859BMYP)

$31.99

$

In Stock, Qty 7

0

24

Murray 009X39MA

BOLT, Shoulder

$6.49

$

In Stock, Qty 10

0

25

Murray 1001500MA

ARM, Idler

$

$

Not available

26

Murray 166X41MA

SPRING

$4.99

$

Usually ships in 2-12 days

0

27

Murray 094047E701MA

PAD ASSEMBLY, Right Brake

$

$

Not available

28

Murray 094145E701MA

BRACKET ASSEMBLY, Brake

$46.99

$

Usually ships in 2-12 days

0

29

Murray 166X42MA

SPRING

$4.99

$

In Stock, Qty 10

0

30

Murray 094142E701MA

BRACKET, Suspension

$26.99

$

Usually ships in 2-12 days

0

31

Murray 091770E701MA

PLATE

$10.99

$

Usually ships in 2-12 days

0

32

Murray 015X88MA

NUT, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

33

Murray 002X53MA

BOLT, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

34

Murray 1001200MA

MANDRELL

Note: (Includes Ref. No. 6)

$82.99

$

In Stock, Qty 13

0

35

Murray 690539E701MA

BRACKET, Suspension

$54.99

$

Usually ships in 2-12 days

0

36

Murray 690411MA

ADAPTER, Blade

$

$

Not available

37

Murray 1001428E701MA

BLADE

$27.99

$

Usually ships in 2-12 days

0

38

Murray 17X166MA

WASHER

$13.99

$

In Stock, only 3 left!

0

39

Murray 17X165MA

WASHER

$16.99

$

In Stock, Qty 5

0

40

Murray 15X100MA

NUT

$3.99

$

In Stock, Qty 5

0

41

Murray 0166X4MA

SPRING

$6.49

$

In Stock, only 1 left!

0

42

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 15

0

43

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

44

Murray 094707MA

DEFLECTOR ASSEMBLY

$108.99

$

In Stock, only 1 left!

0

45

Murray 094956E701MA

BRACKET, Deflector

$22.99

$

In Stock, only 2 left!

0

46

Murray 094144E701MA

BRACKET, Front Hanger

$

$

Not available

47

Murray 017X45MA

WASHER

$

$

Not available

48

Murray 094781MA

GUIDE, Belt

$60.99

$

Usually ships in 2-12 days

0

50

Murray 094681E701MA

BRACKET, Support

$13.99

$

Usually ships in 2-12 days

0

51

Murray 26X249MA

SCREW

$

$

Not available

52

Murray 165X119MA

SPRING, Extension

$13.99

$

In Stock, only 3 left!

0

53

Murray 690369MA

SPACER

$5.99

$

In Stock, only 4 left!

0

54

Murray 094140E717MA

HOUSING, Blade

$

$

Not available

55

Murray 015X98MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

56

Murray 009X72MA

BOLT, Shoulder

$

$

Not available

62

Murray 094668E701MA

COVER, Pulley L.H.

$34.99

$

Usually ships in 2-12 days

0

63

Murray 94669E701MA

GUARD, Belt R.H.

$42.99

$

Usually ships in 2-12 days

0

64

Murray 26X263MA

SCREW

$4.99

$

In Stock, only 1 left!

0
