40561x51A - Murray 40" Lawn Tractor (1998) Motion Drive Parts Diagram

40" Lawn Tractor

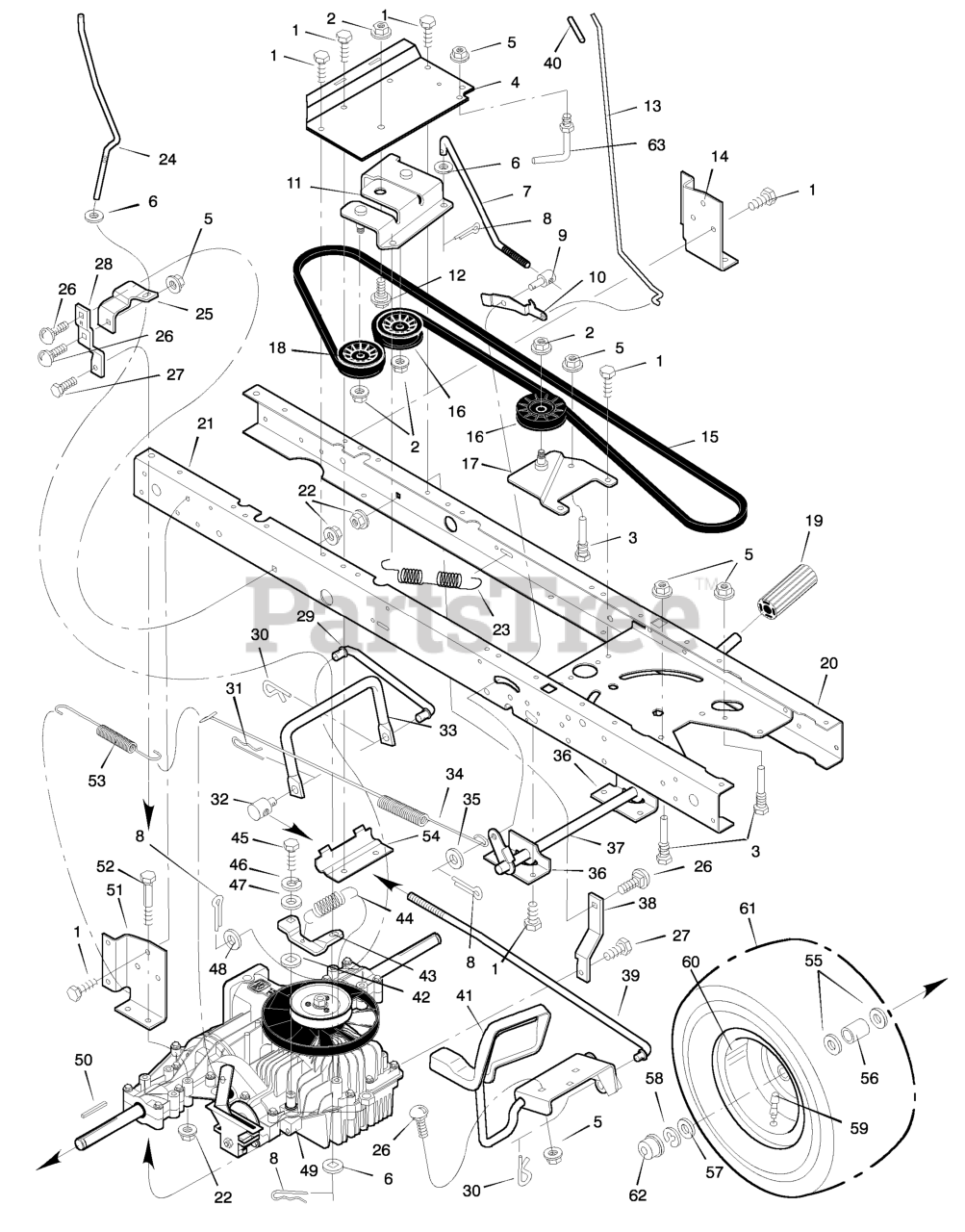

Motion Drive Parts Diagram

  • Title

1

Murray 26X249MA

Screw

$

$

Not available

2

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

3

Murray 093349MA

Guide, Belt

$4.99

$

Usually ships in 2-12 days

0

4

Murray 094431E700

Bracket, Idler

$

$

Currently unavailable

5

Murray 015X79MA

Locknut
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 094417 Z

Rod, Clutch

$

$

Currently unavailable

8

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$4.49

$

In Stock, Qty 11

0

9

Murray 094815ZMA

Adjuster

$21.99

$

Usually ships in 2-12 days

0

10

Murray 094045 Z

Latch, Parking Brake

$

$

Currently unavailable

11

Murray 094411 Z

Bracket Assembly, Idler

$

$

Currently unavailable

12

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, only 2 left!

0

13

Murray 095005 Z

Rod, Parking Brake

$

$

Currently unavailable

14

Murray 094008E701MA

Bracket, Transaxle

$35.99

$

Usually ships in 2-12 days

0

15

Murray 037X61MA

Belt

$34.99

$

In Stock, Qty 11

0

16

Murray 091179MA

Pulley, Idler

$18.99

$

In Stock, Qty 5

0

17

Murray 094409 Z

Arm Assembly, Idler

$

$

Currently unavailable

18

Murray 091178

Pulley, Idler

$18.99

$

In Stock, only 1 left!

0

19

Murray 021544MA

Pedal
(Superseded to 1727261SM)

$10.99

$

In Stock, only 2 left!

0

20

Murray 94001E700

Frame, Left

$

$

Currently unavailable

21

Murray 94000E700

Frame, Right

$

$

Currently unavailable

22

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

23

Murray 165X123

Spring, Extension

$

$

Currently unavailable

24

Murray 094428 Z

Rod, Disconnect

$

$

Currently unavailable

25

Murray 094429E700

Bracket, Disconnect

$

$

Currently unavailable

26

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

27

Murray 26X216MA

Screw

$6.99

$

In Stock, only 3 left!

0

28

Murray 094432E700

Strap, Right Torque

$

$

Currently unavailable

29

Murray 094426 Z

Rod, Link

$

$

Currently unavailable

30

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

31

Murray 0031X6MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

32

Murray 092132MA

NUT, Adjusting, 1/2-13
(Superseded to 092132ZMA)

$14.99

$

Usually ships in 2-12 days

0

33

Murray 094425E700

Rod, Yoke

$

$

Currently unavailable

34

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 2 left!

0

35

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, Qty 6

0

36

Murray 094035E700

Bracket, Pivot

$

$

Currently unavailable

37

Murray 094038E701MA

Lever, Clutch/Brake
(Superseded to 7400256ZMA)

$77.99

$

Usually ships in 2-12 days

0

38

Murray 094433E701MA

BRACKET, Torque Strap, LH
(Superseded to 7300845BMYP)

$14.99

$

Usually ships in 2-12 days

0

39

Murray 095226 Z

Rod, Link

$

$

Currently unavailable

40

Murray 091079MA

Grip

$3.99

$

Usually ships in 2-12 days

0

41

Murray 095121E700

Pedal, Speed Control

$

$

Currently unavailable

42

Murray 17X148MA

Washer

$4.49

$

Usually ships in 2-12 days

0

43

Murray 094430 Z

Arm, Disconnect

$

$

Currently unavailable

44

Murray 165X112MA

Spring
(Superseded to 1736469YP)

$7.49

$

In Stock, Qty 8

0

45

Murray 01X145MA

Bolt

$4.49

$

Usually ships in 2-12 days

0

46

Murray 018X32MA

Lockwasher

$3.49

$

Usually ships in 2-12 days

0

47

Murray 17X180MA

Washer

$

$

Not available

48

Murray 017X91MA

Washer

$5.99

$

In Stock, only 3 left!

0

49

Transaxle **

$

$

Not available

50

Murray 021553MA

Key, Square

$5.49

$

In Stock, Qty 14

0

51

Murray 094008E701MA

Bracket, Right Transaxle

$35.99

$

Usually ships in 2-12 days

0

52

Murray 01X155MA

Bolt
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

53

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 2 left!

0

54

Murray 094434E700

Clamp, Transaxle

$

$

Currently unavailable

55

Murray 17X160MA

Washer

$4.99

$

In Stock, only 4 left!

0

56

Murray 87X105 Z

Spacer

$

$

Currently unavailable

57

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 20+

0

58

Murray 0011X3MA

E-Ring

$5.99

$

In Stock, Qty 12

0

59

Murray 024373MA

Valve Stem

$8.49

$

Usually ships in 2-12 days

0

60

Murray 092294601MA

Wheel & Tire Assembly

$128.99

$

Usually ships in 2-12 days

0

61

Murray 024375

Tire *

$

$

Currently unavailable

--

Murray 407049MA

Tube

$72.99

$

Usually ships in 2-12 days

0

62

Murray 094618MA

Cap, Hub

$5.99

$

In Stock, Qty 20+

0

63

Murray 094781MA

Guide, Belt

$61.99

$

Usually ships in 2-12 days

0
