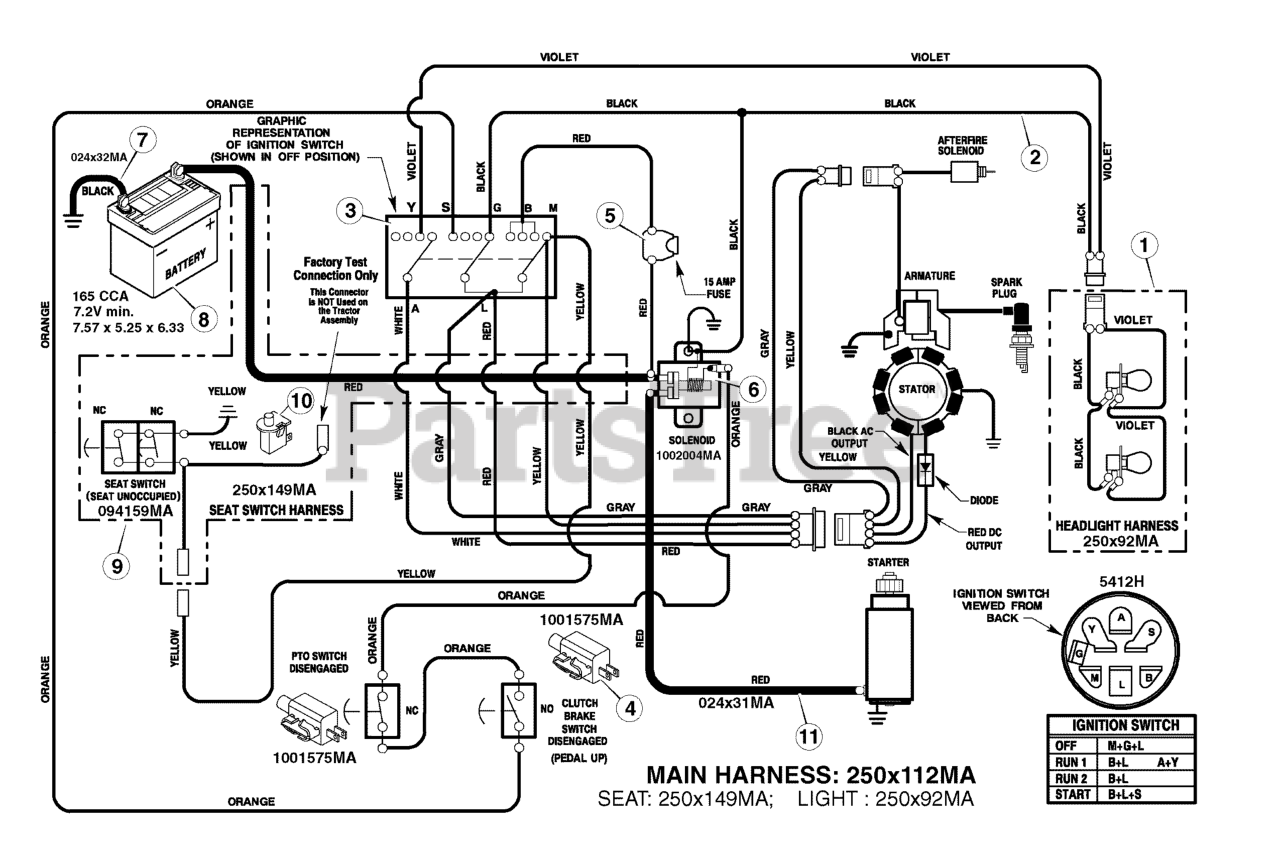

405628x114 (7800280) - Murray 40" Lawn Tractor (2008) > Parts Diagrams (8) > Electrical System

  • Title
250X92MA

1

HARNESS, Light Wire

Part# 250X92MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $11.35

1001716MA

--

SOCKET, Light

Part# 1001716MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.70

090084MA

--

BULB, Light

Part# 090084MA (Superseded to 1677371SM)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $23.47

250X112MA

2

HARNESS, Chassis Wire

Part# 250X112MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $33.21

092377MA

3

SWITCH, Ignition

Part# 092377MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $17.78

020729MA

--

KEY, Ignition

Part# 020729MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.92

091489MA

--

NUT, Hex

Part# 091489MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.61

091488MA

--

CAP, Ignition

Part# 091488MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.34

1001575MA

4

SWITCH, Limit

Part# 1001575MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $7.48

302031MA

5

FUSE

Part# 302031MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $5.58

407078MA

--

HOLDER, Fuse

Part# 407078MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $15.32

1002004MA

6

SOLENOID

Part# 1002004MA (Superseded to 7701100MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $21.75

26X229MA

--

SCREW, Mounting

Part# 26X229MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.34

15X116MA

--

LOCKNUT

Part# 15X116MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.68

024X32MA

7

CABLE, Battery Ground

Part# 024X32MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $6.32

26X229MA

--

SCREW, Ground Cable

Part# 26X229MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.34

-----

8

BATTERY

Part# -----

Note: 165 CCA 7.2V min. 7.57 x 5.25 x 6.33

Not available

002X82MA

--

BOLT, Carriage

Part# 002X82MA (Superseded to 703841)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.12

014X79MA

--

WINGNUT

Part# 014X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.79

690604MA

--

BOOT, Battery Terminal, Positive

Part# 690604MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.02

250X149MA

9

HARNESS, Seat Switch Wire

Part# 250X149MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $21.02

094159MA

10

SWITCH, Seat Sensor

Part# 094159MA (Superseded to 7023354YP)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $11.17

024X31MA

11

CABLE

Part# 024X31MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.14
