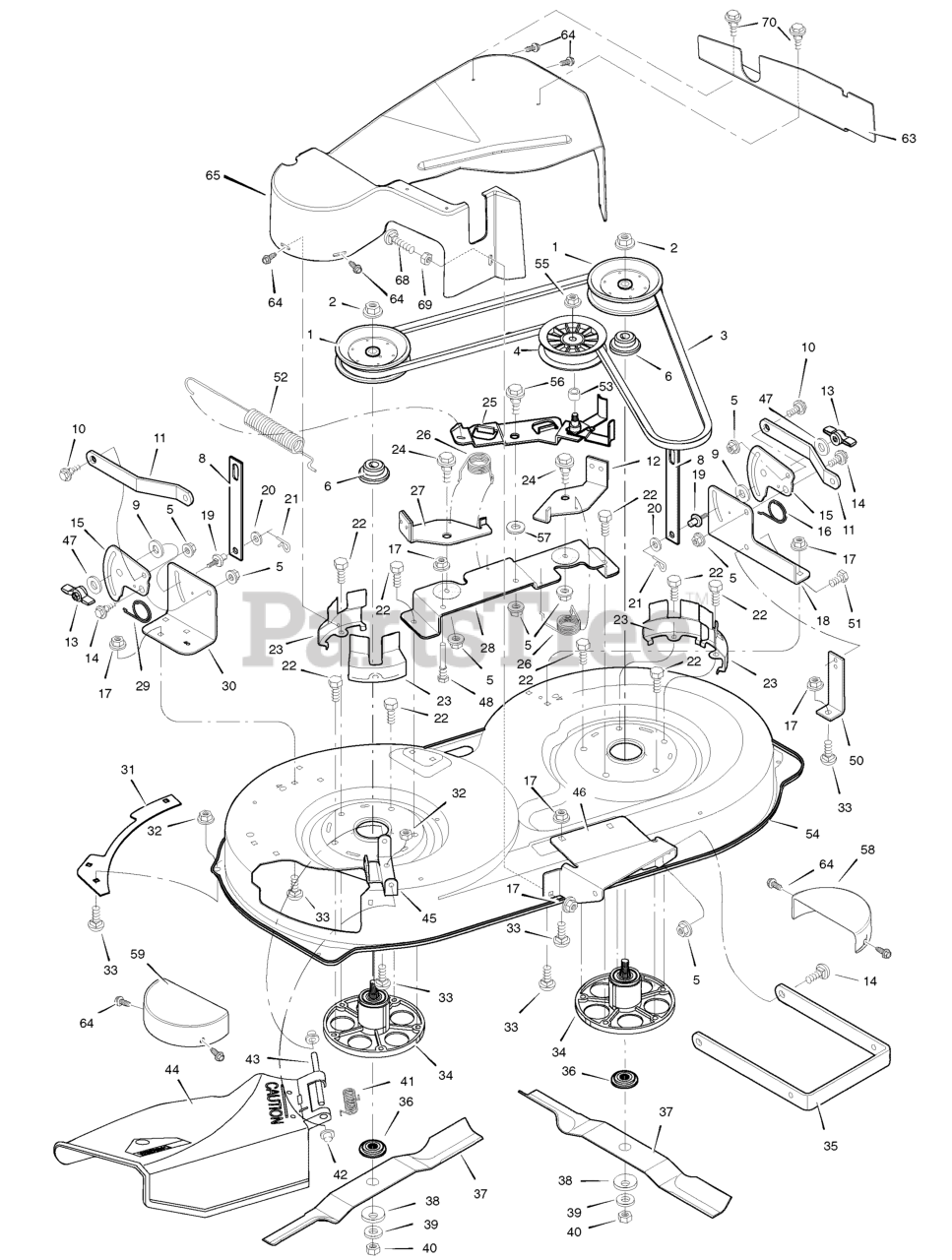

405628x114 (7800280) - Murray 40" Lawn Tractor (2008) Mower Housing Parts Diagram

40" Lawn Tractor

Mower Housing Parts Diagram

  • Title

1

Murray 092851MA

PULLEY, Jackshaft

$28.99

$

In Stock, only 2 left!

0

2

Murray 15X140MA

NUT, Hex

$9.99

$

In Stock, only 1 left!

0

3

Murray 037X62MA

BELT, Mower Drive

$33.99

$

In Stock, only 3 left!

0

4

Murray 091801MA

PULLEY, Idler

$24.99

$

In Stock, Qty 7

0

5

Murray 015X84MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Murray 1001197MA

SPACER, Pulley

Note: (Included with Ref. No. 34)

$12.99

$

In Stock, only 2 left!

0

8

Murray 7300749ZMA

LINK, Lift
(Superseded to 690212E701MA)

$37.99

$

Usually ships in 2-12 days

0

9

Murray 094137MA

PAD, Friction

$6.99

$

In Stock, Qty 10

0

10

Murray 009X52MA

BOLT, Shoulder

$6.49

$

In Stock, only 2 left!

0

11

Murray 7300826ZMA

BRACKET, Suspension
(Superseded to 7300826BMYP)

$15.99

$

Usually ships in 2-12 days

0

12

Murray 094049E701MA

PAD ASSEMBLY, Left Brake

$

$

Not available

13

Murray 094068MA

KNOB
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

14

Murray 009X51MA

BOLT, Shoulder

$4.99

$

In Stock, Qty 17

0

15

Murray 7300878ZMA

PLATE, Suspension
(Superseded to 7300878BMYP)

$15.99

$

Usually ships in 2-12 days

0

16

Murray 166X43MA

SPRING

$4.99

$

In Stock, only 3 left!

0

17

Murray 7090585MA

NUT, Flange

$3.99

$

In Stock, Qty 7

0

18

Murray 7300736ZYP

BRACKET, Left Suspension

$43.99

$

Usually ships in 2-12 days

0

19

Murray 095194MA

PIN, Hanger

$20.99

$

In Stock, only 1 left!

0

20

Murray 017X91MA

WASHER

$5.49

$

In Stock, only 2 left!

0

21

Murray 0031X4MA

PIN, Cotter
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

Murray 0025X6MA

BOLT

$5.49

$

Usually ships in 2-12 days

0

23

Murray 7300859ZMA

GUIDE, Belt
(Superseded to 7300859BMYP)

$31.99

$

In Stock, Qty 7

0

24

Murray 009X39MA

BOLT, Shoulder

$6.49

$

In Stock, Qty 10

0

25

Murray 1001500MA

ARM, Idler

$

$

Not available

26

Murray 166X41MA

SPRING

$4.99

$

Usually ships in 2-12 days

0

27

Murray 7400243ZMA

PAD ASSEMBLY, Right Brake
(Superseded to 7400243BMYP)

$94.99

$

Usually ships in 2-12 days

0

28

Murray 7300733ZYP

BRACKET ASSEMBLY, Brake

$99.99

$

Usually ships in 2-12 days

0

29

Murray 166X42MA

SPRING

$4.99

$

In Stock, Qty 10

0

30

Murray 7300739ZYP

BRACKET, Right Suspension

$33.99

$

Usually ships in 2-12 days

0

31

Murray 7300834ZMA

PLATE

$15.99

$

Usually ships in 2-12 days

0

32

Murray 015X88MA

NUT, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

33

Murray 002X53MA

BOLT, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

34

Murray 1001200MA

MANDRELL

Note: (Includes Ref. No. 6)

$82.99

$

In Stock, Qty 13

0

35

Murray 7300767ZMA

BRACKET, Suspension

$47.99

$

Usually ships in 2-12 days

0

36

Murray 690411MA

ADAPTER, Blade

$

$

Not available

37

Murray 7101752AMA

BLADE
(Superseded to 1001428E701MA)

$27.99

$

Usually ships in 2-12 days

0

38

Murray 17X166MA

WASHER

$13.99

$

In Stock, only 3 left!

0

39

Murray 17X165MA

WASHER

$16.99

$

In Stock, Qty 5

0

40

Murray 15X100MA

NUT

$3.99

$

In Stock, Qty 5

0

41

Murray 0166X4MA

SPRING

$6.49

$

In Stock, only 1 left!

0

42

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 15

0

43

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

44

Murray 094707MA

DEFLECTOR ASSEMBLY

$108.99

$

In Stock, only 1 left!

0

45

Murray 7300812ZMA

BRACKET, Deflector
(Superseded to 7300812BMYP)

$47.99

$

Usually ships in 2-12 days

0

46

Murray 7300745ZMA

BRACKET, Front Hanger

$62.99

$

Usually ships in 2-12 days

0

47

Murray 017X45MA

WASHER

$

$

Not available

48

Murray 094781MA

GUIDE, Belt

$60.99

$

Usually ships in 2-12 days

0

50

Murray 7300766ZMA

BRACKET, Support
(Superseded to 7300766BMYP)

$23.99

$

Usually ships in 2-12 days

0

51

Murray 26X249MA

SCREW

$

$

Not available

52

Murray 165X119MA

SPRING, Extension

$13.99

$

In Stock, only 3 left!

0

53

Murray 690369MA

SPACER

$5.99

$

In Stock, only 4 left!

0

54

Murray 7300789ZMA

HOUSING, Export Blade

$

$

Not available

55

Murray 015X98MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

56

Murray 009X72MA

BOLT, Shoulder

$

$

Not available

57

Murray 17X174ZMA

WASHER

$6.49

$

Usually ships in 2-12 days

0

58

Murray 7300781ZMA

GUARD, Belt L.H.

$

$

Not available

59

Murray 7300782ZMA

GUARD, Belt R.H.

$

$

Not available

63

Murray 1735565ZMA

PLATE, Guard 40" LH

$36.99

$

Usually ships in 2-12 days

0

64

Murray 26X263MA

SCREW

$4.99

$

In Stock, only 1 left!

0

65

Murray 1735559MA

COVER, Guard

$250.99

$

Usually ships in 2-12 days

0

68

Murray 002X81MA

BOLT, Carriage, 5/16-18 x 1.50

$3.49

$

Usually ships in 2-12 days

0

69

Murray 15X123MA

NUT, Hex Lock 3/8-18

$3.99

$

Usually ships in 2-12 days

0

70

Murray 26X214MA

SCREW HEXHEAD TAP

$4.49

$

Usually ships in 2-12 days

0
