40576 (5465) - Gravely Walk-Behind 2-Wheel Tractor, 10hp, 4-Speed, Electric Start CONTROLS Parts Diagram

Walk-Behind 2-Wheel Tractor, 10hp, 4-Speed, Electric Start

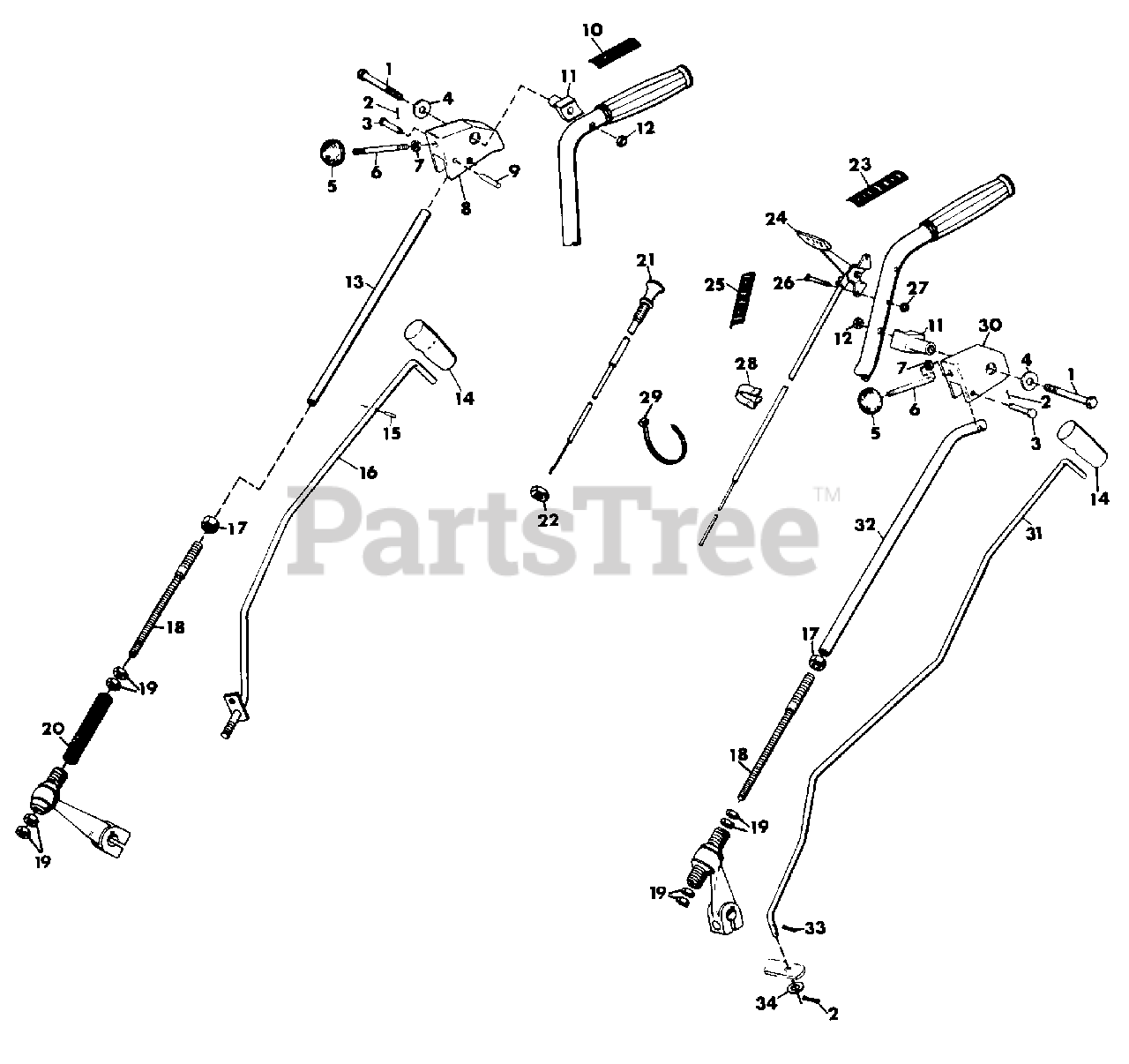

CONTROLS Parts Diagram

  • Title

1

Gravely 180192

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, only 3 left!

0

2

Gravely 177923

PIN-CTR .12X.75 EXTPRSQCT YWZ
(Superseded to 06707300)

$0.99

$

In Stock, Qty 6

0

3

Gravely 010672

PIN-CLEV .372X1.406
(Superseded to 06809100)

$

$

Not available

4

Gravely 120396

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 010670

KNOB-CONTROL .438-20X.50
(Superseded to 07537600)

$14.99

$

In Stock, only 2 left!

0

6

Gravely 010669

ROD,SHIFTER
(Superseded to 20046000)

$

$

Not available

7

Gravely 272123

NUT-HEX-JAM .437-20
(Superseded to 06524400)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 011985

SPRT,FWD-REV SHIFT
(Superseded to 21343400)

$

$

Not available

9

Gravely 453670

PIN-ROLL .250X1.125
(Superseded to 05808900)

$

$

Not available

10

Gravely 021090

DECAL - FORWARD/REVERSE
(Superseded to 05201000)

$

$

Not available

11

Gravely 010667

PVT,HANDLE LEVER
(Superseded to 20045800)

$38.99

$

Usually ships in 4-12 days

0

12

Gravely 020541

NUT-LK .50-13 ESNA THIN
(Superseded to 06527200)

$

$

Not available

13

Gravely 020267

DIRECTION CONTROL ROD KIT
(Superseded to 58501400)

$290.99

$

Usually ships in 4-12 days

0

14

Gravely 010683

HNDL,RUBBER SHIFTER
(Superseded to 07537700)

Note: (MODEL 5200)

$19.99

$

Usually ships in 4-12 days

0

14

Gravely 010683

HNDL,RUBBER SHIFTER
(Superseded to 07537700)

Note: (MODELS 5240,5260,5665,5645)

$19.99

$

Usually ships in 4-12 days

0

15

Gravely 423664

PIN,SPRING; .094 X .688
(Superseded to 21069100)

Note: (MODELS 5240, 5260,5465, 5665 AND 5645)

$

$

Not available

16

Gravely 010677

WLDMT,2SPD CNTRL ROD
(Superseded to 21333400)

Note: (MODELS 5240,5260,5465, 5665 AND 5645)

$

$

Not available

17

Gravely 120238

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 020269

DIRECTION CONTROL ROD KIT
(Superseded to 58501400)

$290.99

$

Usually ships in 4-12 days

0

19

Gravely 124829

NUT-JAM .375-16 PL
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 021506

SG-COMP .072X.561X2.50
(Superseded to 08329600)

$23.99

$

Usually ships in 4-12 days

0

21

Gravely 010696

CNTRL,CHOKE
(Superseded to 20046600)

Note: (MODELS 5260, 5465 AND 5665)

$68.99

$

In Stock, only 1 left!

0

22

Gravely 124925

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

Note: (MODELS 5260, 5465 AND5665)

$2.49

$

In Stock, only 3 left!

0

23

Gravely 021092

DECAL,THROTTLE
(Superseded to 05201200)

$22.99

$

Usually ships in 4-12 days

0

24

Gravely 021103

LVR,THRTL CNTRL
(Superseded to 06921900)

$

$

Not available

24

Gravely 021196

LVR,THROTTLE CONTROL
(Superseded to 20321000)

$31.99

$

Usually ships in 4-12 days

0

25

Gravely 021091

DECAL,GEAR SHIFT
(Superseded to 05201100)

$

$

Not available

26

Gravely 436738

SCR-MCH 10-24X1.50 PH YWZC
(Superseded to 06118300)

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 008260

CLAMP
(Superseded to 06901200)

$5.49

$

Usually ships in 4-12 days

0

29

Gravely 010629

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

30

Gravely 010666

SPRT,HI LO SHIFTER ROD
(Superseded to 21333300)

$

$

Not available

31

Gravely 010932

ROD,ATTACHMENT THROWOUT
(Superseded to 21334951)

$

$

Not available

32

Gravely 020268

ROD,HI-LO CONTROL
(Superseded to 20008900)

$

$

Not available

33

Gravely 121224

PIN-CTR .09X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 11

0

34

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
