40576 (5465) - Gravely Walk-Behind 2-Wheel Tractor, 10hp, 4-Speed, Electric Start ELECTRICAL Parts Diagram

Walk-Behind 2-Wheel Tractor, 10hp, 4-Speed, Electric Start

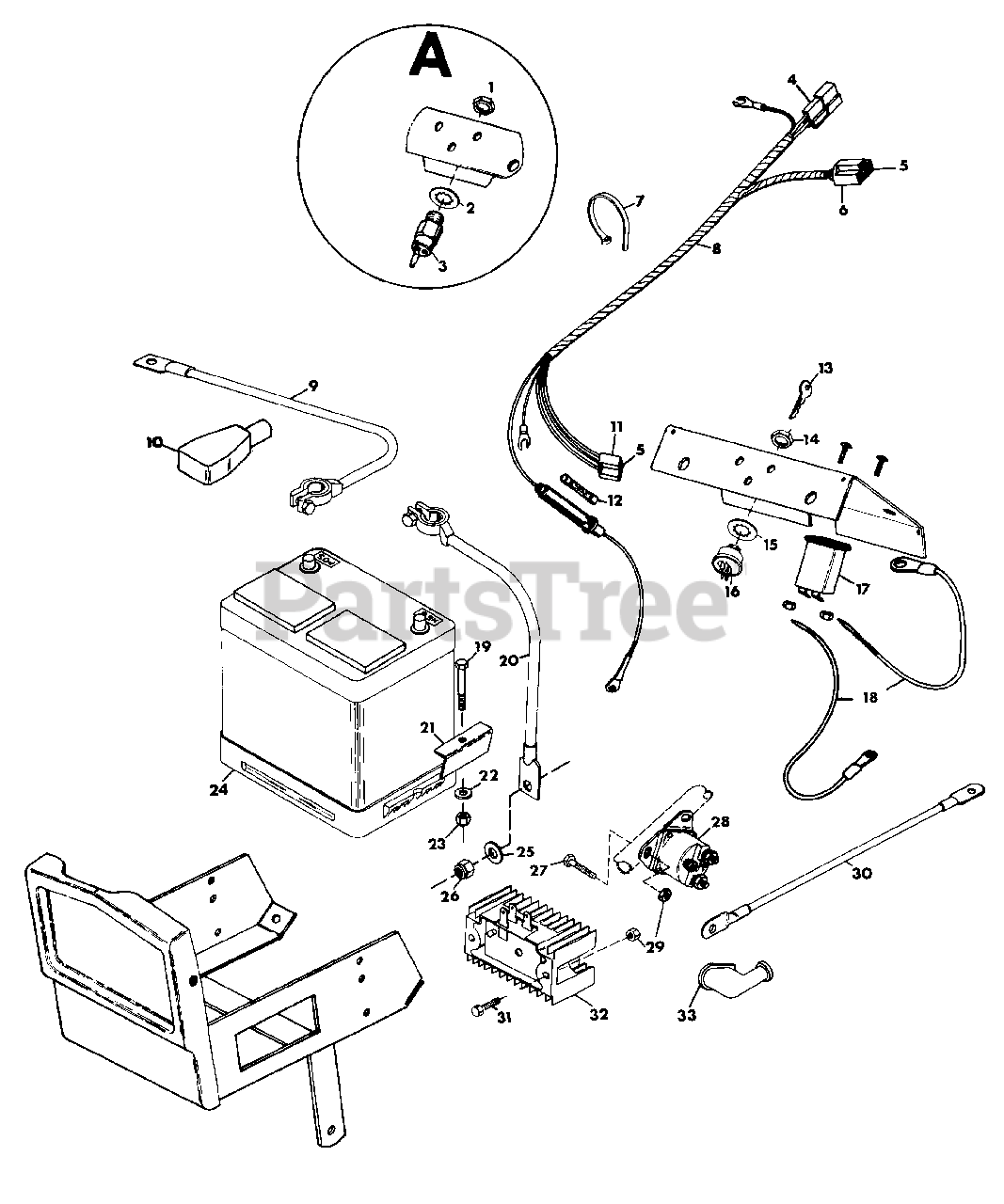

ELECTRICAL Parts Diagram

  • Title

1

Gravely 018585

NUT,JAM; 5/8-32
(Superseded to 21119800)

$

$

Not available

2

Gravely 018586

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

3

Gravely 021104

SWITCH ASSEMBLY
(Superseded to 53204700)

$59.99

$

In Stock, only 1 left!

0

4

Gravely 038057

CONNECTOR
(Superseded to 20645000)

Note: (MODEL 5465,5665)

$

$

Not available

5

Gravely 038059

TERMINAL
(Superseded to 08540001)

Note: (MODEL 5465,5665)

$4.49

$

In Stock, Qty 5

0

5

Gravely 038059

TERMINAL
(Superseded to 08540001)

Note: (MODEL 5260)

$4.49

$

In Stock, Qty 5

0

6

Gravely 038058

CONNECTOR
(Superseded to 20645101)

$8.49

$

In Stock, only 3 left!

0

7

Gravely 010629

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

8

Gravely 024759

HRNG WRG,5000 SERIES 3A
(Superseded to 20418401)

Note: (MODEL 5260)

$72.99

$

Usually ships in 4-12 days

0

Gravely 019222

HRNS WRG,500 SERIES
(Superseded to 20275500)

Note: (MODEL 5465,5665)

$

$

Not available

9

Gravely 021368

CBL,POSITIVE BATTERY
(Superseded to 08516500)

$

$

Not available

10

Gravely 034466

CVR,BATTERY TERMINAL
(Superseded to 07523100)

$

$

Not available

11

Gravely 038800

CONNECTOR
(Superseded to 20652300)

Note: (MODEL 5465,5665)

$16.99

$

Usually ships in 4-12 days

0

12

Gravely 014893

FUSE,30 AMP AGC- 30
(Superseded to 20176100)

$

$

Not available

13

Gravely 018570

KEY -W/CAP
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

14

Gravely 019666

NUT,JAM 9/16-24 IND83024
(Superseded to 20287700)

$3.49

$

In Stock, only 1 left!

0

15

Gravely 019667

WSHR-LK-INT .563X.040 YWZC
(Superseded to 06310900)

$2.49

$

In Stock, only 1 left!

0

16

Gravely 019223

IGNITION SWITCH WITH KEY
(Superseded to 59211800)

$70.99

$

In Stock, Qty 9

0

17

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 17

0

18

Gravely 021425

WIRE,INSTRUMENT PANEL
(Superseded to 08801600)

$

$

Not available

19

Gravely 180044

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

In Stock, only 3 left!

0

20

Gravely 040410

CBL,NEG BATTERY
(Superseded to 08542000)

$

$

Not available

21

Gravely 037742

CLAMP
(Superseded to 08539500)

$23.99

$

Usually ships in 4-12 days

0

22

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

24

Gravely 037764

BAT,12V MAIN.FREE 22F

$

$

Not available

25

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

27

Gravely 180042

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05964700)

$2.49

$

In Stock, Qty 12

0

28

Gravely 007277

SWITCH,MAG DEL1466
(Superseded to 20031900)

$53.99

$

In Stock, Qty 5

0

29

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

Note: (MODEL 5260)

$0.99

$

In Stock, Qty 10

0

29

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

Note: (MODEL 5465,5665)

$0.99

$

In Stock, Qty 10

0

30

Gravely 006981

CBL,BATT.TO SOLONOID 8HP
(Superseded to 08547300)

$

$

Not available

31

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

32

Gravely 018009

REG,RECTIFIER
(Superseded to 08505600)

$

$

Not available

33

Gravely 033847

BOOT, INSULATOR
(Superseded to 03384700)

Note: (MODEL 5260,5665)

$

$

Not available
