40576 (5465) - Gravely Walk-Behind 2-Wheel Tractor, 10hp, 4-Speed, Electric Start FRAME Parts Diagram

Walk-Behind 2-Wheel Tractor, 10hp, 4-Speed, Electric Start

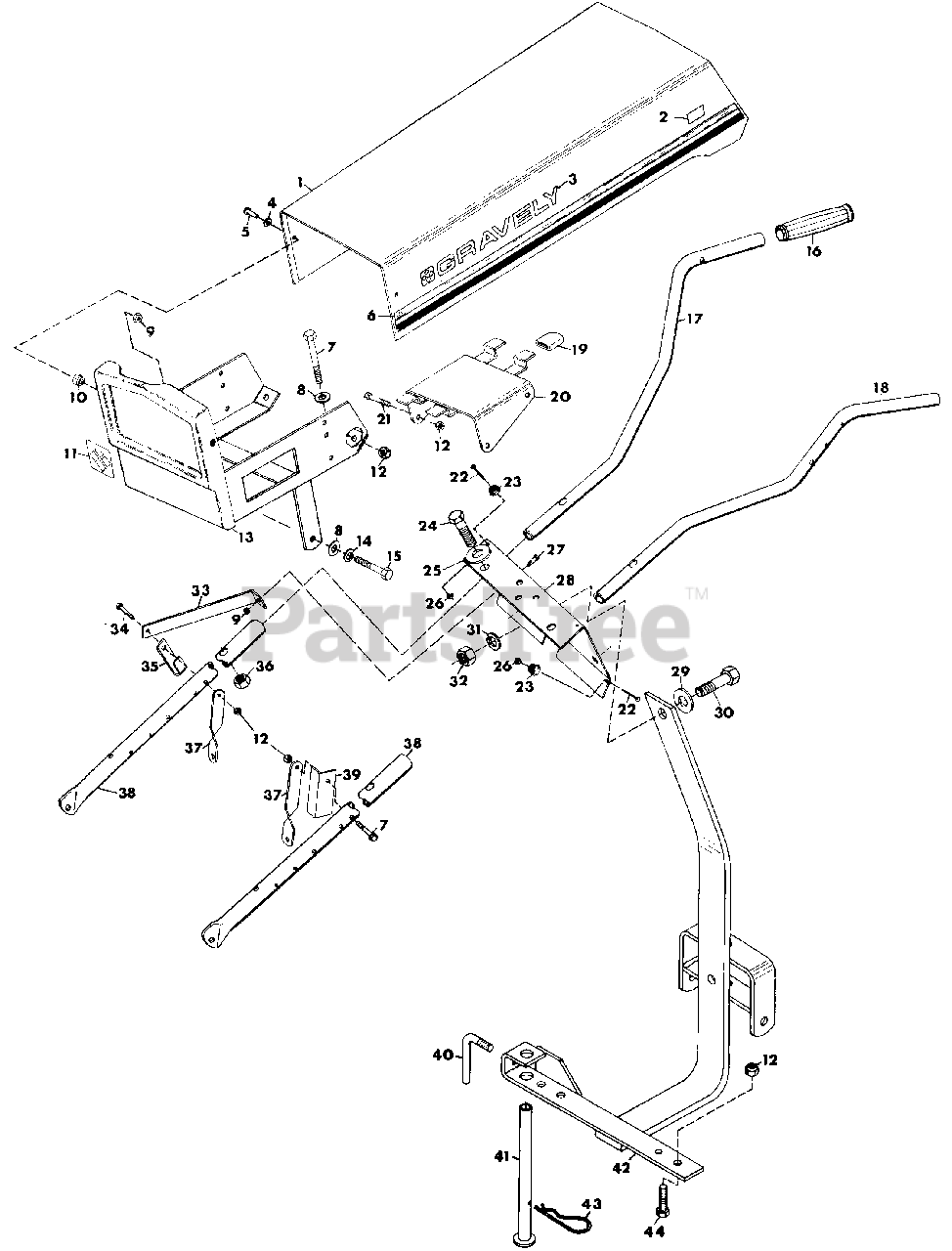

FRAME Parts Diagram

  • Title

1

Gravely 040403

ASM,HOOD
(Superseded to 21262900)

$

$

Not available

2

Gravely 034141

DECAL,MDL 5665 PRO
(Superseded to 20593800)

$

$

Not available

2

Gravely 024583

DECAL,MODEL 5260
(Superseded to 20413400)

$

$

Not available

2

Gravely 034140

DECAL,MDL 5645 PRO
(Superseded to 20593700)

$

$

Not available

2

Gravely 040090

DECAL MODEL 5465

$

$

Not available

3

Gravely 024588

DECAL,GRAVELY LOGO
(Superseded to 05201500)

$23.99

$

Usually ships in 4-12 days

0

4

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 160556

SCR-MCH .250-20X1
(Superseded to 06113600)

$

$

Not available

6

Gravely 032831

DECAL, SIDE STRIPES

$

$

Not available

7

Gravely 180132

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

8

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

10

Gravely 012117

PVT,HOOD
(Superseded to 21344100)

$

$

Not available

11

Gravely 010697

DECAL,COMM. FRONT
(Superseded to 05216500)

$

$

Not available

12

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 040409

WLDMT,BATTERY BRACKET
(Superseded to 08561100)

$

$

Not available

14

Gravely 120382

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 180124

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 010671

GRIP,HAND
(Superseded to 20046100)

$18.99

$

In Stock, only 1 left!

0

17

Gravely 011982

BAR,RIGHT HANDLE
(Superseded to 21366300)

$

$

Not available

18

Gravely 010658

BAR,LEFT HANDLE
(Superseded to 20045500)

$

$

Not available

19

Gravely 031620

CVR,1.0X.125X1.0
(Superseded to 20557000)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 010637

WLDMT,FUEL TANK BRACKET
(Superseded to 21332300)

$

$

Not available

21

Gravely 180129

BLT-HEX .38-16X1.875
(Superseded to 05935100)

$

$

Not available

22

Gravely 159341

SCR-MCH 6-32X.625
(Superseded to 06110700)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 018183

BUMPER
(Superseded to 07017400)

$

$

Not available

24

Gravely 181705

BLT,HEX 1/2-20 X 2
(Superseded to 21060300)

$

$

Not available

25

Gravely 120396

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 427254

NUT-LK-NYL 6-32 W/INSRT YWZC
(Superseded to 06538900)

$1.49

$

Usually ships in 4-12 days

0

27

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 024744

KIT, INSTR PNL CNTRL W/DECAL
(Superseded to 58502000)

$

$

Not available

28

Gravely 024751

KIT, PNL INSTR MANUAL W/DECAL
(Superseded to 58501800)

$

$

Not available

28

Gravely 037758

KIT, INSTR PNL CNTRL W/DECAL
(Superseded to 58502000)

$

$

Not available

29

Gravely 421879

WSHR-FL-STL .656X1.250X.10 YZC
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 271547

BLT-HEX .62-11X1.50 GR5 YWZC
(Superseded to 05968700)

$3.99

$

In Stock, Qty 9

0

31

Gravely 121574

WSHR-LK .62X.156 REG YWZC
(Superseded to 06309500)

$2.49

$

In Stock, only 2 left!

0

32

Gravely 124589

NUT-HEX .62-11 YWZC
(Superseded to 06535600)

$2.99

$

In Stock, only 3 left!

0

33

Gravely 010996

BR,INSTRUMENT PANEL
(Superseded to 21335500)

$

$

Not available

34

Gravely 180134

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

35

Gravely 010684

RTNR,2 SPEED CONTROL
(Superseded to 21333600)

$

$

Not available

36

Gravely 120371

NUT,HEX 1/2-20
(Superseded to 21050100)

$

$

Not available

37

Gravely 010655

BR,HANDLE
(Superseded to 21333100)

$

$

Not available

38

Gravely 040402

TUBE,SUPPORT
(Superseded to 21253400)

$

$

Not available

39

Gravely 010933

STOP,ROD
(Superseded to 21335000)

$30.99

$

Usually ships in 4-12 days

0

40

Gravely 013457

HNDL,ADJUSTING
(Superseded to 08597900)

$53.99

$

Usually ships in 4-12 days

0

41

Gravely 034062

STAND,KICK
(Superseded to 08536500)

$

$

Not available

42

Gravely 024844

WLDMT,HITCH 8 HP
(Superseded to 08544400)

$

$

Not available

42

Gravely 024844

WLDMT,HITCH 8 HP
(Superseded to 08544400)

$

$

Not available

43

Gravely 010405

PIN-HAIR-INT .15X2.937 YWZC
(Superseded to 06714000)

$3.49

$

In Stock, only 1 left!

0

44

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

NS

Gravely 040046

G - DECAL - MADE IN AMERICA
(Superseded to 03327700)

$

$

Not available
