40576 (5465) - Gravely Walk-Behind 2-Wheel Tractor, 10hp, 4-Speed, Electric Start FUEL AND EXHAUST SYSTEM Parts Diagram

Walk-Behind 2-Wheel Tractor, 10hp, 4-Speed, Electric Start

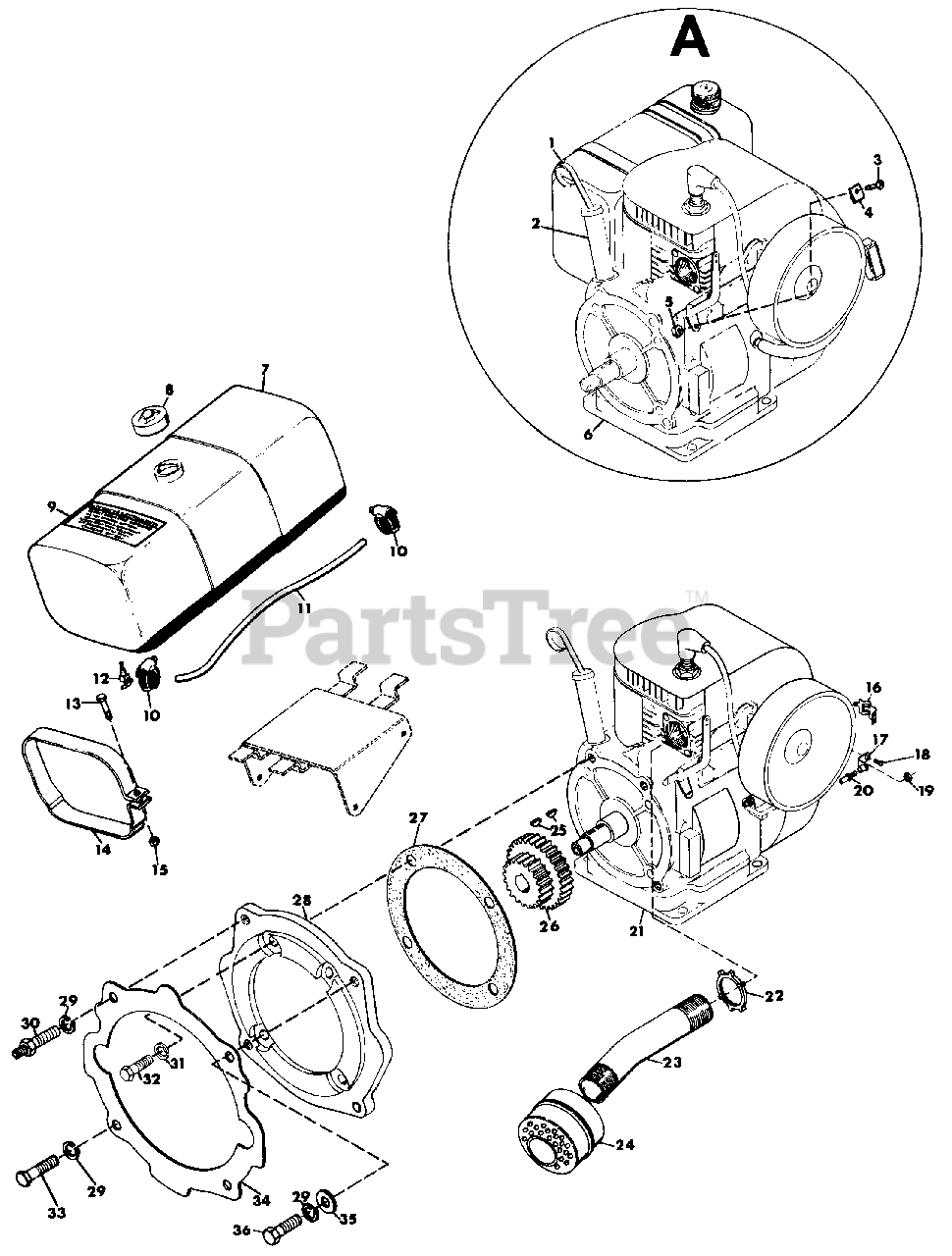

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 021173

D/STK,
(Superseded to 20319400)

Note: (MODEL 5260)

$

$

Not available

2

Gravely 021174

TUBE,OIL FILL
(Superseded to 20319500)

Note: (MODEL 5260)

$

$

Not available

3

Gravely 159920

SCR-MCH 10-24X.50 PHD
(Superseded to 06113000)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 015453

CLIP,
(Superseded to 20195700)

$

$

Not available

5

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 040395

ENG,8-HP MAN 2-WH

$

$

Not available

6

Gravely 040394

ENG,8-HP ELECT 2-WH

$

$

Not available

7

Gravely 010636

ASSEMBLY, FUEL TANK
(Superseded to 08575100)

Note: (Used Only On Model(s): 5260,5465,5665,5645).

$395.99

$

Usually ships in 4-12 days

0

8

Gravely 010756

CAP, GAS TANK
(Superseded to 08582100)

Note: (Used Only On Model(s): 5260,5465,5665,5645).

$

$

Not available

9

Gravely 011989

DECAL,E-SYSTEM WARNING
(Superseded to 05216700)

Note: (Used Only On Model(s): 5260,5465,5665).

$10.99

$

Usually ships in 4-12 days

0

10

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

Note: (Used Only On Model(s): 5260,5465,5665,5645).

$7.99

$

Usually ships in 4-12 days

0

11

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (Used Only On Model(s): 5260,5465,5665,5645).

$1.49

$

In Stock, Qty 20+

0

12

Gravely 007354

VALVE & STRAINER
(Superseded to 08860200)

Note: (Used Only On Model(s): 5260,5465,5665,5645).

$

$

Not available

13

Gravely 180024

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

Note: (Used Only On Model(s): 5260,5465,5665,5645).

$2.49

$

In Stock, only 2 left!

0

14

Gravely 010640

STRAP,FUEL TANK
(Superseded to 08581800)

Note: (Used Only On Model(s): 5260,5465,5665,5645).

$47.99

$

Usually ships in 4-12 days

0

15

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

Note: (Used Only On Model(s): 5260,5465,5665,5645).

$5.49

$

In Stock, Qty 12

0

16

Gravely 007331

CLIP,SPEED
(Superseded to 06931500)

$

$

Not available

17

Gravely 018522

BRKT,
(Superseded to 20259500)

$

$

Not available

18

Gravely 160515

SCR-MCH .25-20X.50
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

20

Gravely 018521

ADPT,CONDUIT
(Superseded to 06921000)

$

$

Not available

21

Gravely 038264

ENGINE, 12HP 2-WHEEL ELECTRIC

$

$

Not available

21

Gravely 040398

SHORTBLOCK
(Superseded to 20651500)

$

$

Not available

21

Gravely 040089

ENG,12HP ELECT., PS-471598

$

$

Not available

22

Gravely 010866

NUT,CONDUIT 1.00 PIPE

$

$

Not available

23

Gravely 010865

TUBE,MUFFLER
(Superseded to 21333900)

$

$

Not available

24

Gravely 008227

MFLR,
(Superseded to 20033200)

$

$

Not available

25

Gravely 124546

KEY-WDRF .16X.63 HRD #6
(Superseded to 06608500)

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 017838

GR,10/12 DP 21/30 TEETH
(Superseded to 08505300)

$

$

Not available

27

Gravely 010732

GSKT,ENGINE TO ADAPTOR
(Superseded to 08602700)

$10.99

$

In Stock, only 2 left!

0

27

Gravely 015718

GSKT,ENGINE TO ADAPTER
(Superseded to 08500400)

$10.99

$

In Stock, only 2 left!

0

28

Gravely 014938

ADPT,ENGINE
(Superseded to 08503200)

$

$

Not available

28

Gravely 010731

ADPT,ENGINE
(Superseded to 09022100)

$

$

Not available

29

Gravely 131100

WSHR-LK .438X.133 HVY YWZC
(Superseded to 06310700)

$3.49

$

In Stock, only 1 left!

0

30

Gravely 040404

STUD
(Superseded to 08541700)

Note: (Used Only On Model(s): 5260, 5465, 5665).

$

$

Not available

31

Gravely 131099

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$4.99

$

In Stock, Qty 17

0

32

Gravely 180121

BLT-HEX .38-16X.875 GR5 YWZC
(Superseded to 05932600)

$2.99

$

Usually ships in 4-12 days

0

32

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 180147

BLT-HEX .44-20X1.25 GR5 YWZC
(Superseded to 05964800)

$2.99

$

Usually ships in 4-12 days

0

33

Gravely 180146

BLT-HEX .44-14X1.25 GR5 YWZC
(Superseded to 05963800)

$2.99

$

In Stock, only 1 left!

0

34

Gravely 010635

GSKT,CHASSIS TO ADAPTER
(Superseded to 08602800)

$16.99

$

In Stock, only 2 left!

0

35

Gravely 120395

WSHR-FL-STL .469X.938X.065
(Superseded to 06429400)

$

$

Not available

36

Gravely 180149

BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

Note: (Used Only On Model(s): 5260, 5465, 5665).

$3.49

$

In Stock, Qty 6

0

36

Gravely 180149

BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

Note: (Used Only On Model(s): 5200, 5240, 5645).

$3.49

$

In Stock, Qty 6

0
