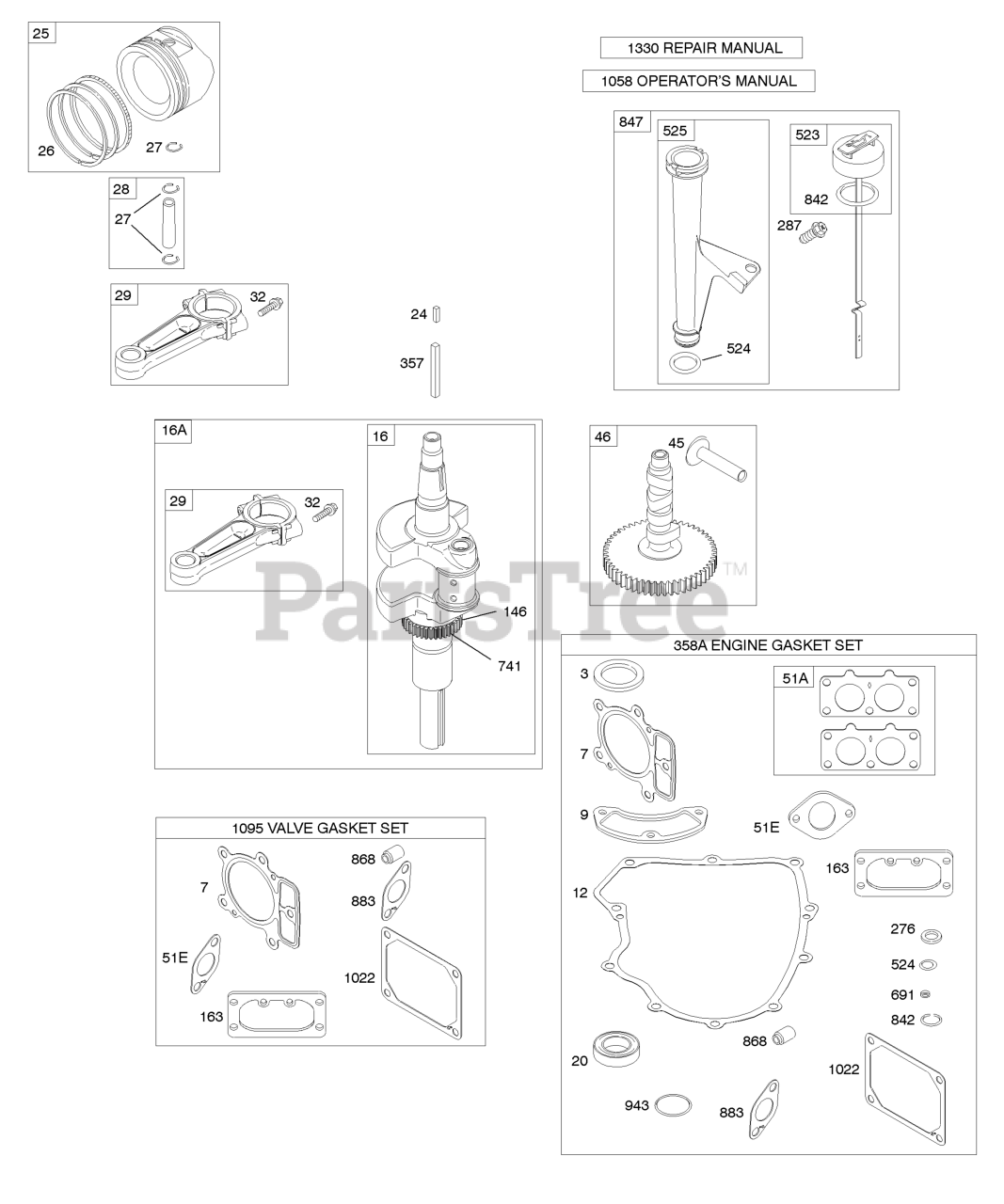

405777-0132-E1 - Briggs & Stratton Vertical Engine Camshaft, Crankshaft, Gasket Set - Engine, Gasket Set - Valve, Lubrication, Piston, Rings, Connecting Rod Parts Diagram

Vertical Engine

Camshaft, Crankshaft, Gasket Set - Engine, Gasket Set - Valve, Lubrication, Piston, Rings, Connecting Rod Parts Diagram

  • Title
3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 693997

GASKET, Cylinder Head

$24.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 690937

Gasket-Breather

$8.49

$

In Stock, Qty 7

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

$37.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton 699700

Crankshaft
(Superseded to 595707)

Note: Used After Code Date 04010800

$385.99

$

Usually ships in 2-12 days

0

16A

Briggs & Stratton 699701

Crankshaft
(Superseded to 595704)

Note: (Includes Connecting Rod) Used Before Code Date 04010900

$385.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

24

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499588

Piston Assembly
(Superseded to 793647)

Note: (Standard)

$137.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 499590

Piston Assembly
(Superseded to 793648)

Note: (.020" Oversize)

$159.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499606

Ring Set

Note: (.020" Oversize)

$61.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499604

Ring Set

Note: (Standard)

$69.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 690975

LOCK, Piston Pin

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 690229

Pin-Piston

Note: (Standard)

$17.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 699699

Rod-Connecting
(Superseded to 796209)

Note: (Standard) Used After Code Date 04010800

$18.99

$

In Stock, only 4 left!

0

29

Rod-Connecting

Note: (For Replacement Connecting Rod, See Reference 16A) Used Before Code Date 04010900

$

$

Not available

32

Briggs & Stratton 690976

SCREW

Note: (Connecting Rod)

$4.49

$

In Stock, only 3 left!

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

In Stock, only 3 left!

0

46

Briggs & Stratton 790562

CAMSHAFT
(Superseded to 797242)

$122.99

$

In Stock, only 1 left!

0

51A

Briggs & Stratton 791677

Gasket-Intake
(Superseded to 795123)

$4.99

$

In Stock, Qty 11

0

51E

Briggs & Stratton 690949

GASKET, Intake

$3.49

$

In Stock, Qty 14

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, only 4 left!

0

163

Briggs & Stratton 691001

GASKET, Air Cleaner

$3.49

$

In Stock, Qty 14

0

276

Briggs & Stratton 690997

Washer-Sealing

$7.99

$

In Stock, only 2 left!

0

287

Briggs & Stratton 691108

SCREW

Note: (Dipstick Tube)

$3.49

$

In Stock, Qty 20+

0

357

Briggs & Stratton 691483

KEY, Drive Pulley

$6.99

$

In Stock, only 3 left!

0

358A

Briggs & Stratton 694012

GASKET SET, Engine

$113.99

$

In Stock, only 2 left!

0

523

Briggs & Stratton 691036

Dipstick
(Superseded to 594528)

$18.99

$

In Stock, only 2 left!

0

524

$5.99

$

In Stock, Qty 12

0

525

Briggs & Stratton 691037

TUBE, Dipstick
(Superseded to 597129)

$21.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 790574

SEAL, Governor Shaft

$5.99

$

In Stock, Qty 10

0

741

$14.99

$

In Stock, only 1 left!

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 17

0

847

Briggs & Stratton 499602

Dipstick/Tube Assembly
(Superseded to 594609)

$47.99

$

In Stock, only 3 left!

0

868

$10.99

$

In Stock, Qty 10

0

883

Briggs & Stratton 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Oil Pump Cover)

$8.99

$

In Stock, only 4 left!

0

1022

Briggs & Stratton 690971

GASKET, Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1058

Briggs & Stratton 276245

Operator's Manual
(Superseded to 276352)

$

$

Not available

1095

Briggs & Stratton 694013

SET, Valve Gasket

$69.99

$

In Stock, Qty 9

0

1330

Briggs & Stratton 273521

Repair Manual

$34.99

$

In Stock, Qty 8
