406577-0139-E2 - Briggs & Stratton Vertical Engine Alternators, Ignition Parts Diagram

Vertical Engine

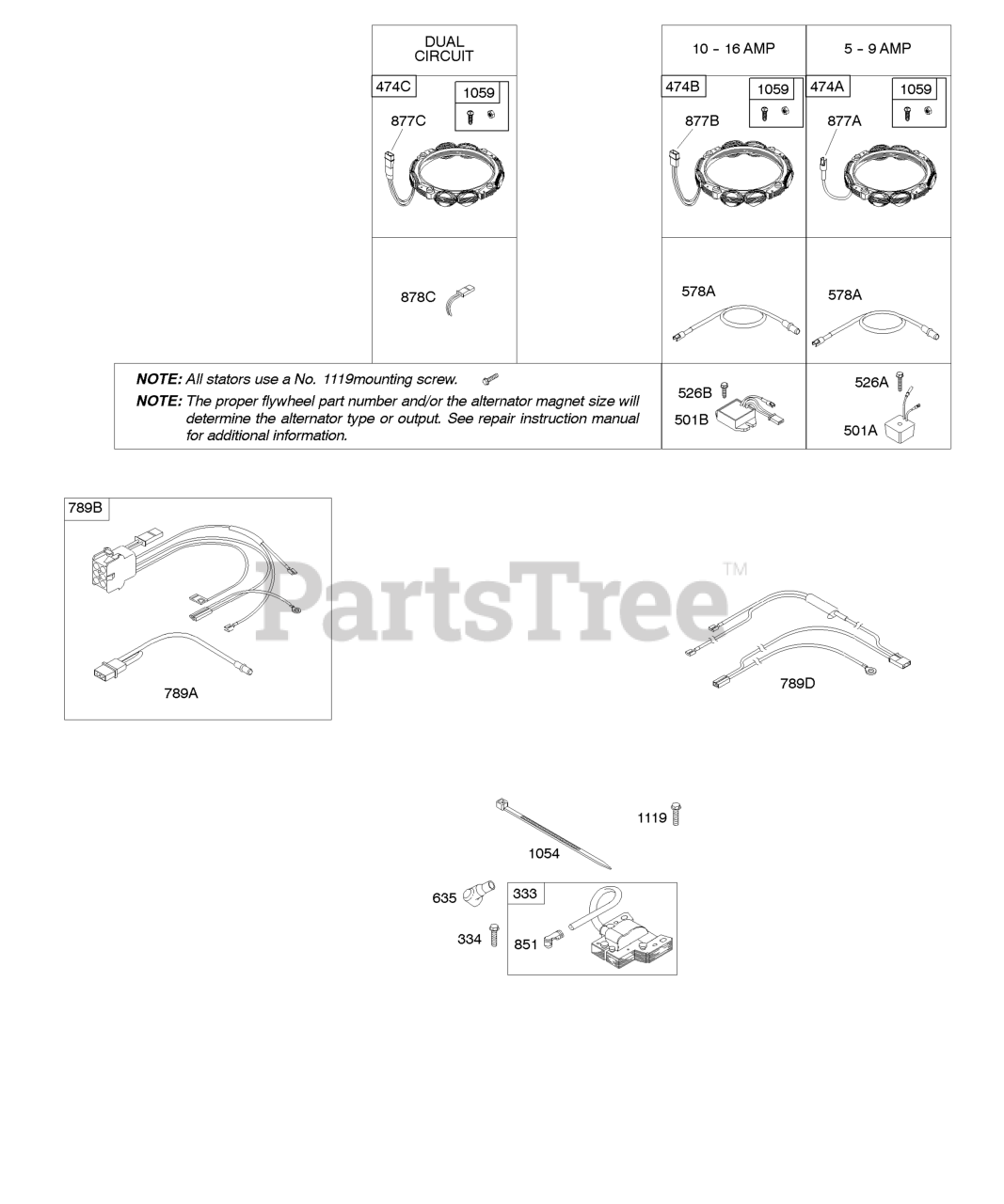

Alternators, Ignition Parts Diagram

  • Title
5

Briggs & Stratton 792299

Head-Cylinder
(Superseded to 796231)

Note: (Cylinder 1)

$235.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691108

SCREW

Note: (Breather Assembly)

$3.49

$

In Stock, Qty 20+

0

333

Briggs & Stratton 691060

Armature-Magneto
(Superseded to 592846)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

474A

Briggs & Stratton 696457

Alternator
(Superseded to 592829)

Note: (5/9 Amp. Regulated)

$102.99

$

In Stock, Qty 5

0

474B

Briggs & Stratton 696458

Alternator
(Superseded to 592830)

Note: (10-16 Amp Regulated)

$101.99

$

In Stock, Qty 6

0

474C

Briggs & Stratton 696459

Alternator
(Superseded to 592831)

Note: (Dual Circuit)

$101.99

$

In Stock, only 1 left!

0

501A

Briggs & Stratton 691188

Regulator
(Superseded to 794360)

$64.99

$

In Stock, Qty 5

0

501B

Briggs & Stratton 691185

Regulator
(Superseded to 845907)

$61.99

$

In Stock, Qty 10

0

526A

Briggs & Stratton 691129

SCREW

Note: (Regulator)

$3.99

$

In Stock, Qty 8

0

578A

Briggs & Stratton 691208

Wire Assembly

$20.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 20+

0

789A

Briggs & Stratton 790544

WIRE/CONNECTOR, Alternator

$43.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 698330

HARNESS, Wiring

$39.99

$

In Stock, only 2 left!

0

789D

Briggs & Stratton 691220

Harness-Wiring

$43.99

$

In Stock, only 4 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

877A

Briggs & Stratton 393537

Wire/Connector-Alternator

$

$

Not available

877B

Briggs & Stratton 399916

Wire/Connector-Alternator

$12.99

$

Usually ships in 2-12 days

0

877C

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$20.99

$

In Stock, only 1 left!

0

878C

Briggs & Stratton 398661

Harness-Alternator

$34.99

$

Usually ships in 2-12 days

0

1054

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

In Stock, only 1 left!

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
