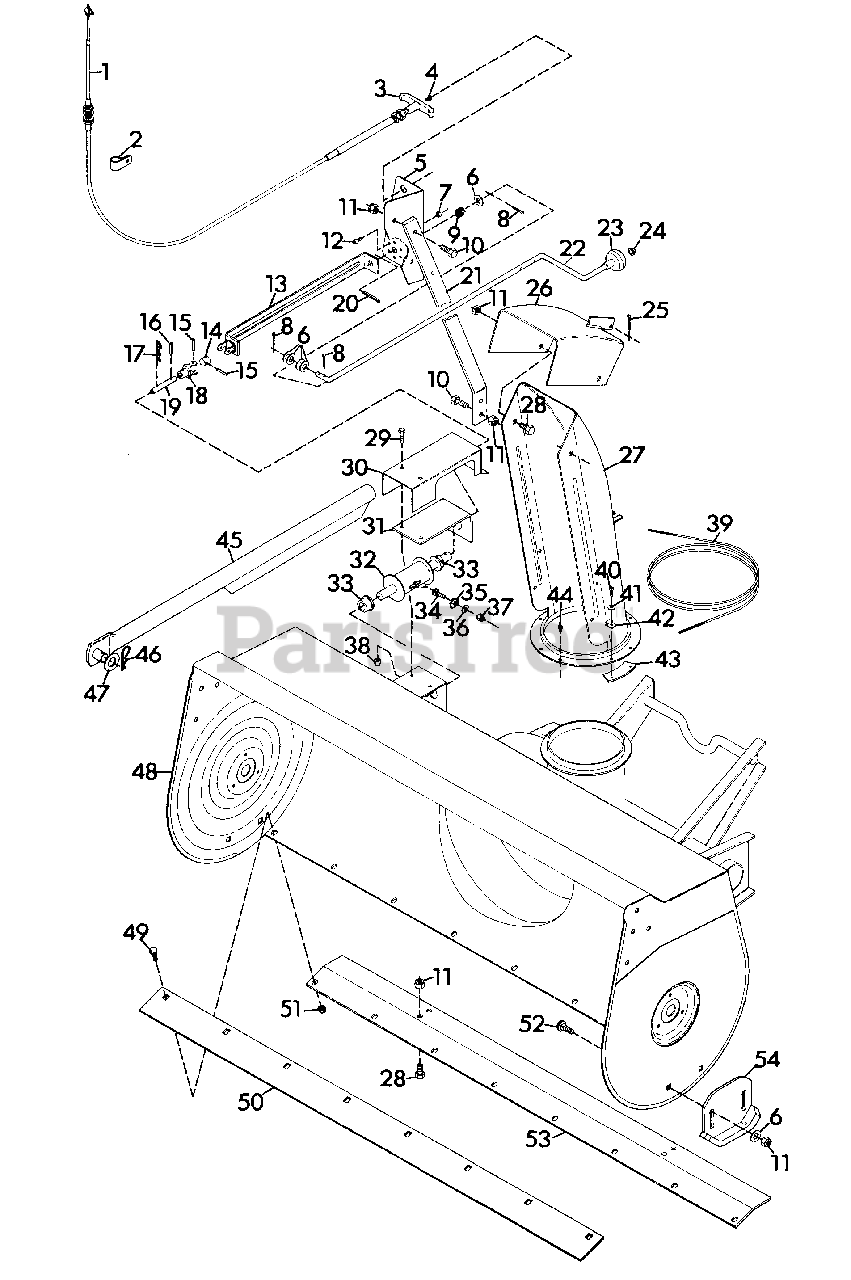

40693 - Gravely 40" Snow Blower for 4-Wheel Tractor HOUSING, DISCHARGE CHUTE AND CONTROLS Parts Diagram

40" Snow Blower for 4-Wheel Tractor

HOUSING, DISCHARGE CHUTE AND CONTROLS Parts Diagram

  • Title
1

Gravely 036898

CABLE, CONTROL
(Superseded to 06943400)

$144.20

$

In Stock, only 1 left!

0

2

Gravely 035313

CLAMP, NYLON
(Superseded to 03334000)

$

$

Not available

3

Gravely 036910

HANDLE, TEE
(Superseded to 07513700)

$46.90

$

Usually ships in 4-12 days

0

4

Gravely 036911

SCREW, MACHINE 10-32X.50
(Superseded to 06106500)

$2.12

$

Usually ships in 4-12 days

0

5

Gravely 041255

BRACKET, CONTROL
(Superseded to 21257600)

$

$

Not available

6

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$2.52

$

In Stock, Qty 20+

0

7

Gravely 120361

NUT, #10-24 HEX
(Superseded to 06536600)

$1.96

$

In Stock, only 3 left!

0

8

Gravely 179252

PIN, COTTER .06X1.00
(Superseded to 06707500)

$1.68

$

In Stock, Qty 5

0

9

Gravely 036058

COMPRESSION SPRING
(Superseded to 08313200)

$36.23

$

Usually ships in 4-12 days

0

10

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$2.80

$

Usually ships in 4-12 days

0

11

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$2.24

$

In Stock, Qty 20+

0

12

Gravely 036885

SCREW, #10-24X.375 CAP
(Superseded to 05915600)

$1.68

$

Usually ships in 4-12 days

0

13

Gravely 042056

BRACKET, SLOTTED
(Superseded to 03333543)

$22.30

$

Usually ships in 4-12 days

0

14

Gravely 042058

BLOCK, UNIVERSAL
(Superseded to 02470400)

$96.71

$

Usually ships in 4-12 days

0

15

Gravely 421202

PIN, SPRING. 187X1.000
(Superseded to 05808800)

$2.46

$

Usually ships in 4-12 days

0

16

Gravely 415236

PIN, SPRING .125X.750
(Superseded to 05803400)

$1.96

$

In Stock, Qty 5

0

17

Gravely 036566

HAIR PIN, INTERNAL
(Superseded to 06702900)

$2.12

$

Usually ships in 4-12 days

0

18

Gravely 042057

HALF, UNIVERSAL
(Superseded to 02470400)

$96.71

$

Usually ships in 4-12 days

0

19

Gravely 041258

ROD, CONNECTOR
(Superseded to 03333400)

$5.53

$

Usually ships in 4-12 days

0

20

Gravely 456542

PIN, SPRING .187X1.500
(Superseded to 05809400)

$

$

Not available

21

Gravely 037546

BAR, CRANK BRACKET
(Superseded to 03324343)

$

$

Not available

22

Gravely 041253

ROD, CONTROL
(Superseded to 08799300)

$

$

Not available

23

Gravely 036902

KNOB
(Superseded to 07508300)

$15.37

$

Usually ships in 4-12 days

0

24

Gravely 036903

CAP
(Superseded to 01019800)

$2.52

$

In Stock, Qty 20+

0

25

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$1.96

$

In Stock, Qty 11

0

26

Gravely 036893

DEFLECTOR, CHUTE
(Superseded to 53114400)

$

$

Not available

27

Gravely 036892

CHUTE, DISCHARGE
(Superseded to 03028353)

$

$

Not available

28

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$2.18

$

In Stock, only 3 left!

0

29

Gravely 180022

BOLT, HEX 1/4-20X1.00
(Superseded to 05901639)

$1.96

$

In Stock, only 2 left!

0

30

$

$

Not available

31

Gravely 041254

BRACKET, SPOOL

$8.89

$

Usually ships in 4-12 days

0

32

Gravely 036884

SPOOL
(Superseded to 03028643)

$33.48

$

Usually ships in 4-12 days

0

33

Gravely 010174

BUSHING, NYLON .76X1X.6 FLG.
(Superseded to 05518400)

$3.63

$

In Stock, Qty 5

0

34

Gravely 126203

BOLT, 1/4-20X.625 RD HD SQ NK
(Superseded to 06213800)

$3.58

$

Usually ships in 4-12 days

0

35

Gravely 038838

WASHER, LOCK SPECIAL 5/16 I.D.
(Superseded to 06310600)

$5.53

$

Usually ships in 4-12 days

0

36

Gravely 422845

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$1.96

$

In Stock, Qty 20+

0

37

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$1.96

$

In Stock, Qty 13

0

38

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$2.24

$

Usually ships in 4-12 days

0

39

Gravely 036888

CABLE
(Superseded to 03187100)

$159.61

$

Usually ships in 4-12 days

0

40

Gravely 036896

SCREW, TAPTITE 10-24X.75
(Superseded to 07406800)

$

$

Not available

41

Gravely 446161

WASHER, FLAT .219X.438X.049
(Superseded to 06401123)

$2.52

$

Usually ships in 4-12 days

0

42

Gravely 036897

CLAMP, CABLE
(Superseded to 06900300)

$

$

Not available

43

Gravely 036894

CLAMP, CHUTE
(Superseded to 52409200)

$29.29

$

In Stock, only 2 left!

0

44

Gravely 036895

SCREW, TAPTITE 10-24X.375
(Superseded to 07406700)

$

$

Not available

45

Gravely 011809

WELDMENT, PUSH ROD
(Superseded to 08863243)

$135.22

$

Usually ships in 4-12 days

0

46

Gravely 010405

COTTER, HAIR PIN
(Superseded to 06714000)

$2.80

$

In Stock, Qty 5

0

47

Gravely 131017

WASHER, FLAT .812X1.469X.134
(Superseded to 06401140)

$2.52

$

In Stock, Qty 20+

0

48

Gravely 042054

40" SNO THRO HOUSING
(Superseded to 03333100)

$

$

Not available

48

Gravely 042055

48" SNO THRO HOUSING
(Superseded to 03333200)

$

$

Not available

49

Gravely 126353

BOLT, CARRIAGE 5/16-18X.875
(Superseded to 06209200)

$

$

Not available

50

Gravely 040496

SCRAPER BLADE - 40"
(Superseded to 03331743)

$

$

Not available

50

Gravely 040495

SCRAPER BLADE - 48"
(Superseded to 03331843)

$104.09

$

Usually ships in 4-12 days

0

51

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$2.52

$

In Stock, Qty 20+

0

52

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK
(Superseded to 06200235)

$2.80

$

In Stock, Qty 20+

0

53

Gravely 038824

SCRAPER BLADE BRACE - 40"

$

$

Not available

53

Gravely 037522

SCRAPER BLADE BRACE - 48"
(Superseded to 03185843)

$155.08

$

Usually ships in 4-12 days

0

54

Gravely 040825

RUNNER, SKID SHOE
(Superseded to 03075553)

$35.72

$

Usually ships in 4-12 days

0

NS

Gravely 036906

DECAL, CHUTE CRANK
(Superseded to 07878800)

$

$

Not available

NS

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$33.48

$

Usually ships in 4-12 days

0

NS

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$25.49

$

Usually ships in 4-12 days

0

NS

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.19

$

Usually ships in 4-12 days

0

NS

Gravely 040827

DECAL, CHUTE CRANK
(Superseded to 03334100)

$

$

Not available
