40694 - Gravely 32" Snow Blower for 2-Wheel Tractor GEARCASE AND RAKE Parts Diagram

32" Snow Blower for 2-Wheel Tractor

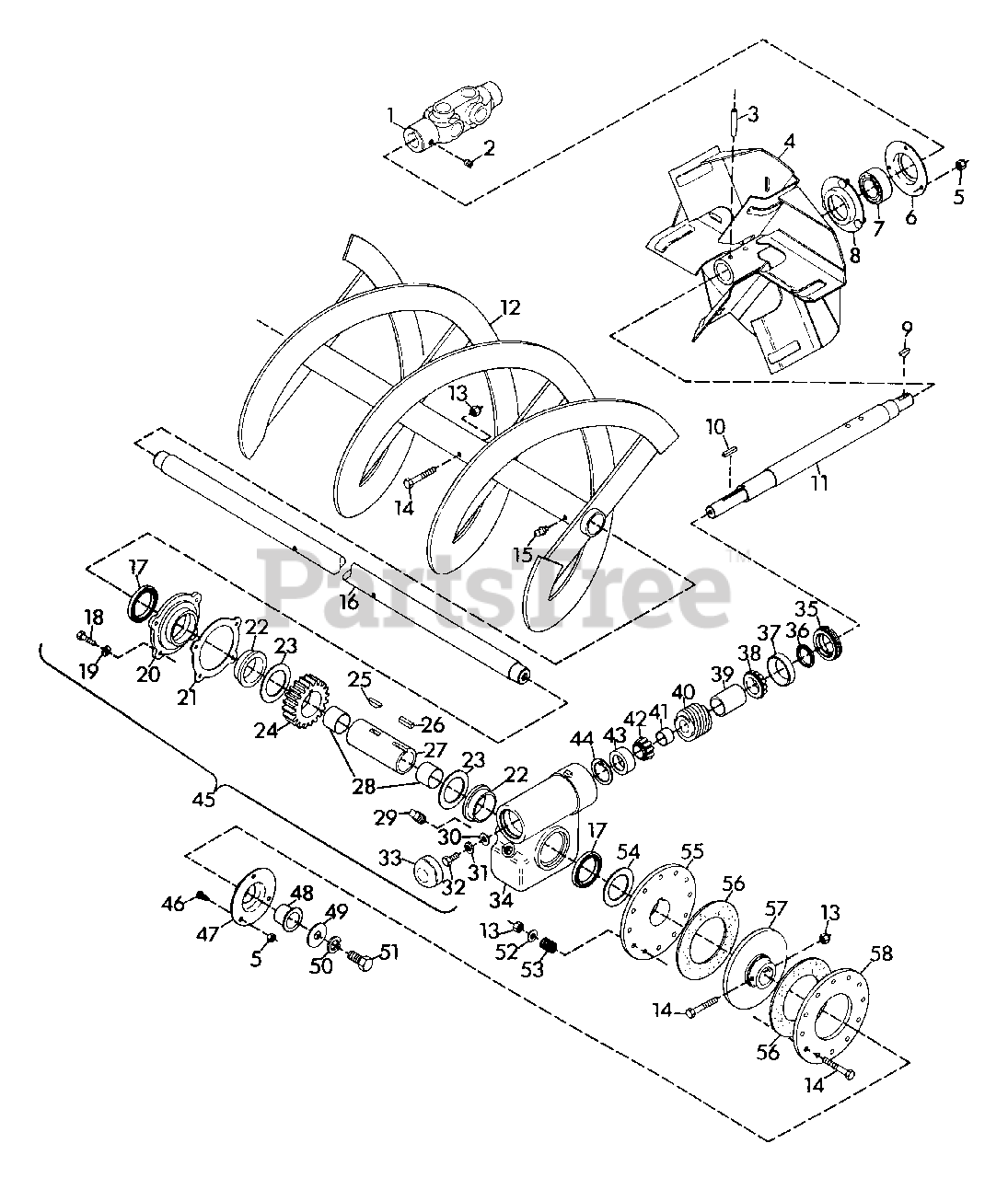

GEARCASE AND RAKE Parts Diagram

  • Title

1

Gravely 038834

G-JOINT ASSEMBLY
(Superseded to 03329900)

$593.99

$

Usually ships in 4-12 days

0

2

Gravely 102592

SCR-SET .38-16X.38 SKHCUP OH
(Superseded to 06004000)

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 036869

PIN-ROLL .313X1.75
(Superseded to 05801500)

$2.99

$

In Stock, only 2 left!

0

4

Gravely 037542

FAN
(Superseded to 03188900)

$685.99

$

Usually ships in 4-12 days

0

5

Gravely 424215

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 036874

BEARING FLANGE
(Superseded to 03185900)

$23.99

$

In Stock, only 3 left!

0

7

Gravely 036876

BRG-BALL 1.0X2.0X.56 (1641)
(Superseded to 05416000)

$16.99

$

In Stock, only 2 left!

0

8

Gravely 036875

BEARING FLANGE
(Superseded to 03186000)

$46.99

$

Usually ships in 4-12 days

0

9

Gravely 120502

KEY-WDRF .188X.875 HRDN #11
(Superseded to 06608200)

$3.99

$

In Stock, only 1 left!

0

10

Gravely 036230

KEY-SQ .188X1.0X.188 SAE 8630
(Superseded to 06601300)

$1.99

$

In Stock, only 1 left!

0

11

Gravely 038817

WORM SHAFT
(Superseded to 03328200)

$360.99

$

Usually ships in 4-12 days

0

12

Gravely 038832

RAKE, RIGHT-32(1.12ID X 15.75)
(Superseded to 53302900)

$452.99

$

Usually ships in 4-12 days

0

12

Gravely 038833

RAKE, LEFT-32"(1.12ID X 15.75)
(Superseded to 53303000)

$

$

Not available

13

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 180087

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

15

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

16

Gravely 038831

32 INCH RAKE SHAFT
(Superseded to 03329100)

$263.99

$

Usually ships in 4-12 days

0

17

Gravely 036863

SEAL 1.625X2.125X.250
(Superseded to 05607000)

$10.99

$

In Stock, only 2 left!

0

18

Gravely 180021

BLT-HEX .25-20X.875
(Superseded to 05934000)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 121753

WSHR,LOCK 1/4 EXT TH TYA
(Superseded to 21051100)

$

$

Not available

20

Gravely 036861

GEAR CASE COVER
(Superseded to 02401300)

$139.99

$

Usually ships in 4-12 days

0

21

Gravely 036862

GASKET
(Superseded to 00200800)

$3.99

$

In Stock, Qty 8

0

22

Gravely 036860

BSHG-FLG .683X1.87X1.68X2.250
(Superseded to 05505900)

$15.99

$

In Stock, only 2 left!

0

23

Gravely 036859

WSHR-FL-STL 1.625X2.500X.012
(Superseded to 06408700)

$11.99

$

In Stock, only 2 left!

0

24

Gravely 036858

WORM & GEAR SERVICE ASSEMBLY
(Superseded to 52400900)

$180.99

$

In Stock, only 1 left!

0

25

Gravely 038820

KEY-FTHR .25X.875X.25 SAE 8630
(Superseded to 06604800)

$7.49

$

Usually ships in 4-12 days

0

26

Gravely 037536

KEY-SQ .25X.625X.375
(Superseded to 06604700)

$9.99

$

In Stock, only 2 left!

0

27

Gravely 037530

GEAR CASE SHAFT
(Superseded to 03054700)

$116.99

$

In Stock, only 1 left!

0

28

Gravely 037532

BSHG-SLV 1.125X1.250X1.000
(Superseded to 05513900)

$14.99

$

Usually ships in 4-12 days

0

29

Gravely 035945

PIPE PLUG
(Superseded to 00113800)

$6.49

$

Usually ships in 4-12 days

0

30

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 120379

WSHR-LK .313 SP
(Superseded to 06304800)

$

$

Not available

32

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 036856

DUST CAP
(Superseded to 00403700)

$18.99

$

In Stock, only 2 left!

0

34

Gravely 037524

GEAR CASE - CAST IRON

$

$

Not available

35

Gravely 037529

ADJUSTMENT PLUG
(Superseded to 03188200)

$59.99

$

Usually ships in 4-12 days

0

36

Gravely 037528

SEAL 1.125X1.375X.125
(Superseded to 05604600)

$10.99

$

In Stock, Qty 5

0

37

Gravely 037527

ASM,BEARING CUP&CONE
(Superseded to 21245800)

$29.99

$

In Stock, Qty 20+

0

38

Gravely 037526

ASM,BEARING CUP&CONE
(Superseded to 21245800)

$29.99

$

In Stock, Qty 20+

0

39

Gravely 036352

BEARING SPACER 1.032X1.25X1.78
(Superseded to 03188100)

$27.99

$

Usually ships in 4-12 days

0

40

Gravely 036853

WORM & GEAR SERVICE ASSEMBLY
(Superseded to 52400900)

$180.99

$

In Stock, only 1 left!

0

41

Gravely 036852

BSHG, SPCR .755X1.12X.50 PM
(Superseded to 00200500)

$7.49

$

In Stock, Qty 7

0

42

Gravely 018446

BRG-CONE .750X.61
(Superseded to 05404500)

$29.99

$

In Stock, Qty 20+

0

43

Gravely 018445

BRG-CUP 1.781X.475
(Superseded to 05404400)

$11.99

$

In Stock, Qty 17

0

44

Gravely 036921

RG-RTNG-INT 1.781X.062
(Superseded to 05707500)

$9.99

$

In Stock, Qty 7

0

45

Gravely 53302000

GEAR CASE - 16.23 6BLD - C.I.

$

$

Not available

46

Gravely 036873

BLT-SERNK SL .25-20X.50 YWZC
(Superseded to 07028600)

$3.99

$

In Stock, only 4 left!

0

47

Gravely 036871

BEARING SUPPORT
(Superseded to 05063300)

$30.99

$

In Stock, only 2 left!

0

48

Gravely 036872

BSHG-FLG 1.000X1.12X.62X1.50BR
(Superseded to 05503500)

$13.99

$

In Stock, Qty 14

0

49

Gravely 036840

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

50

Gravely 131101

WSHR-LK .500X.151 HVY YWZC
(Superseded to 06300117)

$2.99

$

In Stock, only 2 left!

0

51

Gravely 180173

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

52

Gravely 120386

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

53

Gravely 012871

SG-COMP .156X.343X.75 WLD??
(Superseded to 08354000)

$9.99

$

Usually ships in 4-12 days

0

54

Gravely 037535

WSHR-FL-NYL 1.625X2.500X.060
(Superseded to 06421100)

$9.99

$

Usually ships in 4-12 days

0

55

Gravely 037537

DRIVER
(Superseded to 03055000)

$

$

Not available

56

Gravely 037538

FRICTION DISC
(Superseded to 03055100)

$

$

Not available

57

Gravely 037539

DRIVEN PLATE
(Superseded to 03055200)

$

$

Not available

58

Gravely 037540

PRESSURE PLATE
(Superseded to 03055300)

$

$

Not available
