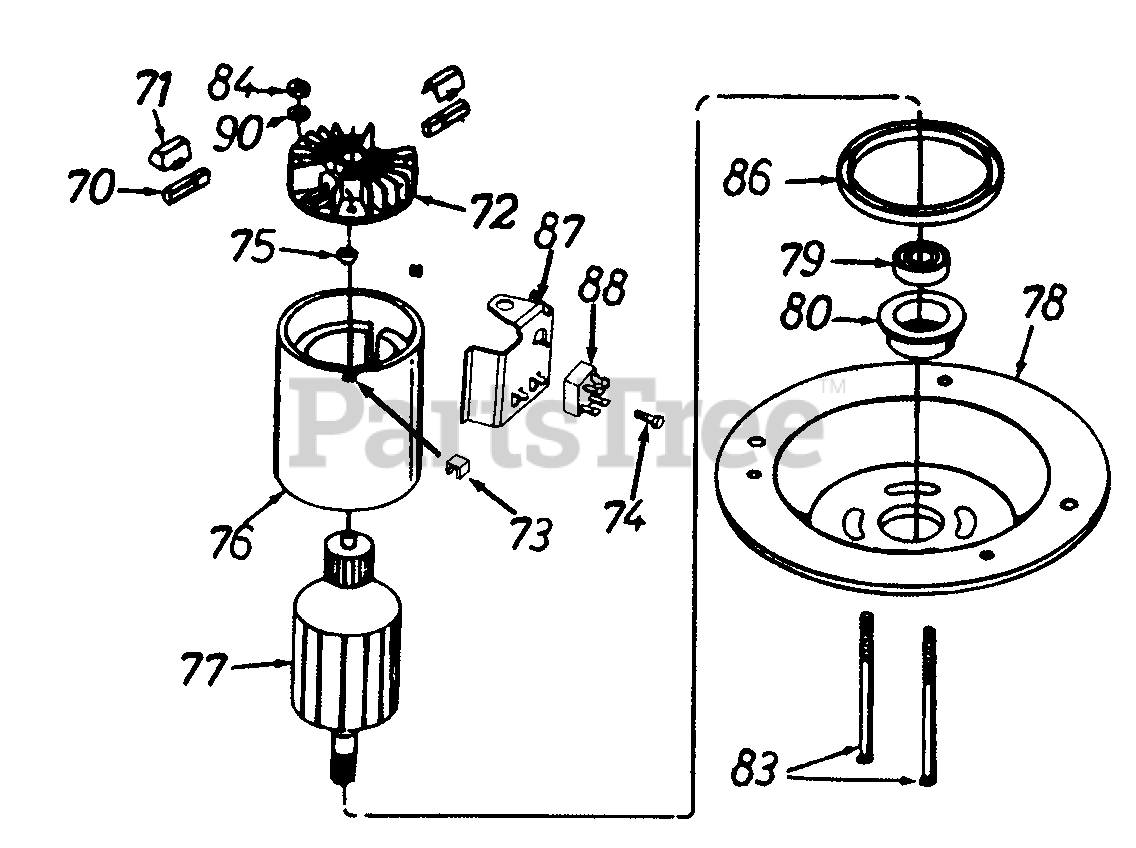

407 (186-407-100) - Cub Cadet Walk-Behind Mower, Electric (1996) Motor Assembly Parts Diagram

Walk-Behind Mower, Electric

Motor Assembly Parts Diagram

  • Title

70

Cub Cadet 624-0031

Brush and Liner Ass'y.

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$

$

Not available

71

Cub Cadet 724-0200

Brush Holder Cap
(Superseded to 924-0200)

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$

$

Not available

72

Cub Cadet 624-0070

End Shield Ass'y. w/Plug

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49);(Incl. Ref. 70 & 71)

$

$

Currently unavailable

73

Cub Cadet 721-0305

Insulator Wire (Output)

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$

$

Currently unavailable

74

Cub Cadet 710-0436

Hex Tap Scr. #10-16 x .62" Lg.
(Superseded to 710-0651)

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$3.49

$

Usually ships in 3-6 days

0

75

Cub Cadet 741-0875

Needle Bearing

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$

$

Not available

76

UNKNOWN

$

$

Not available

77

Cub Cadet 624-0029

Armature Ass'y.

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$

$

Currently unavailable

78

Cub Cadet 724-0194

Motor End Plate

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$

$

Currently unavailable

79

Cub Cadet 741-0124

Ball Bearing
(Superseded to 941-0600)

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$23.99

$

In Stock, Qty 20+

0

80

Cub Cadet 748-0348

Bearing Adapter

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$

$

Not available

83

Cub Cadet 710-1176

Carriage Bolt

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$

$

Not available

84

Cub Cadet 712-0324

Hex L-Nut 1/4-20 Thd.

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$3.49

$

In Stock, Qty 20+

0

86

Cub Cadet 721-0306

Motor Hsg. Insulator

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$

$

Not available

87

Cub Cadet 782-5016

Brkt.-Rectifier/Heat Sink

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$

$

Not available

88

Cub Cadet 725-1631

Rectifier

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$

$

Not available

90

Cub Cadet 736-3090

FI-Wash..26" I.D. x.72" O.D.

Note: Part of Motor, Switch & Cord Ass'y. Comp. (Ref.49)

$6.49

$

In Stock, only 2 left!

0
