407 (590-407-100) - Cub Cadet Backhoe att Boom Parts Diagram

Backhoe

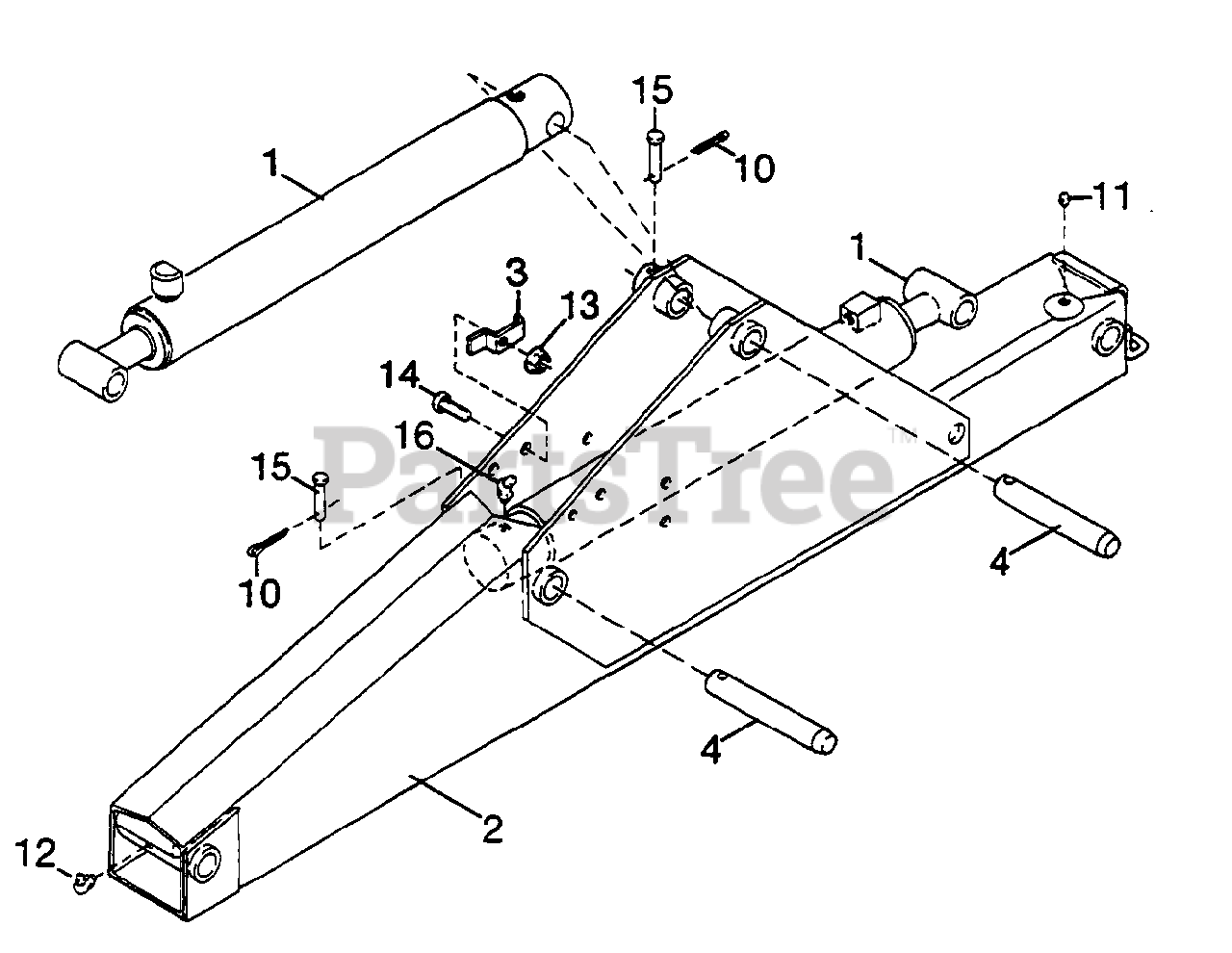

Boom Parts Diagram

  • Title

1

Cub Cadet WM-62290

2-1/2 x 16-3/4 Hydraulic cylinder assembly

Note: (See "2-1/2" Bore Hydraulic Boom & Dipperstick Cylinders" illustration and parts list for breakdown)

$

$

Not available

2

Cub Cadet WM-62468

Boom weldment assembly

$

$

Not available

3

Cub Cadet WM-31223

Cylinder hose clamp

$

$

Not available

4

Cub Cadet WM-62295

Pin, Pivot 6-1/4 x 1"

$

$

Not available

10

Cub Cadet WM-62523

1/16 x 1/2 Cotter pin

Note: Obtain Locally

$

$

Not available

11

Cub Cadet WM-1972

1/4 - 28 Tapered thread grease fitting
(Superseded to 937-0146)

Note: Obtain Locally

$5.99

$

In Stock, only 2 left!

0

12

Cub Cadet WM-2985

1/4 - 28 Threaded 90° grease fitting
(Superseded to 737-3004)

Note: Obtain Locally

$12.99

$

In Stock, only 3 left!

0

13

Cub Cadet WM-62521

1/4 NC Flanged hex locknut

$

$

Not available

14

Cub Cadet WM-3184

1/4 NC x 1-1/4 Hex head cap screw GR5
(Superseded to 710-0106)

Note: Obtain Locally

$4.49

$

In Stock, Qty 12

0

15

Cub Cadet WM-62425

1/4 x 1-7/8 Clevis pin

$

$

Not available

16

Cub Cadet WM-3584

1/4 - 28 Threaded 45° grease fitting

Note: Obtain Locally

$

$

Not available
