407 (590-407-100) - Cub Cadet Backhoe att Console Valve Parts Diagram

Backhoe

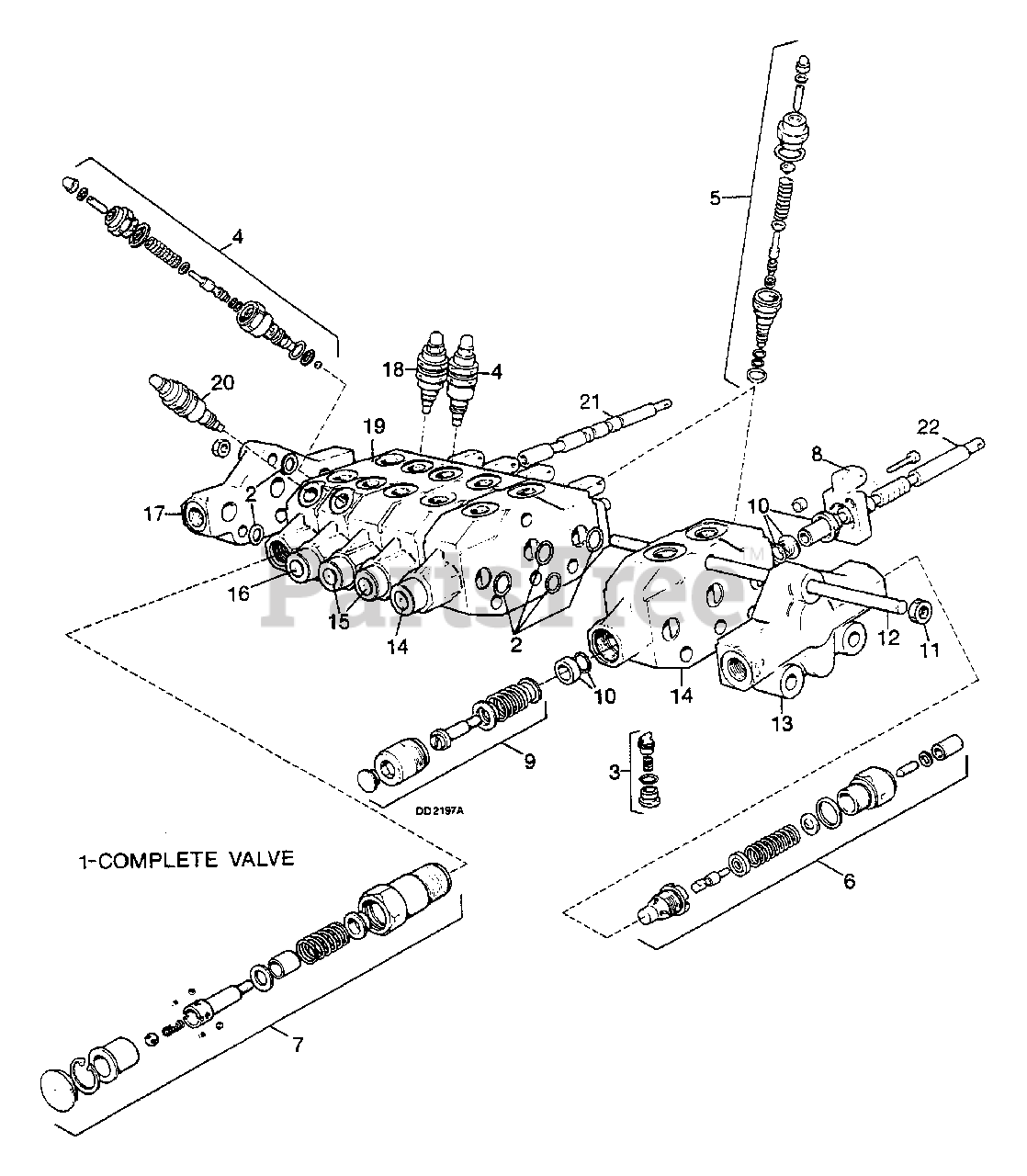

Console Valve Parts Diagram

  • Title

1

Cub Cadet WM-65699

Console valve

$

$

Not available

2

Cub Cadet WM-33338

Section seal repair kit

$

$

Not available

3

Cub Cadet WM-33339

Check valve assembly

$

$

Not available

4

Cub Cadet WM-33340

Shock/dampening valve, 2000 psi

$

$

Not available

5

Cub Cadet WM-33341

Shock/dampening valve, 2500 psi

$336.99

$

In Stock, only 1 left!

0

6

Cub Cadet WM-33342

Relief valve assembly

$

$

Not available

7

Cub Cadet WM-33343

Spool position control asy

$

$

Not available

8

Cub Cadet WM-33447

Lever bracket

$

$

Not available

9

Cub Cadet WM-33345

Spool position control asy

$

$

Not available

10

Cub Cadet WM-33346

Spool repair kit

$56.99

$

Usually ships in 3-6 days

0

11

Cub Cadet WM-30515

8mm x 1.25mm Pitch hex nut
(Superseded to 712-3077)

$

$

Not available

12

Cub Cadet WM-33440

M8 x 1.25 x 276 Tie rod

$

$

Not available

13

Cub Cadet WM-33441

Front port inlet section compl.

$

$

Not available

14

Cub Cadet WM-33442

Dipperstick & bucket segments complete

Note: (Incl. body, spool, chk valve & 2500 psi relief asy)

$

$

Not available

15

Cub Cadet WM-33443

Stabilizer segment complete

Note: (Incl. body, spool & chk valve)

$

$

Not available

16

Cub Cadet WM-33444

Swing segment complete

Note: (Incl. body, spool, check valve & two 2000 psi relief assemblies)

$

$

Not available

17

Cub Cadet WM-33445

Standard exhaust section

$

$

Not available

18

Cub Cadet WM-33446

Shock/dampening valve, 3500 psi

$

$

Not available

19

Cub Cadet WM-33448

Boom segment complete

Note: (Includes body, spool with float position, check valve, 3500 psi & 2500 psi relief assemblies)

$

$

Not available

20

Cub Cadet WM-33449

Shock/dampening valve, 2500 psi

$

$

Not available

21

Spool

Note: (For boom segment only)

$

$

Not available

22

Spool

$

$

Not available
