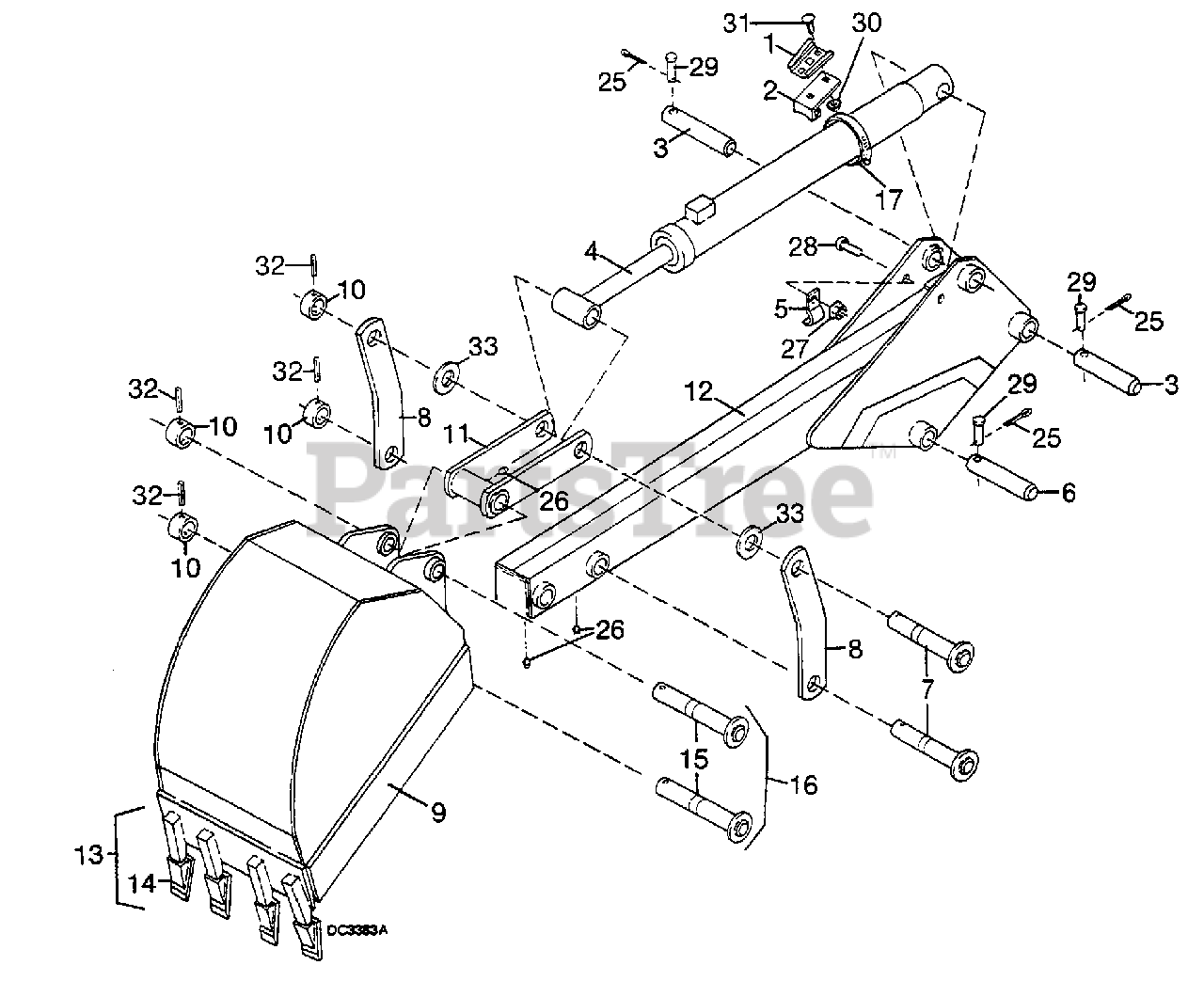

407 (590-407-100) - Cub Cadet Backhoe att Dipperstick & Bucket Parts Diagram

Backhoe

Dipperstick & Bucket Parts Diagram

  • Title

1

Cub Cadet WM-62484

Socket, SMV emblem

$

$

Not available

2

Cub Cadet WM-62263

Bracket, SMV socket

$

$

Not available

3

Cub Cadet WM-62267

Pin, Pivot 4-7/8 x 1"

$

$

Not available

4

Cub Cadet WM-62261

2 x 16-3/4 Hydraulic cylinder

Note: (See "2" Bore Hydraulic Bucket & Stabilizer Cylinders" illustration and parts list for breakdown)

$

$

Not available

5

Cub Cadet WM-62269

Hose clamp

$

$

Not available

6

Cub Cadet WM-62266

Pivot pin, Boom 8-1/2 x 1"

$

$

Not available

7

Cub Cadet WM-33372

Rotating pivot pin 6 x 1"

$

$

Not available

8

Cub Cadet WM-33375

Link arm

$

$

Not available

9

Cub Cadet WM-67340

8" Standard bucket

$

$

Currently unavailable

9

Cub Cadet WM-67341

12" Standard bucket

$

$

Not available

9

Cub Cadet WM-67344

12" Hvy-duty bucket
(Superseded to WM-37712)

Note: (Optional)

$

$

Not available

9

Cub Cadet WM-67342

16" Standard bucket

$

$

Not available

9

Cub Cadet WM-67345

16" Hvy-duty bucket

Note: (Optional)

$

$

Not available

9

Cub Cadet WM-67343

18" Standard bucket

$

$

Not available

9

Cub Cadet WM-67346

18" Hvy-duty bucket

Note: (Optional)

$

$

Not available

9

Cub Cadet WM-67347

24" Hvy-duty bucket

Note: (Optional)

$

$

Not available

10

Cub Cadet WM-33374

Pivot pin retaining sleeve

$

$

Not available

11

Cub Cadet WM-33376

Bucket arm

$

$

Not available

12

Cub Cadet WM-33979

Dipperstick assembly

$

$

Not available

13

Cub Cadet WM-34193

Shank & tooth asy

Note: (HD buckets only)

$

$

Not available

13

Cub Cadet WM-33419

Shank & tooth asy 2/0

Note: (Standard buckets only)

$

$

Not available

14

Cub Cadet WM-30000

Tooth

Note: (Hvy-duty buckets only)

$

$

Not available

14

Cub Cadet WM-33425

Tooth 2/0

Note: (Std buckets only)

$

$

Not available

15

Cub Cadet WM-34953

Pivot Pin assembly, 1.0 x 7.25

$

$

Not available

16

Cub Cadet WM-33950

HD Pin Kit

Note: (Includes two each of items 10, 15 & 32)

$

$

Not available

17

Cub Cadet WM-62259

Hose clamp

$

$

Not available

25

Cub Cadet WM-62523

1/16 x 1/2 Cotter pin

Note: Obtain Locally

$

$

Not available

26

Cub Cadet WM-1972

1/4-28 Taper thread grease fitting
(Superseded to 937-0146)

Note: Obtain Locally

$5.49

$

In Stock, only 2 left!

0

27

Cub Cadet WM-62521

1/4 NC Flanged hex locknut

$

$

Not available

28

Cub Cadet WM-2457

1/4 NC x 3/4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

29

Cub Cadet WM-62425

1/4 x 1-7/8 Clevis pin

$

$

Not available

30

Cub Cadet WM-14139

5/16 NC Flanged hex locknut

$

$

Not available

31

Cub Cadet WM-62532

5/16 NC x 1/2 Carriage bolt
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet WM-11880

5/16 x 1-3/4 Spirol pin

$

$

Not available

33

Cub Cadet WM-1863

1" SAE Flat washer

$

$

Not available
