40709 - Gravely Rear PTO for 4-Wheel Tractor REAR PTO Parts Diagram

Rear PTO for 4-Wheel Tractor

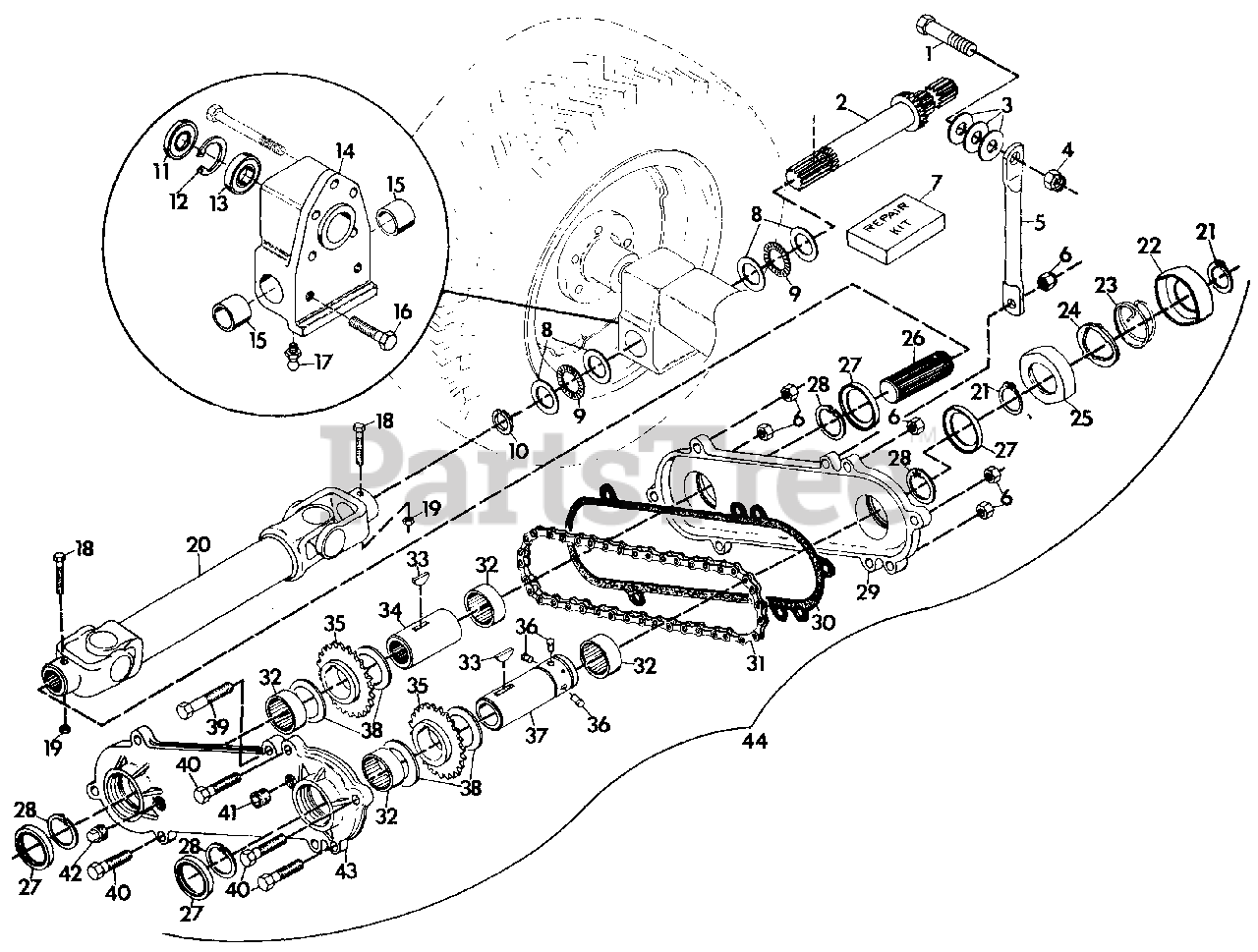

REAR PTO Parts Diagram

  • Title

1

Gravely 180181

BOLT, HEX 1/2-13X2.00
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

2

Gravely 040708

SHAFT
(Superseded to 08751500)

$

$

Not available

3

Gravely 120389

WASHER, FLAT .500X1.250X.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

4

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 040707

BRACKET, REAR PTO
(Superseded to 08655400)

$

$

Not available

6

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

7

Gravely 024560

KIT, REPAIR U-JOINT
(Superseded to 03155800)

$

$

Not available

8

Gravely 019340

RACE, BEARING THRUST
(Superseded to 06435300)

$4.99

$

In Stock, only 4 left!

0

9

Gravely 011225

BEARING, NEEDLE THRUST
(Superseded to 05427900)

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 014987

RING, RETAINING 1.00 SHAFT
(Superseded to 05711800)

$9.49

$

Usually ships in 4-12 days

0

11

Gravely 018031

SEAL, OIL AXLE
(Superseded to 05618200)

$21.99

$

In Stock, only 1 left!

0

12

Gravely 018812

RING, RETAINING
(Superseded to 05712900)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 018029

BEARING, BALL 1.250X2.250X.500
(Superseded to 05426600)

$37.99

$

Usually ships in 4-12 days

0

14

Gravely 034831

ASSEMBLY, AXLE RETAINER
(Superseded to 08736600)

$

$

Not available

15

Gravely 018977

BEARING, BRONZE 1.002X1.378X1.000
(Superseded to 05421400)

$26.99

$

Usually ships in 4-12 days

0

16

Gravely 180173

BOLT, HEX 1/2-13X1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

17

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

18

Gravely 180044

BOLT, HEX 1/4-20X2.00
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

20

Gravely 018971

SHAFT, DRIVE(REAR)
(Superseded to 08713500)

Note: (REAR)

$

$

Not available

21

Gravely 018962

RING, RETAINING
(Superseded to 05713200)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 018967

RETAINER, OUTER
(Superseded to 21279700)

$

$

Not available

23

Gravely 018965

SPRING
(Superseded to 08328600)

$

$

Not available

24

Gravely 018966

CAM
(Superseded to 08713200)

$

$

Not available

25

Gravely 018963

RETAINER, INNER
(Superseded to 08658000)

$

$

Not available

26

Gravely 018972

SHAFT
(Superseded to 08713600)

$

$

Not available

27

Gravely 018961

SEAL, OIL 1.500X2.125X.312
(Superseded to 05615400)

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 018960

RING, RETAINING
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 018948

HOUSING, REAR
(Superseded to 08712700)

$

$

Not available

30

Gravely 018958

GASKET
(Superseded to 08736300)

$

$

Not available

31

Gravely 018957

CHAIN, ROLLER
(Superseded to 08652100)

$

$

Not available

32

Gravely 018950

BEARING, NEEDLE 1.500X1.875X.50
(Superseded to 05421300)

$

$

Not available

33

Gravely 431787

KEY, WOODRUFF .187X.625 HARD #61
(Superseded to 06609300)

$2.99

$

In Stock, only 2 left!

0

34

Gravely 018956

SHAFT
(Superseded to 08713100)

$

$

Not available

35

Gravely 018953

SPROCKET, 5/8 PITCH 14 TEETH
(Superseded to 08713000)

$

$

Not available

36

Gravely 018964

PIN
(Superseded to 06704700)

$

$

Not available

37

Gravely 018952

SHAFT
(Superseded to 08712900)

$

$

Not available

38

Gravely 018954

BEARING, THRUST RACE
(Superseded to 06432200)

$13.99

$

In Stock, only 1 left!

0

39

Gravely 180134

BOLT, HEX 3/8-16X2.50
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

40

Gravely 180130

BOLT, HEX 3/8-16X2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 13

0

41

Gravely 018968

PLUG, VENTED
(Superseded to 07017700)

$

$

Not available

42

Gravely 103880

PLUG, PIPE .50 SQ HD STEEL
(Superseded to 07023900)

$3.49

$

Usually ships in 4-12 days

0

43

Gravely 018949

HOUSING, FRONT
(Superseded to 08712800)

$

$

Not available

44

Gravely 018946

ASSEMBLY, DRIVE CHAIN
(Superseded to 08712600)

$

$

Not available
