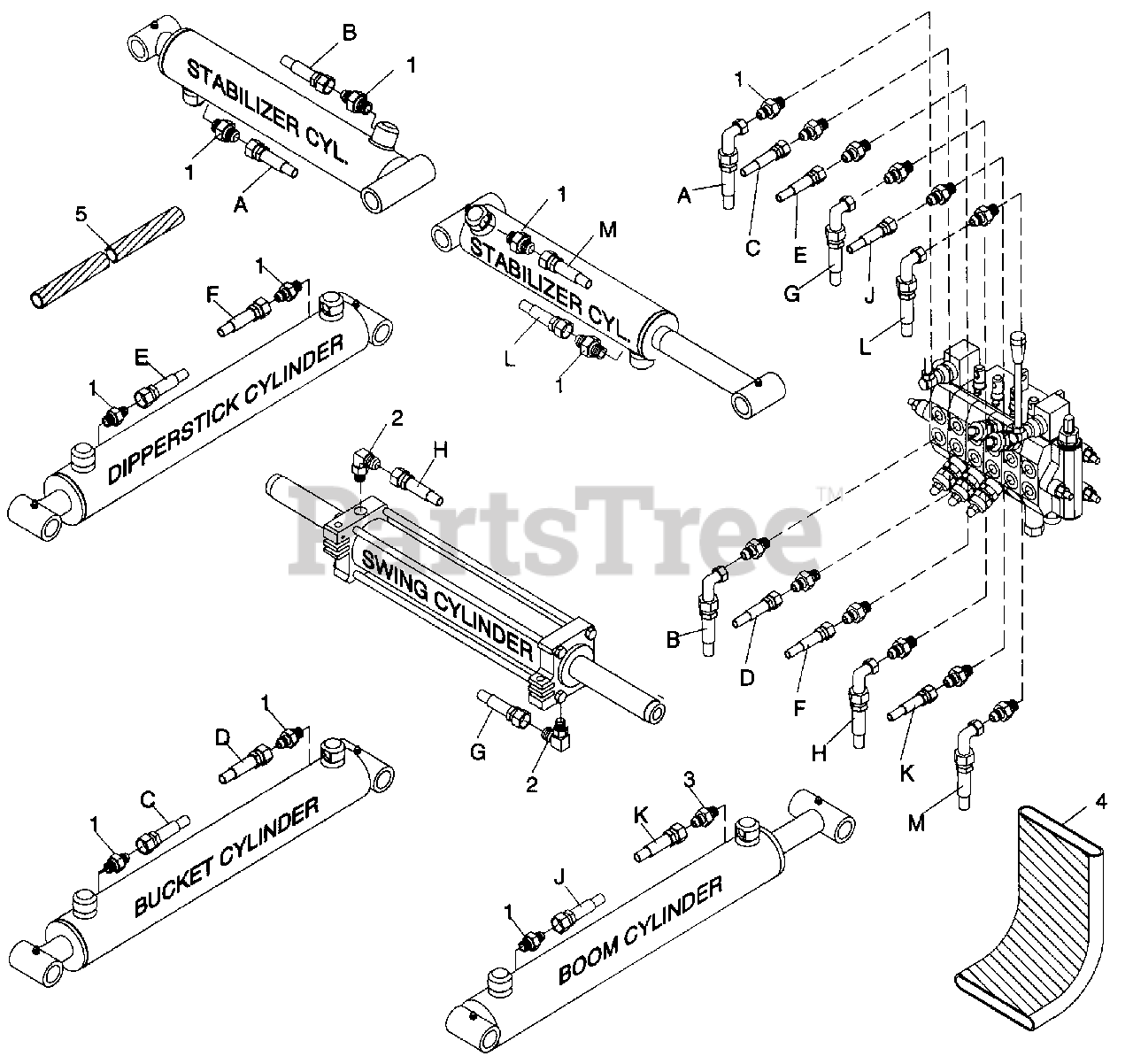

408 (590-408-100) - Cub Cadet Backhoe att Hoses & Fittings Parts Diagram

Backhoe

Hoses & Fittings Parts Diagram

  • Title

1

Cub Cadet WM-62367

9/16 - 18 To O-Ring connector

$

$

Not available

2

Cub Cadet WM-63558

9/16 x 9/16 Swivel elbow

$

$

Not available

3

Cub Cadet WM-37508

9/16 JIC M x 9/16 SAE M Adapter with 3/32 restrictor

$

$

Not available

4

Cub Cadet WM-37864

4" DIA x 34" Sleeve

$

$

Not available

5

Cub Cadet WM-34988

1" DIA x 15" Sleeve

$

$

Not available

A

Cub Cadet WM-37860

Hose-1/4 x 9/16 JICF x 9/16 JICF x 45

$

$

Not available

B

Cub Cadet WM-37860

Hose-1/4 x 9/16 JICF x 9/16 JICF x 45

$

$

Not available

C

Cub Cadet WM-37862

Hose-5/16 x 9/16 JICF x 9/16 JICF x 107

$

$

Not available

D

Cub Cadet WM-37862

Hose-5/16 x 9/16 JICF x 9/16 JICF x 107

$

$

Not available

E

Cub Cadet WM-37861

Hose-5/16 x 9/16 JICF x 9/16 JICF x 82

$96.99

$

Usually ships in 3-6 days

0

F

Cub Cadet WM-37861

Hose-5/16 x 9/16 JICF x 9/16 JICF x 82

$96.99

$

Usually ships in 3-6 days

0

G

Cub Cadet WM-37860

Hose-1/4 x 9/16 JICF x 9/16 JICF x 45

$

$

Not available

H

Cub Cadet WM-37860

Hose-1/4 x 9/16 JICF x 9/16 JICF x 45

$

$

Not available

J

Cub Cadet WM-37861

Hose-5/16 x 9/16 JICF x 9/16 JICF x 82

$96.99

$

Usually ships in 3-6 days

0

K

Cub Cadet WM-37861

Hose-5/16 x 9/16 JICF x 9/16 JICF x 82

$96.99

$

Usually ships in 3-6 days

0

L

Cub Cadet WM-37860

Hose-1/4 x 9/16 JICF x 9/16 JICF x 45

$

$

Not available

M

Cub Cadet WM-37860

Hose-1/4 x 9/16 JICF x 9/16 JICF x 45

$

$

Not available
