40800 (7173-H) - Gravely Lawn Tractor, 17hp Kohler, Hydro POWER TAKE OFF (PTO) - REAR Parts Diagram

Lawn Tractor, 17hp Kohler, Hydro

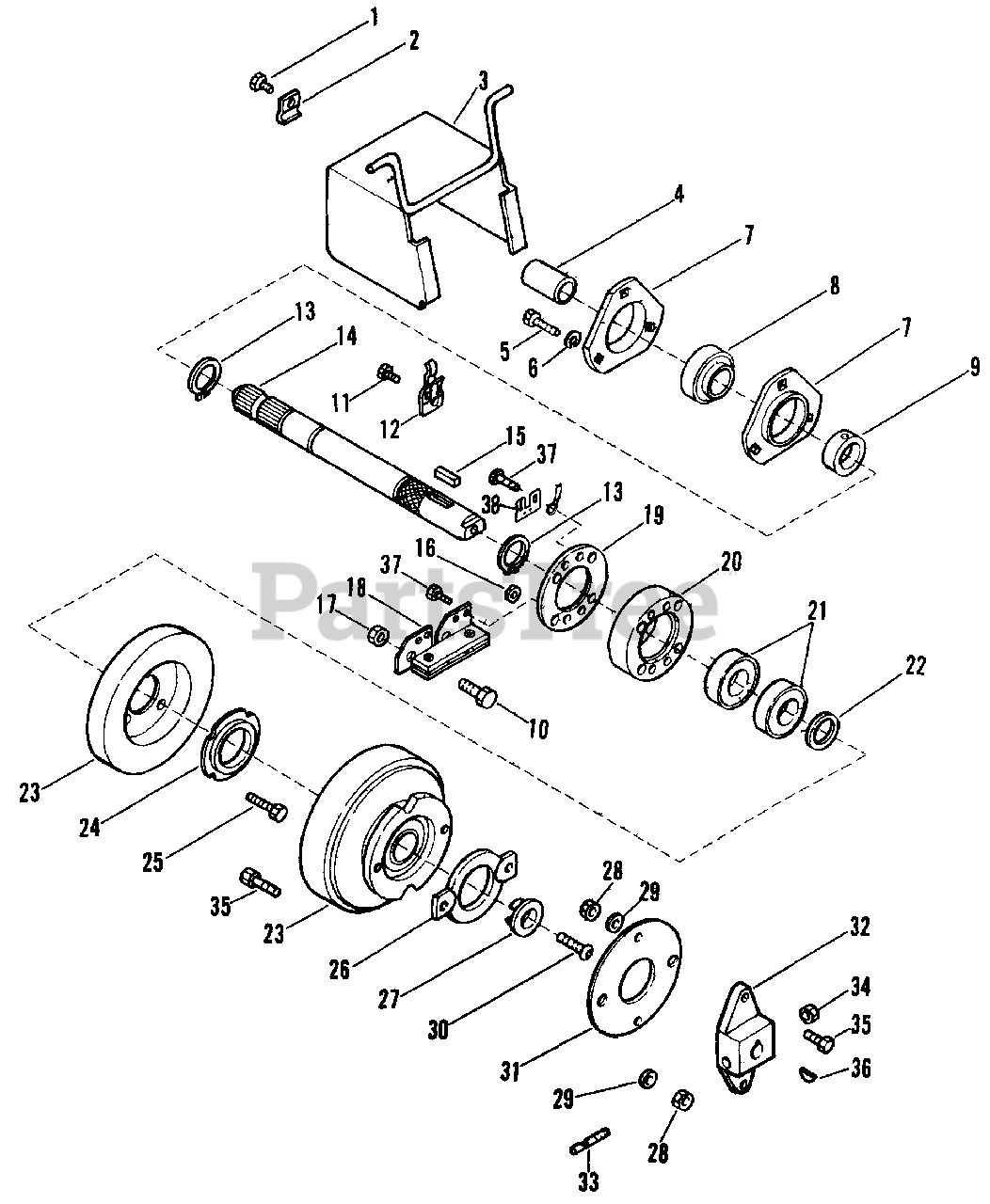

POWER TAKE OFF (PTO) - REAR Parts Diagram

  • Title

1

Gravely 039430

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 039431

CLIP
(Superseded to 03016400)

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 039432

PTO SHIELD
(Superseded to 03016300)

$

$

Not available

4

Gravely 039163

SHAFT COVER
(Superseded to 07506000)

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 120379

WSHR-LK .313 SP
(Superseded to 06304800)

$

$

Not available

7

Gravely 039433

BEARING FLANGE
(Superseded to 03102000)

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 039166

BRG/W COLLAR 1.0 X 2.047 X.844
(Superseded to 05426200)

$50.99

$

In Stock, Qty 12

0

9

Gravely 039164

BRG/W COLLAR 1.0 X 2.047 X.844
(Superseded to 05426200)

$50.99

$

In Stock, Qty 12

0

10

Gravely 180083

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

11

Gravely 038836

SCR-TAP 10-24X.375 HWH YZ TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 039435

SNAP FASTENER
(Superseded to 03130500)

$

$

Not available

13

Gravely 017980

RG-RTNG-EXT 1.00X.078
(Superseded to 05707300)

$3.49

$

In Stock, Qty 9

0

14

Gravely 039436

SHAFT
(Superseded to 03036700)

$419.99

$

Usually ships in 4-12 days

0

15

Gravely 009213

Key, Square .25 x 1.00
(Superseded to 00966045)

$3.49

$

In Stock, Qty 14

0

16

Gravely 039437

NUT-LK TOP 10-24 PL
(Superseded to 06504100)

$

$

Not available

17

Gravely 190139

NUT-LK .312-24 W/INSR
(Superseded to 06526500)

$

$

Not available

18a

Gravely 039438

TORQUE BRACKET
(Superseded to 03036300)

$

$

Not available

18b

Gravely 039439

LINK
(Superseded to 03036200)

$

$

Not available

18c

Gravely 039440

SPECIAL WASHER
(Superseded to 03015600)

$

$

Not available

18d

Gravely 039441

BLT-HEX 10-24X.75 PL GR2
(Superseded to 05920700)

$

$

Not available

18e

Gravely 039442

NUT-LK TOP 10-24 PL
(Superseded to 06504100)

$

$

Not available

19

Gravely 039443

RING
(Superseded to 03036500)

$

$

Not available

20

Gravely 039444

BEARING MOUNT
(Superseded to 03036400)

$

$

Not available

21

Gravely 036876

BRG-BALL 1.0X2.0X.56 (1641)
(Superseded to 05416000)

$16.99

$

In Stock, only 1 left!

0

22

Gravely 039445

WSHR-FL-STL 1.031X1.375X.055YZ
(Superseded to 06444900)

$

$

Not available

23

Gravely 039446

ELECTRIC CLUTCH
(Superseded to 03199000)

$

$

Not available

24

Gravely 039447

BEARING FLANGE
(Superseded to 03036600)

$

$

Not available

25

Gravely 039448

SCR-MCH 10-24X1.25 SL PAN YWZC
(Superseded to 06117500)

$

$

Not available

26

Gravely 039449

PILOT PLATE
(Superseded to 03015800)

$

$

Not available

27

Gravely 039450

RETAINER
(Superseded to 03015700)

$

$

Not available

28

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 446548

WSHR-FL-STL .375X.734X.065 PL
(Superseded to 06431100)

$

$

Not available

30

Gravely 039451

BLT-BTHD .38-16X1.25 GR5
(Superseded to 07006300)

$2.99

$

Usually ships in 4-12 days

0

31

Gravely 039452

SPACER COUPLING
(Superseded to 03199300)

$

$

Not available

32

Gravely 039453

COUPLING
(Superseded to 03198800)

$

$

Not available

33

Gravely 039454

LOCK STUD
(Superseded to 03013900)

$19.99

$

Usually ships in 4-12 days

0

34

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 180078

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.99

$

In Stock, only 2 left!

0

36

Gravely 106751

KEY-WDRF .188X.75X.313 SAE 9
(Superseded to 06600300)

$1.49

$

In Stock, Qty 13

0

37

Gravely 039455

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07413000)

$3.99

$

In Stock, Qty 5

0

38

Gravely 041173

CLUTCH WIRE MOUNTING CLIP ASS'
(Superseded to 53121900)

$

$

Not available

NS

Gravely 039659

REAR PTO DECAL - 3200 RPM
(Superseded to 07860000)

$

$

Not available
