40800 (7173-H) - Gravely Lawn Tractor, 17hp Kohler, Hydro STEERING GEAR Parts Diagram

Lawn Tractor, 17hp Kohler, Hydro

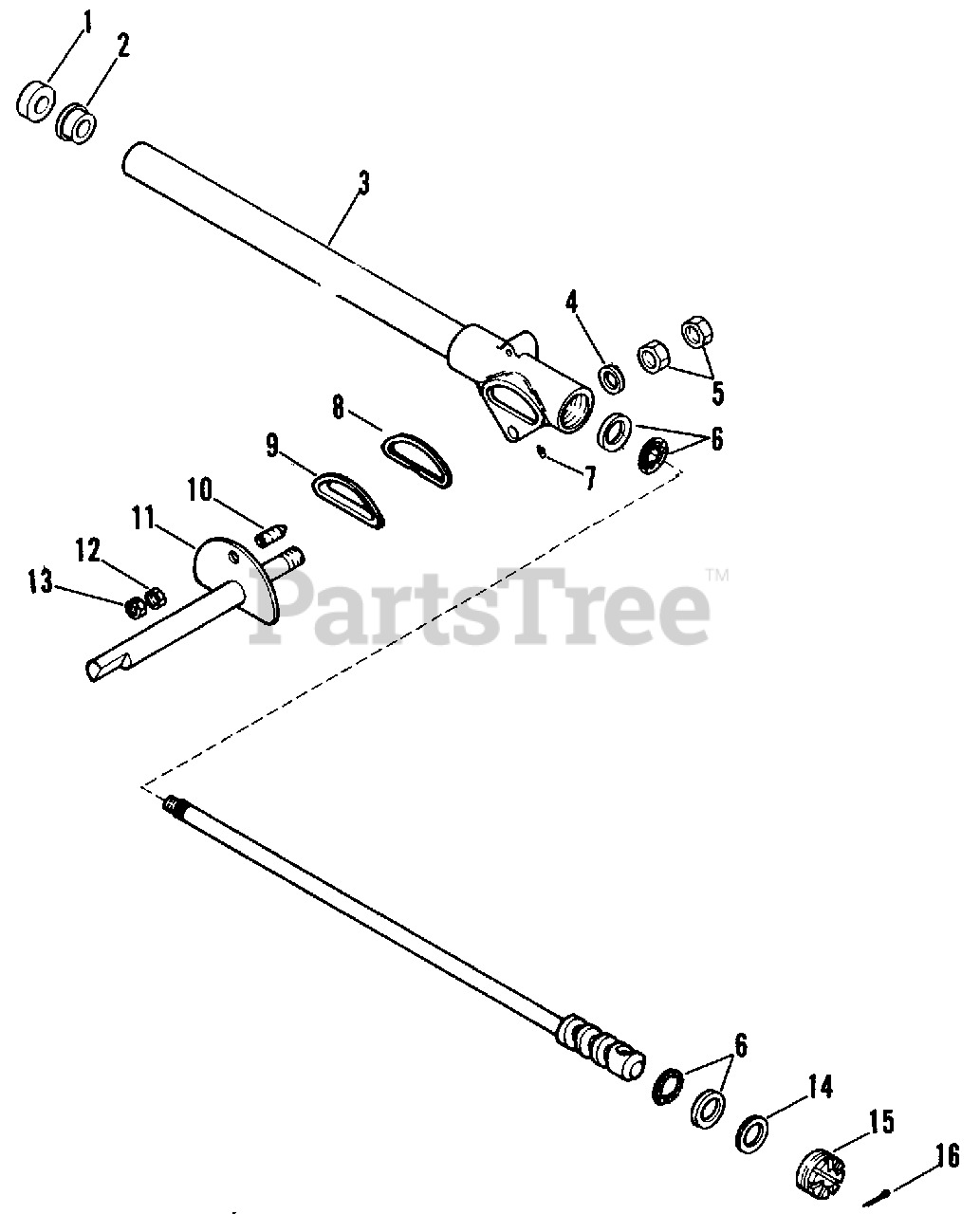

STEERING GEAR Parts Diagram

  • Title

1

Gravely 039662

DUST COVER
(Superseded to 07507800)

$

$

Not available

2

Gravely 039663

BSHG ROSS G#061013
(Superseded to 05509900)

$18.99

$

Usually ships in 4-12 days

0

3

Gravely 039664

HOUSING ASSY (SERV.)
(Superseded to 03080500)

$

$

Not available

4

Gravely 131018

WSHR,FL.938X1.750X.134
(Superseded to 21053300)

$

$

Not available

5

Gravely 219758

NUT-JAM .75-16 YWZC
(Superseded to 06539900)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 039665

BEARING KIT
(Superseded to 53104200)

$

$

Not available

7

Gravely 039666

HYDRAULIC DRIVE FITTING
(Superseded to 03169600)

$

$

Not available

8

Gravely 039667

SEAL
(Superseded to 03169900)

$

$

Not available

9

Gravely 039668

RETAINER - SEAL
(Superseded to 03169800)

$

$

Not available

10

Gravely 039669

STUD LEVER
(Superseded to 03169700)

$

$

Not available

11

Gravely 039670

STEERING SHAFT
(Superseded to 03004000)

$

$

Not available

12

Gravely 039671

NUT .562-18
(Superseded to 06515100)

$

$

Not available

13

Gravely 036509

NUT- .562-18
(Superseded to 06509600)

$

$

Not available

14

Gravely 039672

WSHR-BLVL 1.015X1.470X.044
(Superseded to 06415900)

$

$

Not available

15

Gravely 039673

PLUG-ADJUSTING
(Superseded to 03169500)

$

$

Not available

16

Gravely 137946

PIN-CTR .12X.50 EXTPSQCT YWZC
(Superseded to 06711800)

$

$

Not available

17

Gravely 039491

STEERING GEAR ASS'Y
(Superseded to 03080100)

$

$

Not available
