40801 - Gravely Grass Bagger for Pro Series Mower PRO MOWER GRASS CATCHER Parts Diagram

Grass Bagger for Pro Series Mower

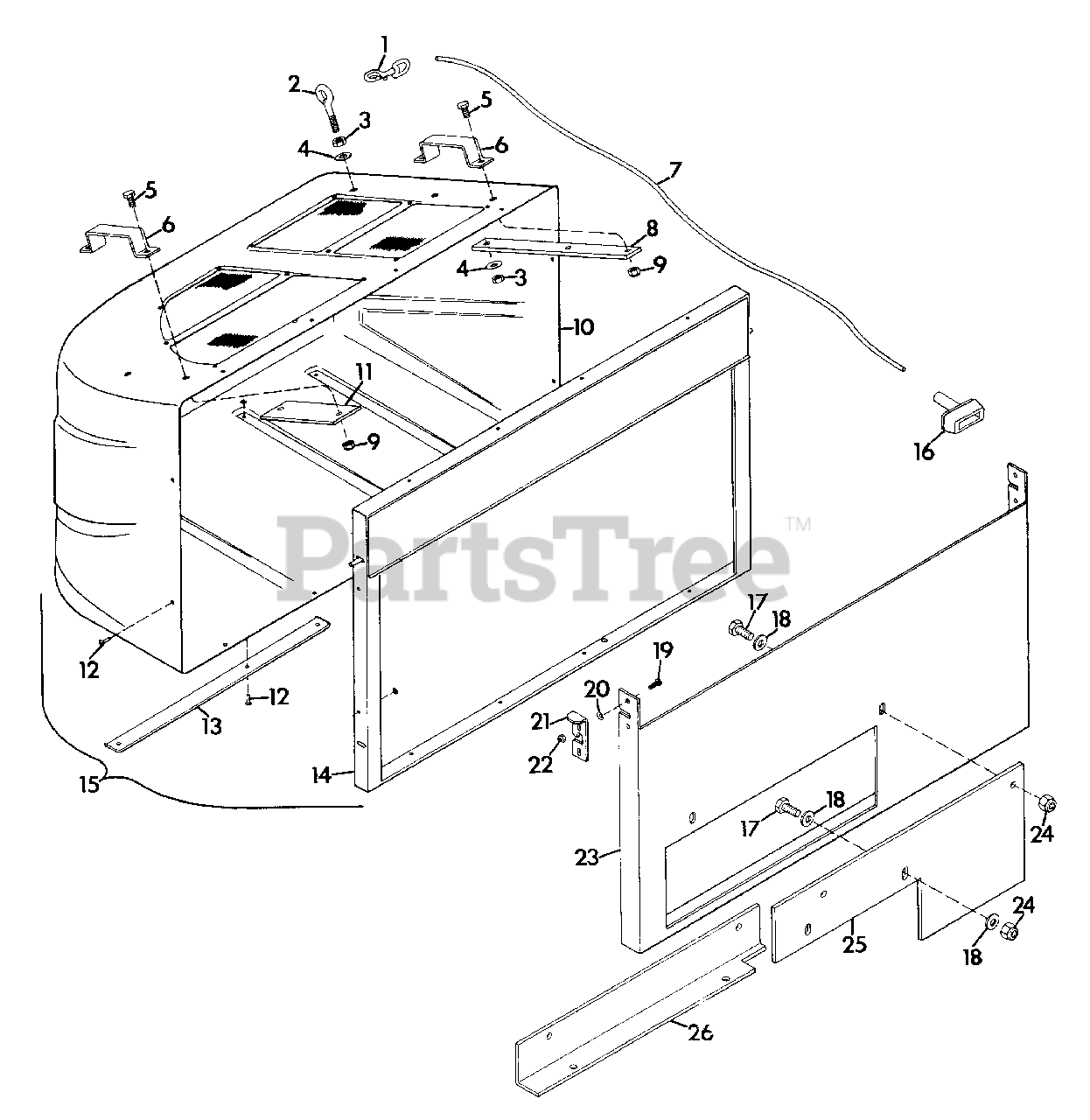

PRO MOWER GRASS CATCHER Parts Diagram

  • Title

1

Gravely 035095

SNAP, SWIVEL

$

$

Not available

2

Gravely 035094

BOLT, EYE
(Superseded to 07014800)

$

$

Not available

3

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

4

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

5

Gravely 180022

BOLT, HEX 1/4-20X1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

6

Gravely 040517

HANDLE, HOPPER
(Superseded to 20670600)

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 019212

ROPE, #6X66" LONG
(Superseded to 07520400)

$

$

Not available

8

Gravely 040500

STRAP
(Superseded to 20670400)

$

$

Not available

9

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

10

Gravely 040808

HOPPER W/SCREENS, CAUTION DECAL

$

$

Not available

11

Gravely 040518

PLATE, BRACE
(Superseded to 20670700)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 040524

RIVET, POP .125X.357

$

$

Not available

13

Gravely 040519

PLATE, SKID
(Superseded to 20670800)

$

$

Not available

14

Gravely 040520

FRAME, HOPPER
(Superseded to 20670900)

$

$

Not available

15

Gravely 040809

HOPPER/FRAME, COMPLETE
(Superseded to 20679500)

$

$

Not available

16

Gravely 022276

HANDLE
(Superseded to 07521300)

$

$

Not available

17

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 436733

SCREW
(Superseded to 21070200)

$

$

Not available

20

Gravely 040523

1/4" SPRING WASHER
(Superseded to 20671200)

$

$

Not available

21

Gravely 040522

LATCH, CATCHER LEFT
(Superseded to 20671100)

$

$

Not available

NS

Gravely 040521

LATCH, CATCHER RIGHT
(Superseded to 20671000)

$

$

Not available

22

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

23

Gravely 040499

SUPPORT, GRASS CATCHER
(Superseded to 20670300)

$

$

Not available

24

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

25

Gravely 040502

ADAPTOR, PRO 40
(Superseded to 21254300)

$

$

Not available

26

Gravely 040503

ADAPTOR, PRO 36
(Superseded to 08864600)

$

$

Not available
