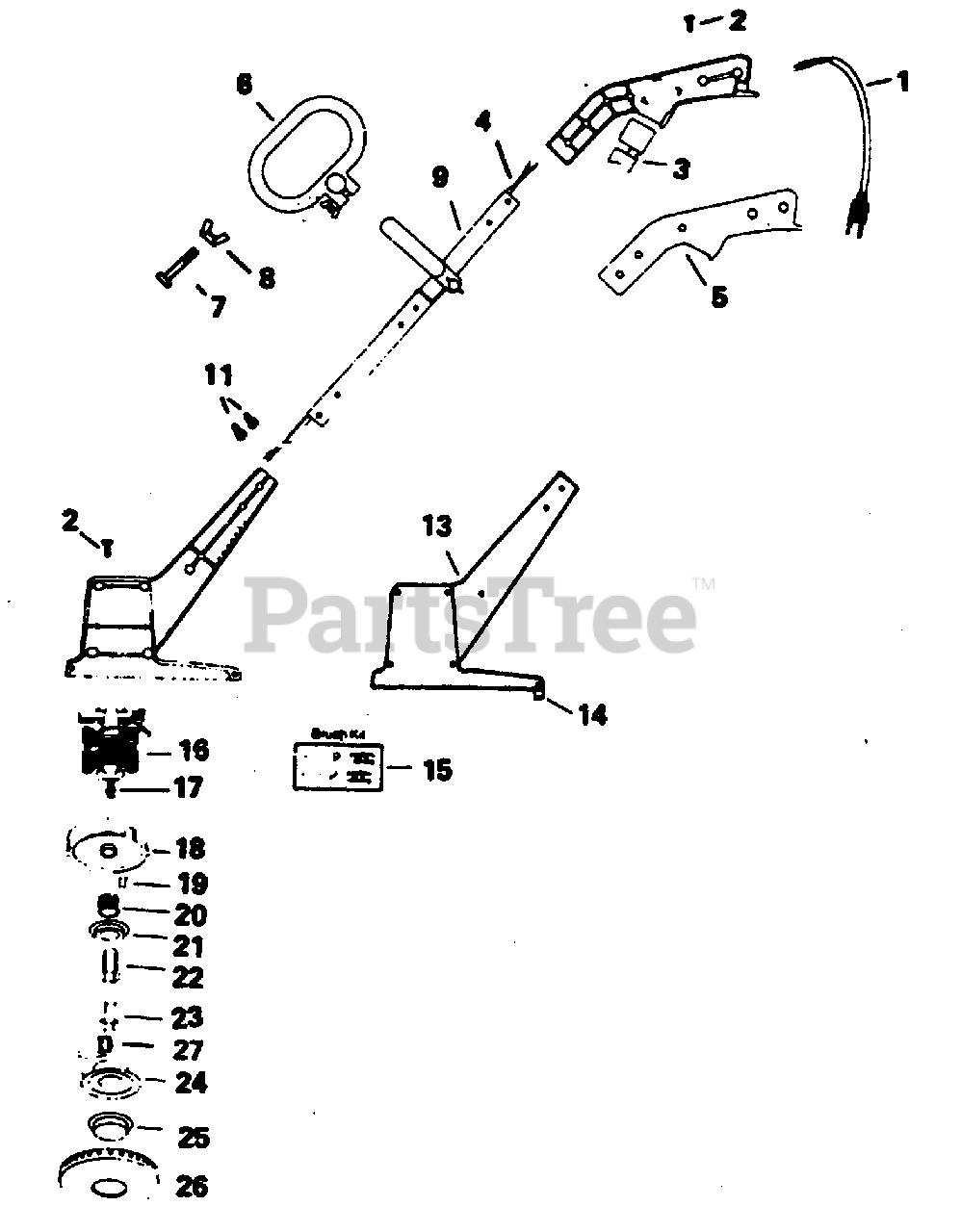

409 - Weed Eater String Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

String Trimmer, Electric

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530090866

POWER SUPPLY CORD

$

$

Not available

2

Poulan 530090827

SCREW

$

$

Not available

3

Poulan 530090824

SWITCH

$

$

Not available

4

Poulan 530093614

HARNESS

$

$

Not available

5

Poulan 530093618

TRIGGER HANDLE SET

$

$

Not available

6

Poulan 530090884

ASSIST HANDLE

$

$

Not available

7

Poulan 530093617

BOLT (1-1/2")

$

$

Not available

8

Poulan 530092049

WING NUT

$

$

Not available

9

Poulan 530093615

TUBE

$

$

Not available

11

Poulan 530090876

CONNECTOR

$

$

Not available

13

Poulan 530092629

MOTOR HOUSING SET

$

$

Not available

14

Poulan 530090874

TAIL INTERFERENCE BLADE

$

$

Not available

15

Poulan 530090891

BRUSH KIT

$

$

Not available

16

Poulan 530090892

MOTOR

$

$

Not available

17

Poulan 530090878

WASHER, THRUST

$

$

Not available

18

Poulan 530093195

HUB

$

$

Not available

19

Poulan 530093009

LINE SAVER

$

$

Not available

20

Poulan 530093015

COIL SPRING

$

$

Not available

21

Poulan 530093014

COIL SPRING ADAPTOR

$

$

Not available

22

Poulan 530092632

DRIVE GEAR

$

$

Not available

23

Poulan 530093013

DRIVE GEAR INSERT

$

$

Not available

24

Poulan 952701521

SPOOL WOUND

$

$

Not available

25

Poulan 530092635

RELEASE BUTTON

$

$

Not available

26

Poulan 530092636

COVER

$

$

Not available

27

Poulan 530093196

DRIVE ADAPTOR INSERT

$

$

Not available
