409942 - Electrolux/AYP Walk-Behind Mower (1996) ROTARY LAWN MOWER Parts Diagram

Walk-Behind Mower

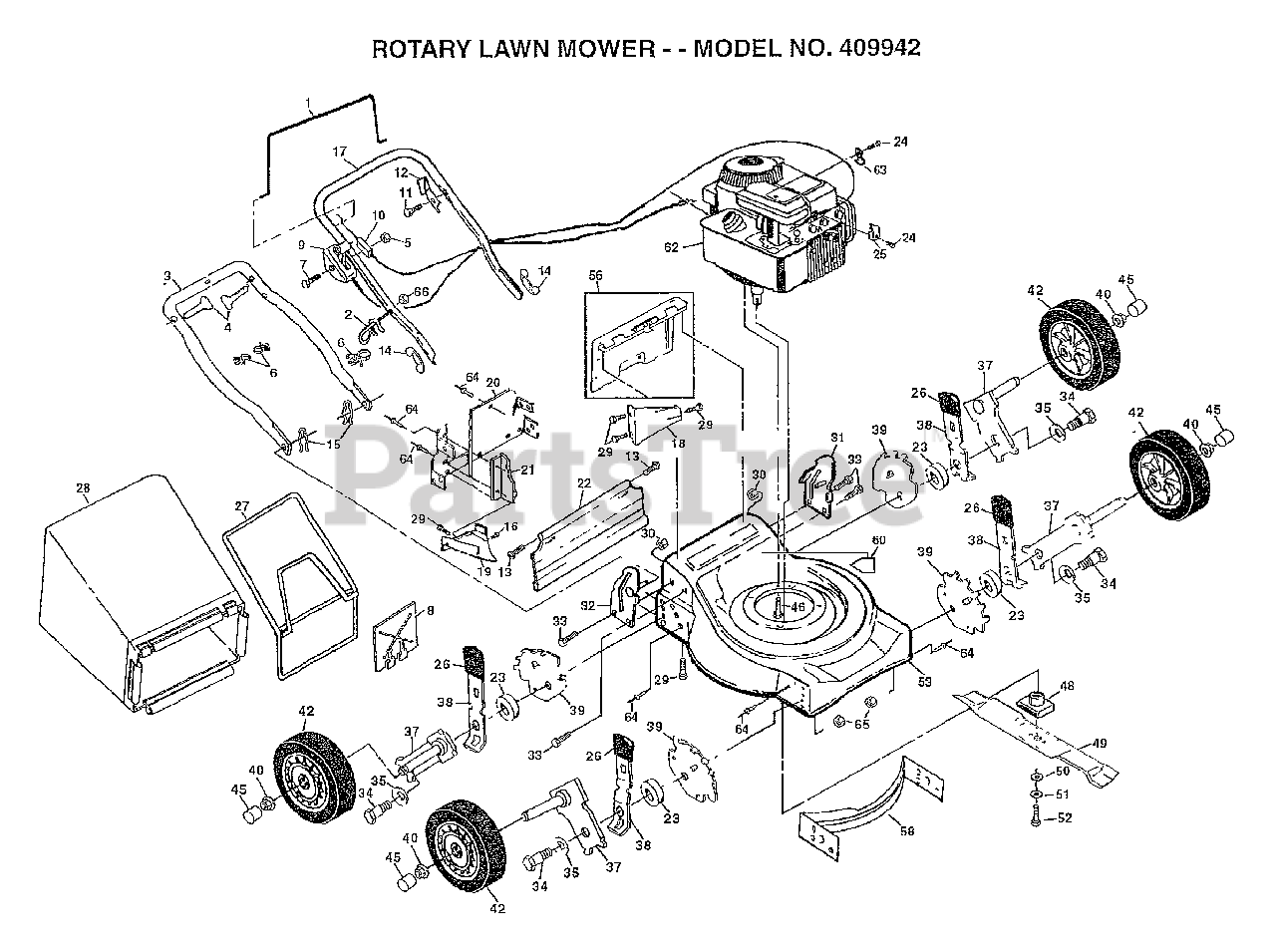

ROTARY LAWN MOWER Parts Diagram

  • Title

1

Electrolux/AYP 86902

CONTROL BAR PM
(Superseded to 532086902)

$

$

Not available

2

Electrolux/AYP 132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 8

0

3

Electrolux/AYP 151516X479

LOWER HANDLE

$

$

Not available

4

Electrolux/AYP 131959

BOLT.HANDLE.LM
(Superseded to 532183724)

$

$

Not available

5

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

6

Electrolux/AYP 151517

SUB= 7192J
(Superseded to 532007192)

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 144929

SCREW.HXHD.WASH.
(Superseded to 532183365)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 133169X479

MULCHER PLATE
(Superseded to 532166650)

$17.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 851462

CONTROL THROTTLE
(Superseded to 583120101)

$15.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 130861

"CABLE,ENG ZONE CO"
(Superseded to 532130861)

$12.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 850733X004

"BRKT,UPSTOP"
(Superseded to 532850733)

$7.49

$

In Stock, only 2 left!

0

13

Electrolux/AYP 88652

HINGE SCREW
(Superseded to 532088652)

$7.49

$

In Stock, only 3 left!

0

14

Electrolux/AYP 128638

"NUT,WING PM"
(Superseded to 532128638)

$7.49

$

In Stock, Qty 10

0

15

Electrolux/AYP 51793

HAIRPIN COTTER
(Superseded to 532051793)

$7.49

$

In Stock, only 1 left!

0

16

Electrolux/AYP 150050

SCREW.HXTAP.10-24
(Superseded to 532150050)

$4.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 132649X479

SUB= 160223X479

$

$

Not available

18

Electrolux/AYP 700063X479

REAR BAFFLE
(Superseded to 532125035)

$9.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 133188X479

DISCHARGE GUARD

$

$

Not available

20

Electrolux/AYP 700356X479

PLATE.BACK.20RD

$

$

Not available

21

Electrolux/AYP 700363X479

BAFFLE.SIDE

$

$

Not available

22

Electrolux/AYP 140657

SKIRT.PUSH.20RD
(Superseded to 532188984)

$

$

Not available

23

Electrolux/AYP 146630

SPACER.HEIGHT.ADJ
(Superseded to 532401629)

$6.49

$

In Stock, Qty 5

0

24

Electrolux/AYP 83816

SCREW PM
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 213146

CABLE CLAMP

$

$

Not available

26

Electrolux/AYP 87877

KNOB PM
(Superseded to 532087877)

$6.49

$

In Stock, only 3 left!

0

27

Electrolux/AYP 149555

FRAME.CATCHER.2.5
(Superseded to 532149555)

$

$

Not available

28

Electrolux/AYP 149688

GRASSBAG.250B1.BL

$

$

Not available

29

Electrolux/AYP 54583

SCREW
(Superseded to 532054583)

$

$

Not available

30

Electrolux/AYP 54178

SUB= 73220600

$

$

Not available

31

Electrolux/AYP 151589X479

BRACKET.HDL.LH.

$

$

Not available

32

Electrolux/AYP 151588X479

BRACKET.HDL.RH.

$

$

Not available

33

Electrolux/AYP 150078

SCREW.HXWS.5/16
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

34

Electrolux/AYP 151611

BOLT.SHLD.W/PATCH
(Superseded to 584447901)

$2.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 62335

"WASHER, BELLEVIL."
(Superseded to 532062335)

$9.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 145935X004

ARM.AXLE.ASM.BZP.
(Superseded to 532145935)

$

$

Not available

38

Electrolux/AYP 700331X004

SPRING SELECTOR
(Superseded to 532401621)

$4.99

$

In Stock, Qty 11

0

39

Electrolux/AYP 700325X007

BRACKET.ADJ.9POS.
(Superseded to 532700325)

$4.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 83923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Electrolux/AYP 851070

WHL & TIRE

$6.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 800090

HUB CAP-PLASTIC
(Superseded to 584458901)

$18.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 150406

BOLT.ENG.3/8-16
(Superseded to 532150406)

$7.49

$

In Stock, Qty 10

0

48

Electrolux/AYP 850977

BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

49

Electrolux/AYP 145106

BLADE.20.MULCH.AY
(Superseded to 532145106)

$14.99

$

In Stock, Qty 8

0

50

Electrolux/AYP 851074

"WASHER,HARDEN"
(Superseded to 532851074)

$4.99

$

In Stock, Qty 20+

0

51

Electrolux/AYP 850263

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 851084

SCREW
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 152593

HOUSING ASSY

$

$

Not available

56

Electrolux/AYP 147613

KIT.DOOR.RR.20STL

$

$

Not available

58

Electrolux/AYP 132198X479

SUB= 144961

$

$

Not available

60

Electrolux/AYP 141846

DECAL DANGER E/S

$

$

Not available

62

REFER TO IMAGE

$

$

Not available

63

Electrolux/AYP 87930

GUIDE CLIP PM
(Superseded to 532087930)

$5.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 128415

BLIND RIVET
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 54178

SUB= 73220600

$

$

Not available

66

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

Electrolux/AYP 145655

MANUAL.OP.GEN.PUS

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 155893

REPLACEMENT PARTS MANUAL

$

$

Not available

Electrolux/AYP MA36

CLIPPING DEFL

$47.99

$

Usually ships in 3-10 days

0
