40N777-0028-B1 - Briggs & Stratton Vertical Engine Controls Group Parts Diagram

Vertical Engine

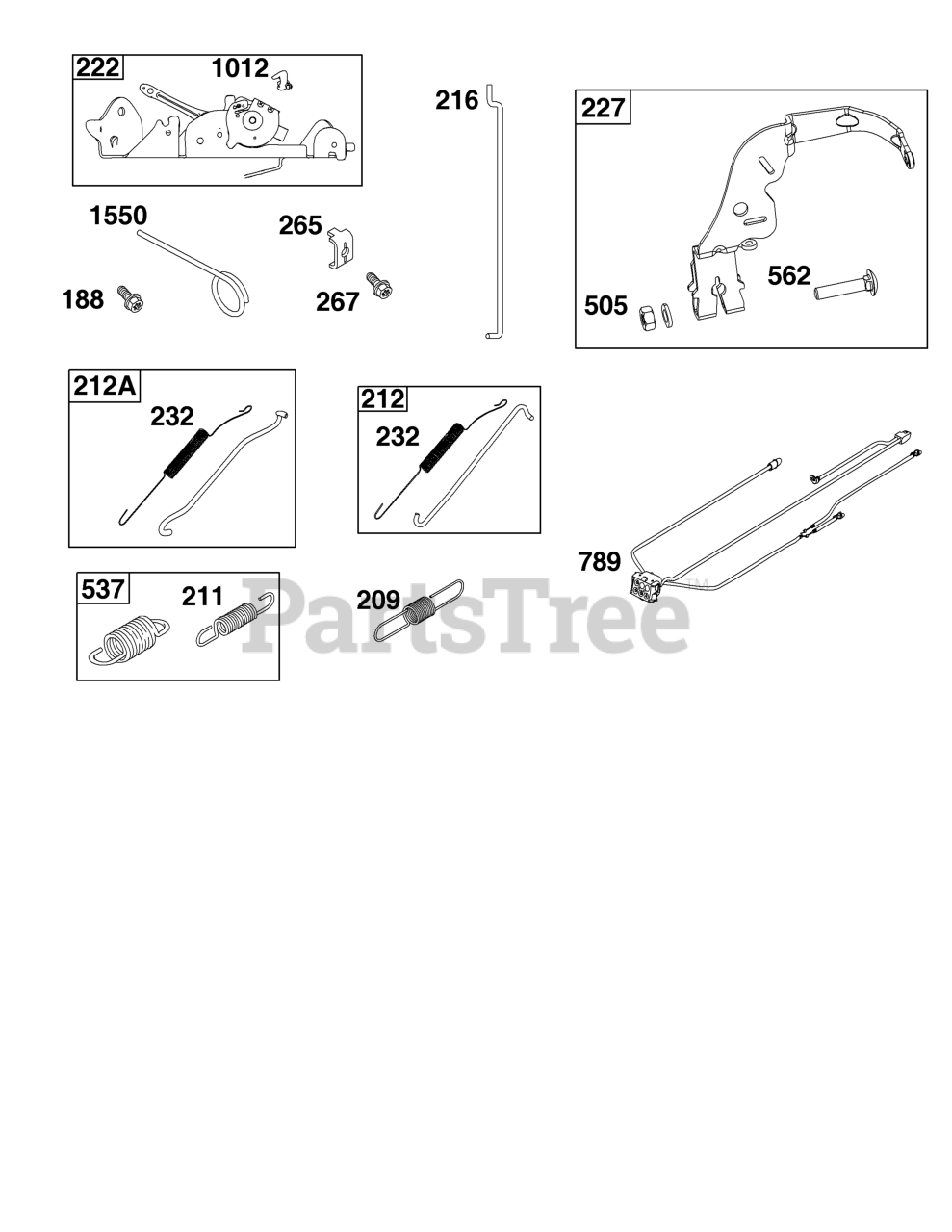

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 691108

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

209

Briggs & Stratton 799169

SPRING, Governor

Note: Used After Code Date 18080500

$7.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 593724

SPRING, Governed Idle

$4.49

$

In Stock, only 1 left!

0

212

Briggs & Stratton 597778

LINK, Throttle

Note: Used After Code Date 18080500

$8.99

$

In Stock, only 2 left!

0

212A

Briggs & Stratton 597429

LINK, Throttle

Note: Used Before Code Date 18080600

$7.49

$

In Stock, only 2 left!

0

216

Briggs & Stratton 796229

LINK, Choke

$9.49

$

In Stock, only 4 left!

0

222

Briggs & Stratton 592555

BRACKET, Control

$43.99

$

In Stock, only 1 left!

0

227

Briggs & Stratton 798856

LEVER, Governor Control

Note: Used Before Code Date 18080600

$23.99

$

In Stock, only 1 left!

0

227

Briggs & Stratton 593857

LEVER, Governor Control

Note: Used After Code Date 18080500

$39.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 597550

SPRING, Governor Link

$9.99

$

In Stock, only 2 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

505

Briggs & Stratton 691029

NUT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 594911

KIT, Governor/Idle Spring

Note: Used Before Code Date 18080600

$19.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 690311

BOLT

Note: (Governor Control Lever)

$4.49

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 591392

HARNESS, Wiring

$35.99

$

In Stock, only 1 left!

0

1012

Briggs & Stratton 592556

RETAINER, Link

$5.99

$

In Stock, Qty 6

0

1550

Briggs & Stratton 595801

PIN, Speed Setting

$4.49

$

In Stock, only 1 left!

0
